MA70L-BLMVFC (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

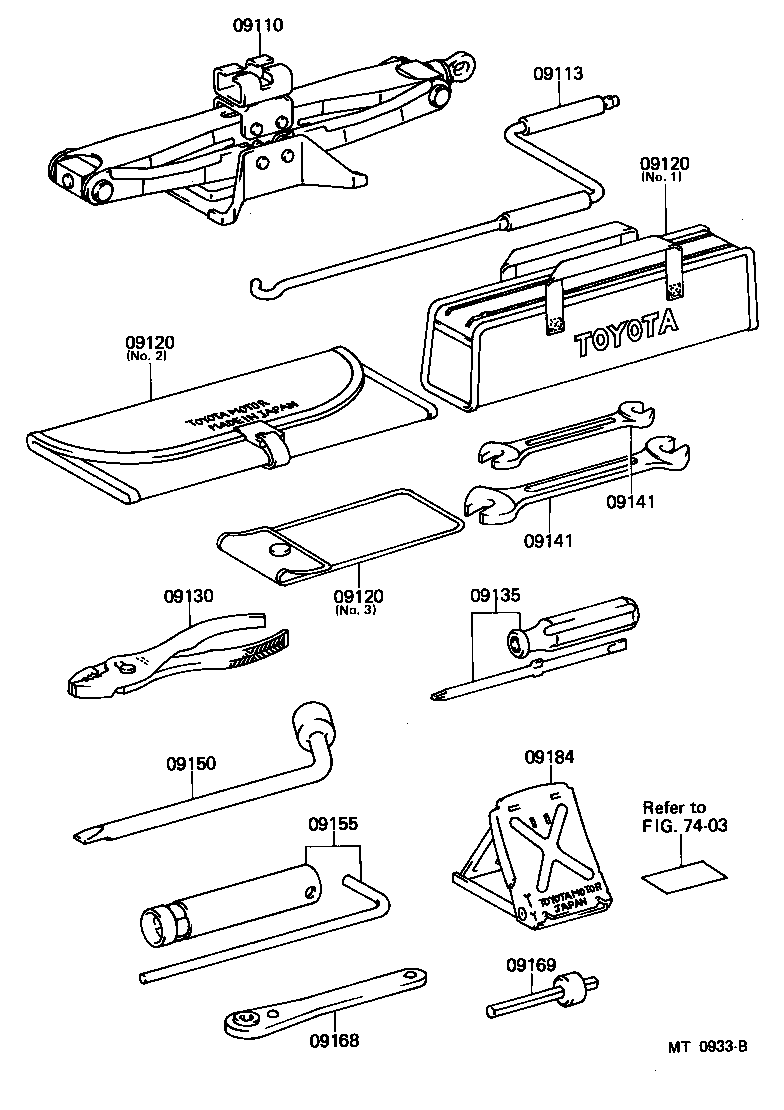

Click highlighted areas on diagram

diagram 09110 09113 09120 09120 09120 09130 09135 09141 09141 09150 09155 09168 09169 09184 7403
Part # Description Qty Price
09110 - JACK ASSY
09111-24030

MA70..EUR,GCC,GEN,SA

 1
09113 - HANDLE, JACK
09113-24020

MA70

 1
09120 - BAG, TOOL
09120-14020

MA70

NO.1

 1
09120-10030

MA70

NO.2

 1
09120 - BAG, TOOL
09120-14020

MA70

NO.1

 1
09120-10030

MA70

NO.2

 1
09120 - BAG, TOOL
09120-14020

MA70

NO.1

 1
09120-10030

MA70

NO.2

 1
09130 - PLIERS
99913-11500

MA70

 1
09135 - DRIVER, SCREW
99915-10700

MA70

 1
09141 - SPANNER
99914-10810

MA70

8 X 10,8X10

 1
99914-11214

MA70

12 X 14,12X14

 1
09141 - SPANNER
99914-10810

MA70

8 X 10,8X10

 1
99914-11214

MA70

12 X 14,12X14

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

MA70

 1
09155 - WRENCH, SPARK PLUG
09155-00100

MA70

 1
09184 - STOPPER, WHEEL
09184-00010

MA70

 1
Linked diagrams
7403
