MA70L-BLMVF (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

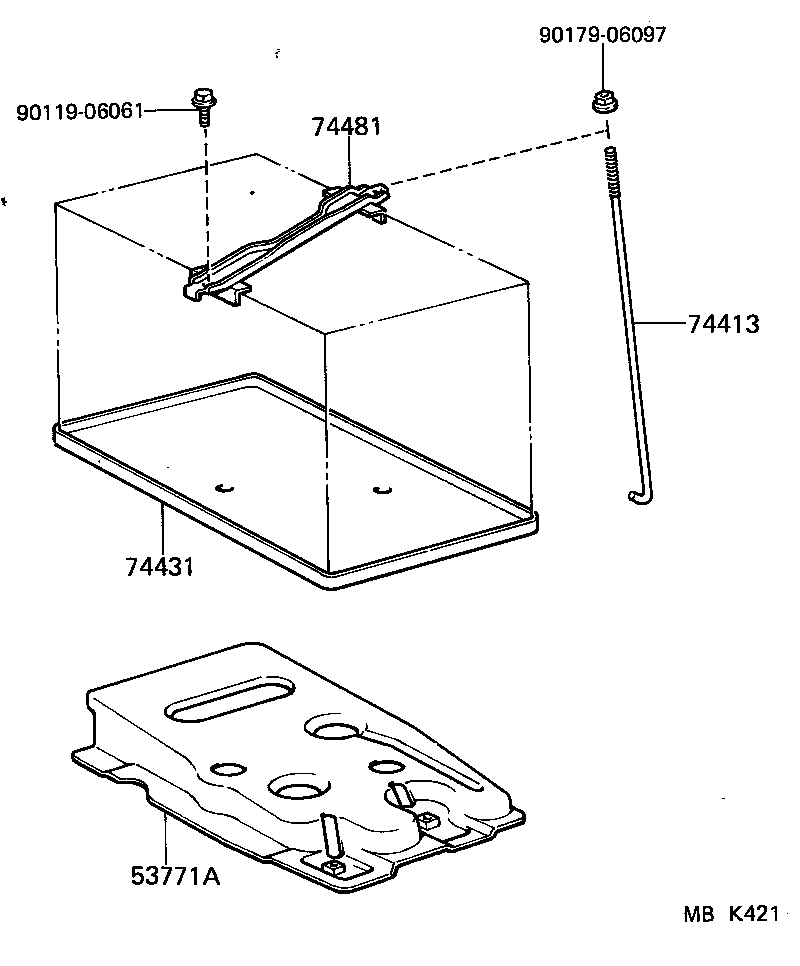

Click highlighted areas on diagram

diagram 53771A 74413 74431 74481 9011906061 9017906097
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-14120

MA70

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

MA70

 1
74431 - TRAY, BATTERY
74431-14030

MA70

55D23L-MF,50D20L-MF

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14310

MA70

 1
Common parts
90119-06061
90179-06097
