MA70L-BLMVF (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

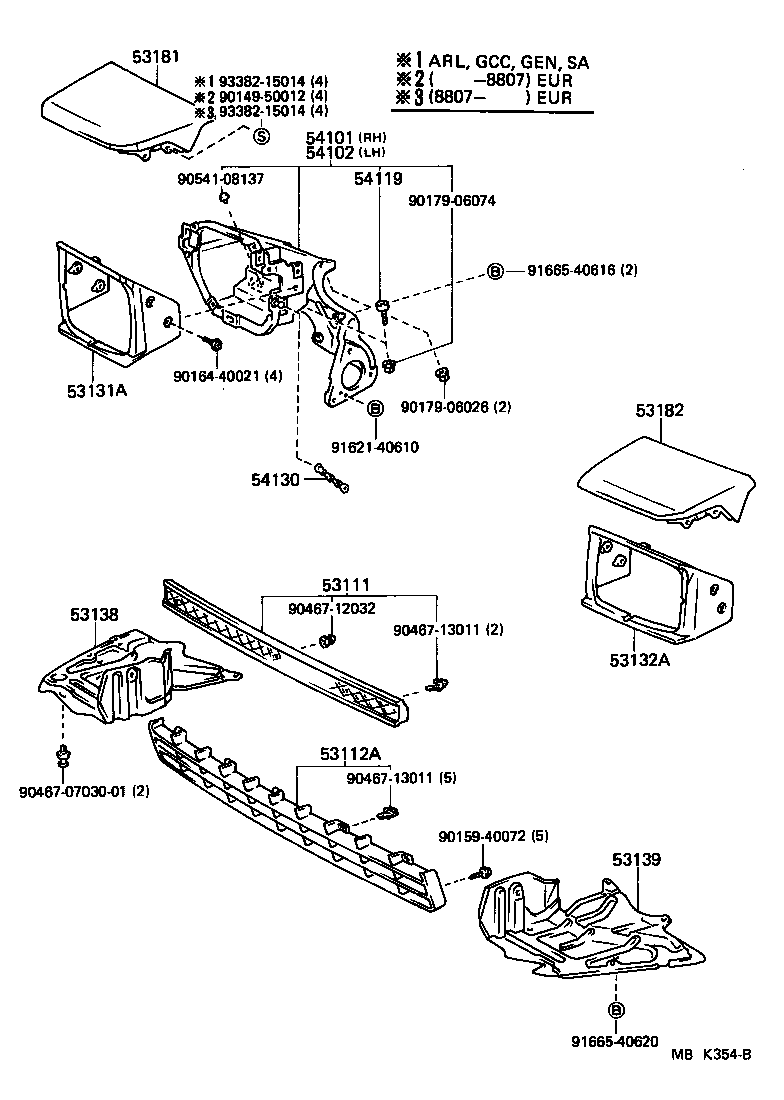

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-14390 |
MA70 |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53112-14050 |
MA70 |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-14340 |
MA70..ARL,GCC,GEN,SA |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-14340 |
MA70..ARL,GCC,GEN,SA |
1 | ||
| 53138 - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53138-14100 |
MA70..TWC |
1 | ||
| 53139 - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53139-14131 |
MA70 |
1 | ||
| 53139-14130 |
MA70 |
1 | ||
| 53181 - COVER, HEADLAMP, RH | ||||
| 53181-14040 |
MA70 |
1 | ||
| 53182 - COVER, HEADLAMP, LH | ||||
| 53182-14040 |
MA70 |
1 | ||
| 54101 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54110-14040 |
MA70 |
1 | ||
| 54102 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54120-14040 |
MA70 |
1 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14030 |
MA70 |
2 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-14040 |
MA70 |
2 | ||
| 54130-14030 |
MA70 |
2 | ||
| Common parts | ||||
| 90149-50012 | ||||
| 90159-40072 | ||||
| 90164-40021 | ||||
| 90179-06026 | ||||
| 90179-06074 | ||||
| 90467-0703001 | ||||
| 90467-12032 | ||||
| 90467-13011 | ||||
| 90541-08137 | ||||
| 91621-40610 | ||||
| 91665-40616 | ||||
| 91665-40620 | ||||
| 93382-15014 | ||||
