MA70L-BLMVF (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

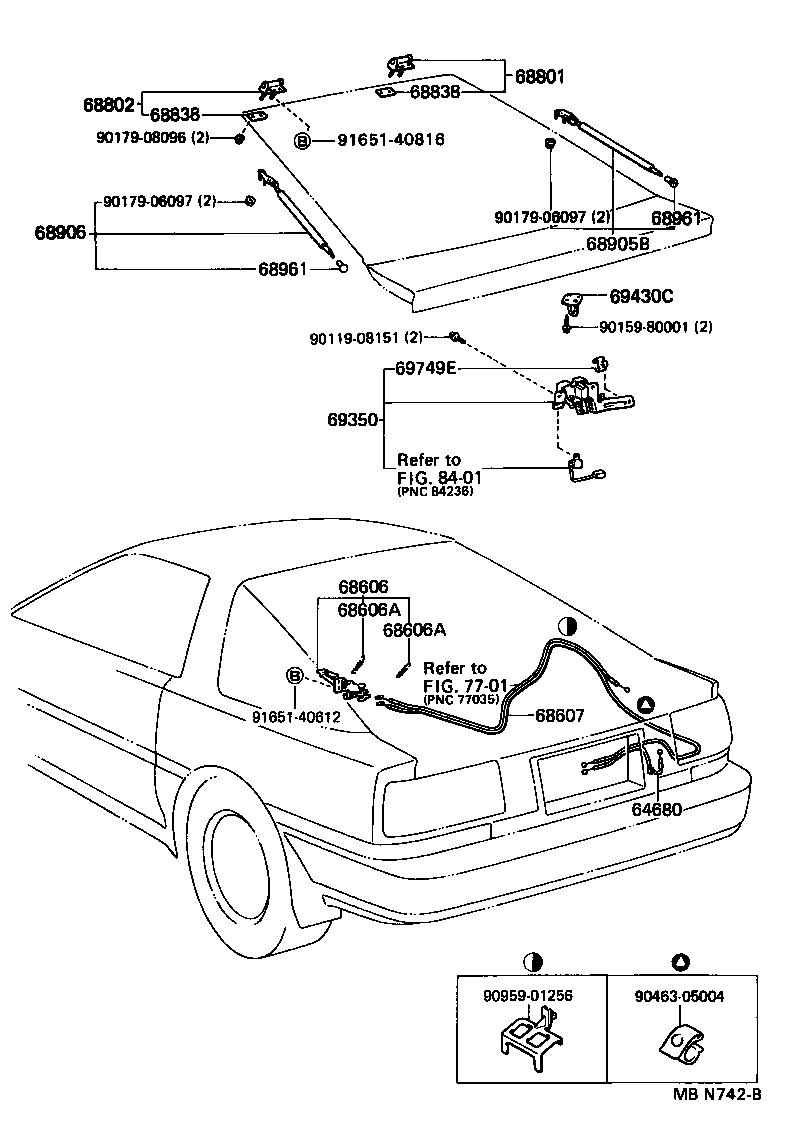

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64680 - CABLE ASSY, BACK DOOR LOCK CONTROL | ||||
| 64680-14080 |
MA70..GEN W(*LPL=SIDE) |
1 | ||
| 64680-14080 |
MA70..ARL,V |
1 | ||
| 64680-14020 |
MA70..C,EUR,GEN |
1 | ||
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-14060 |
MA70..LHD..TWT;MA70..LHD..(GEN,V) |
1 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
MA70..LHD..TWT;MA70..ARL,GEN,V |
2 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
MA70..LHD..TWT;MA70..ARL,GEN,V |
2 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-14220 |
MA70..LHD..TWT;MA70..LHD..(GEN,V) |
1 | ||
| 68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH | ||||
| 68801-14041 |
MA70 |
1 | ||
| 68801-14040 |
MA70 |
1 | ||
| 68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH | ||||
| 68801-14040 |
MA70 |
1 | ||
| 68801-14041 |
MA70 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-14031 |
MA70 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-14031 |
MA70 |
2 | ||
| 68905B - STAY SUB-ASSY, BACK DOOR, RH | ||||
| 68905-19036 |
MA70..C,GEN,V |
1 | ||
| 68905-19046 |
MA70..C,GEN W(REAR SPOILER) |
1 | ||
| 68905-19036 |
MA70 |
1 | ||
| 68905-19046 |
MA70..C,EUR,GEN,V W(REAR SPOILER) |
1 | ||
| 68905-19036 |
MA70..C,GEN |
1 | ||
| 68905-19046 |
MA70..ARL,V |
1 | ||
| 68906 - STAY SUB-ASSY, BACK DOOR, LH | ||||
| 68906-19016 |
MA70 |
1 | ||
| 68906-19016 |
MA70..C,GEN,V |
1 | ||
| 68906-19016 |
MA70..C,GEN |
1 | ||
| 68906-19026 |
MA70..C,EUR,GEN,V W(REAR SPOILER) |
1 | ||
| 68906-19026 |
MA70..ARL,V |
1 | ||
| 68906-19026 |
MA70..C,GEN W(REAR SPOILER) |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-14030 |
MA70 |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-14030 |
MA70 |
2 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-14131 |
MA70 |
1 | ||
| 69350-14130 |
MA70 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-14090 |
MA70 |
1 | ||
| 69749E - CLAMP, BACK DOOR LOCK LINK | ||||
| 69749-12030 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-08151 | ||||
| 90159-80001 | ||||
| 90179-06097 | ||||
| 90179-08096 | ||||
| 90463-05004 | ||||
| 90959-01256 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
