MA70L-BJPVZC (1987)
Toyota Supra
Production
Aug 1987
-
Aug 1988
Engine
7MGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )7MGTE..4FC

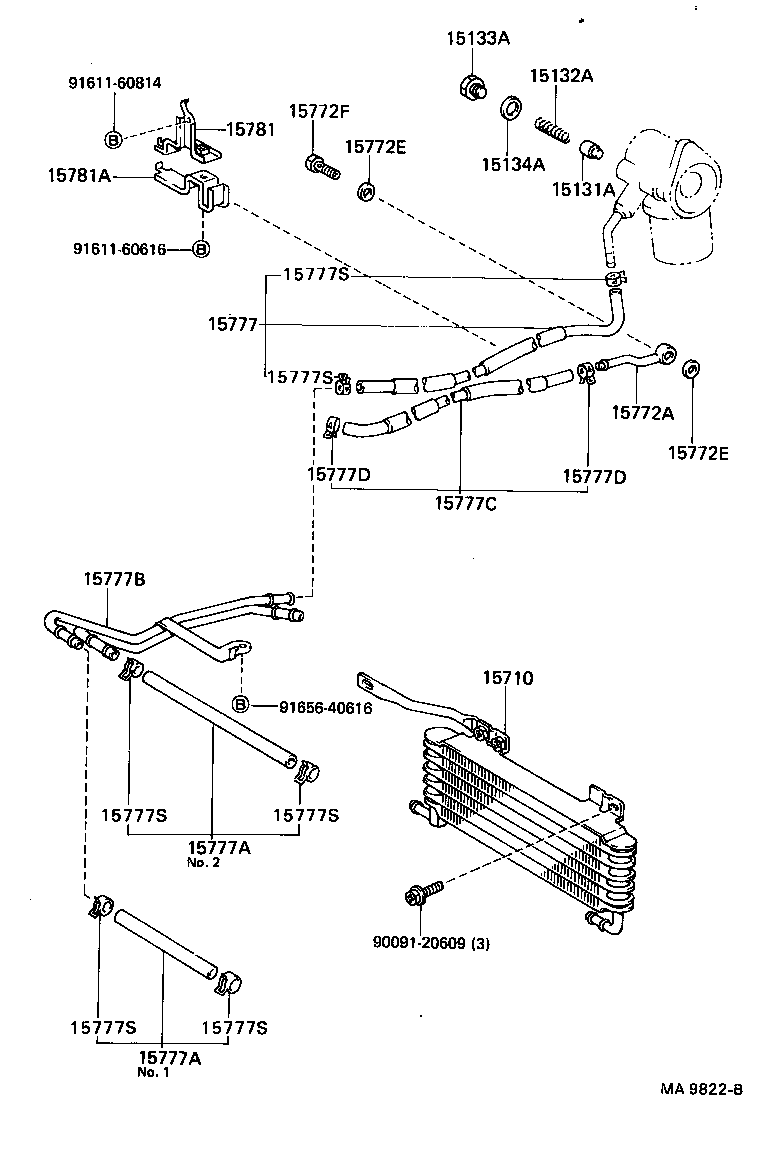

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15131A - VALVE, OIL COOLER RELIEF | ||||
| 15131-38030 |
7MGTE..MA70 |
1 | ||
| 15132A - SPRING, OIL COOLER RELIEF VALVE | ||||
| 15132-21010 |
7MGTE..MA70 |
1 | ||
| 15133A - PLUG, OIL COOLER RELIEF VALVE | ||||
| 15133-20010 |
7MGTE..MA70 |
1 | ||
| 15134A - GASKET, OIL COOLER RELIEF VALVE | ||||
| 15134-20010 |
7MGTE..MA70 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-42040 |
7MGTE..MA70..4FC |
1 | ||
| 15772A - UNION(FOR OIL PIPE) | ||||
| 90405-10019 |
7MG#..MA70 |
1 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-12018 |
7MG#..MA70 |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-12018 |
7MG#..MA70 |
2 | ||
| 15772F - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-12009 |
7MG#..MA70 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 15778-42020 |
7MGTE..MA70..4FC |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 15779-42020 |
7MGTE..MA70 NO.1 |
1 | ||
| 15779-42030 |
7MGTE..MA70..4FC NO.2 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 15779-42020 |
7MGTE..MA70 NO.1 |
1 | ||
| 15779-42030 |
7MGTE..MA70..4FC NO.2 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15707-42020 |
7MGTE..MA70 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15777-42020 |
7MG#..MA70 |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-16004 |
7MG#..MA70 |
2 | ||
| 90467-16015 |
7MG#..MA70 |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-16004 |
7MG#..MA70 |
2 | ||
| 90467-16015 |
7MG#..MA70 |
2 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15781 - BRACKET, OIL COOLER, NO.1 | ||||
| 15781-42030 |
7MG#..MA70 |
1 | ||
| 15781A - CLAMP(FOR OIL COOLER BRACKET NO.1) | ||||
| 90929-01160 |
7MG#..MA70 |
1 | ||
| Common parts | ||||
| 90091-20609 | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91656-40616 | ||||
