MA70L-BJPVFV (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

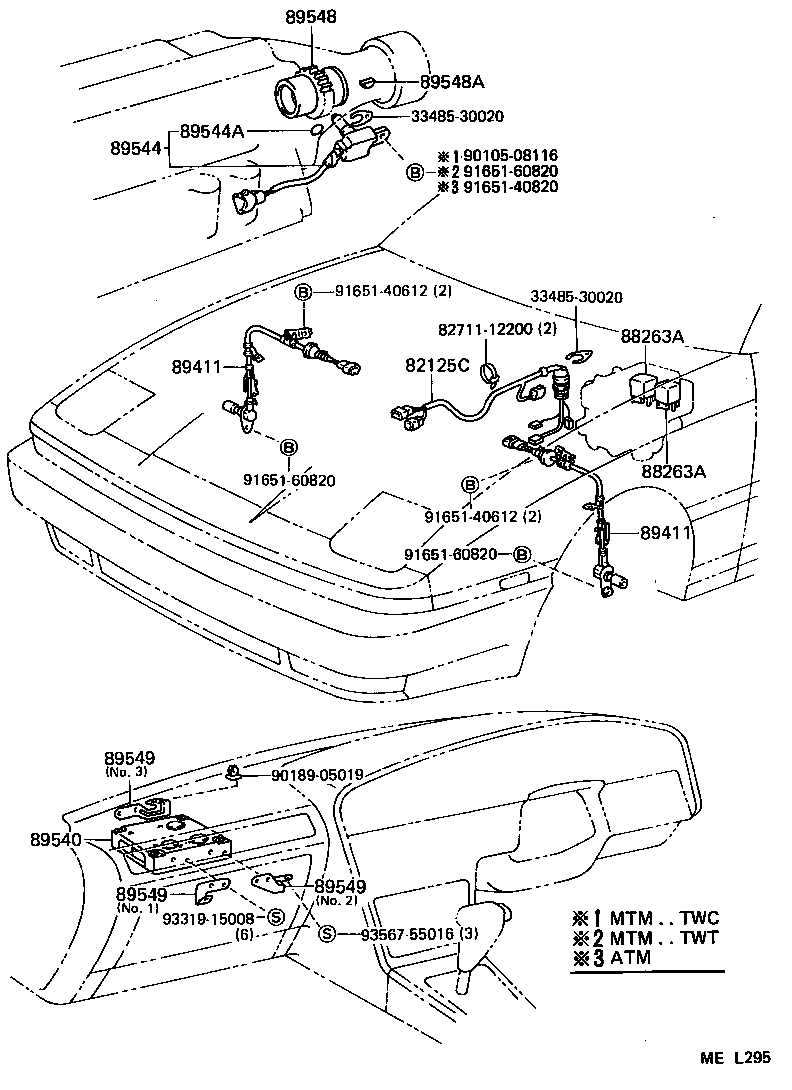

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125C - WIRE, TRANSMISSION | ||||
| 82125-14050 |
MA70..4FC..C |
1 | ||
| 82125-14050 |
MA70..4FC..(C,EUR) |
2 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
MA70..C,EUR MOTOR RELAY |
1 | ||
| 88263-14120 |
MA70..C,EUR SOLENOID |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
MA70..C,EUR MOTOR RELAY |
1 | ||
| 88263-14120 |
MA70..C,EUR SOLENOID |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-14010 |
MA70..C,EUR FR-LH |
1 | ||
| 89542-14010 |
MA70..C,EUR FR-RH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-14010 |
MA70..C,EUR FR-LH |
1 | ||
| 89542-14010 |
MA70..C,EUR FR-RH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-14020 |
MA70..C,EUR |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-14030 |
MA70..4FC..(C,EUR) |
1 | ||
| 89544A - RING, O (FOR SKID CONTROL SENSOR) | ||||
| 90301-11008 |
MA70..4FC..(C,EUR) |
1 | ||
| 89548 - ROTOR, SKID CONTROL SENSOR | ||||
| 89548-14010 |
MA70..4FC..(C,EUR) |
1 | ||
| 89548A - KEY, WOODRUFF (FOR SKID CONTROL SENSOR ROTOR) | ||||
| 90280-03005 |
MA70..4FC..(C,EUR) |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88267-14120 |
MA70..LHD..(C,EUR) NO.1 |
1 | ||
| 88269-14120 |
MA70..LHD..(C,EUR) NO.3 |
1 | ||
| 88268-14120 |
MA70..LHD..(C,EUR) NO.2 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88267-14120 |
MA70..LHD..(C,EUR) NO.1 |
1 | ||
| 88269-14120 |
MA70..LHD..(C,EUR) NO.3 |
1 | ||
| 88268-14120 |
MA70..LHD..(C,EUR) NO.2 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88267-14120 |
MA70..LHD..(C,EUR) NO.1 |
1 | ||
| 88269-14120 |
MA70..LHD..(C,EUR) NO.3 |
1 | ||
| 88268-14120 |
MA70..LHD..(C,EUR) NO.2 |
1 | ||
| Common parts | ||||
| 33485-30020 | ||||
| 82711-12200 | ||||
| 90105-08116 | ||||
| 90189-05019 | ||||
| 91651-40612 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 93319-15008 | ||||
| 93567-55016 | ||||
