MA70L-BJMVZC (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )LHD..TWT

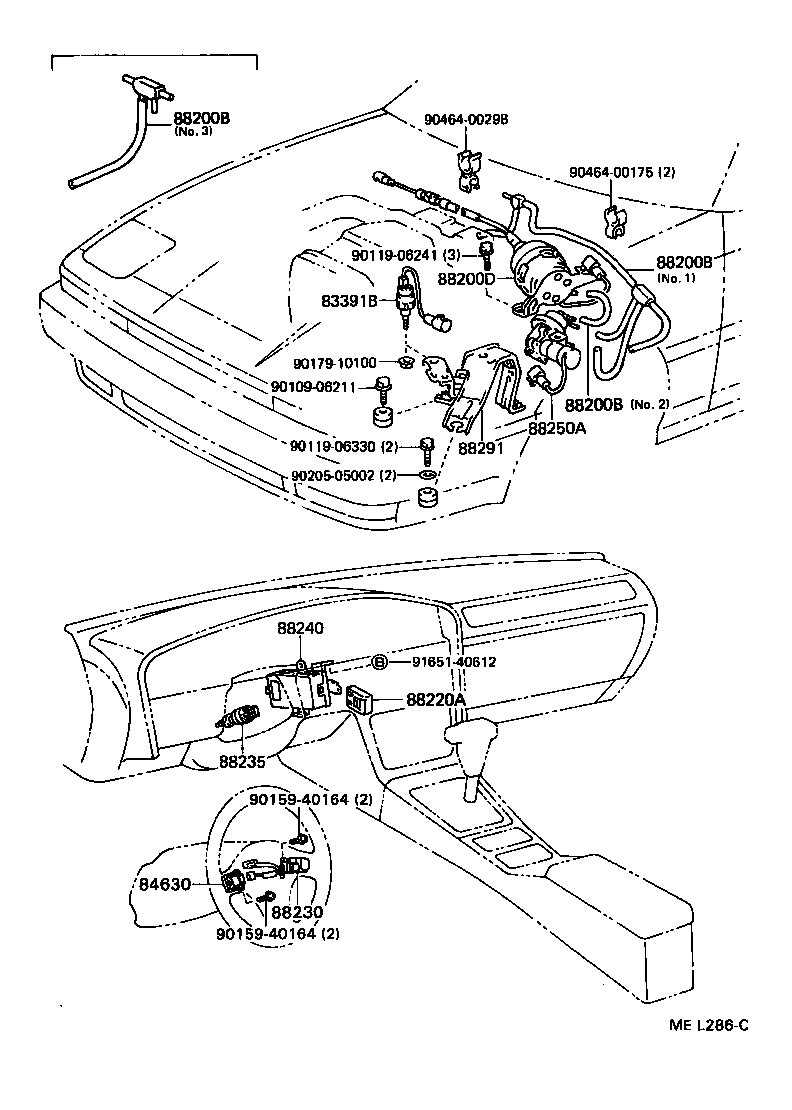

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391B - SWITCH, AUTO DRIVE VACUUM | ||||
| 83391-14090 |
MA70..RHD;MA70..LHD..TWT |
1 | ||
| 83391-32050 |
MA70..RHD;MA70..LHD..C |
1 | ||
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-14060 |
MA70 |
1 | ||
| 84630-14090 |
MA70 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-14030 |
MA70..LHD..TWT NO.1 |
1 | ||
| 88283-14040 |
MA70..LHD..(GEN,V) |
1 | ||
| 90999-92002 |
MA70..LHD..TWT *H,L=300,NO.2 |
1 | ||
| 88283-14080 |
MA70..LHD..TWT NO.3 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-14030 |
MA70..LHD..TWT NO.1 |
1 | ||
| 88283-14040 |
MA70..LHD..(GEN,V) |
1 | ||
| 90999-92002 |
MA70..LHD..TWT *H,L=300,NO.2 |
1 | ||
| 88283-14080 |
MA70..LHD..TWT NO.3 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-14030 |
MA70..LHD..TWT NO.1 |
1 | ||
| 88283-14040 |
MA70..LHD..(GEN,V) |
1 | ||
| 90999-92002 |
MA70..LHD..TWT *H,L=300,NO.2 |
1 | ||
| 88283-14080 |
MA70..LHD..TWT NO.3 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-14121 |
MA70..LHD..TWT |
1 | ||
| 88200-14180 |
MA70..LHD..C |
1 | ||
| 88220A - RELAY ASSY, SPEED CONTROL MAIN | ||||
| 88220-14010 |
MA70 |
1 | ||
| 88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL | ||||
| 88230-14130 |
MA70 |
1 | ||
| 88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE | ||||
| 88280-20010 |
MA70..5F |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-14220 |
MA70..LHD..C |
1 | ||
| 88240-14180 |
MA70..LHD..TWT |
1 | ||
| 88250A - PUMP ASSY, CRUISE CONTROL | ||||
| 88251-14121 |
MA70..LHD..TWT |
1 | ||
| 88251-14130 |
MA70..LHD..C |
1 | ||
| 88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 | ||||
| 88292-14020 |
MA70..LHD..TWT |
1 | ||
| Common parts | ||||
| 90109-06211 | ||||
| 90119-06241 | ||||
| 90119-06330 | ||||
| 90159-40164 | ||||
| 90179-10100 | ||||
| 90205-05002 | ||||
| 90464-00175 | ||||
| 90464-00298 | ||||
| 91651-40612 | ||||
