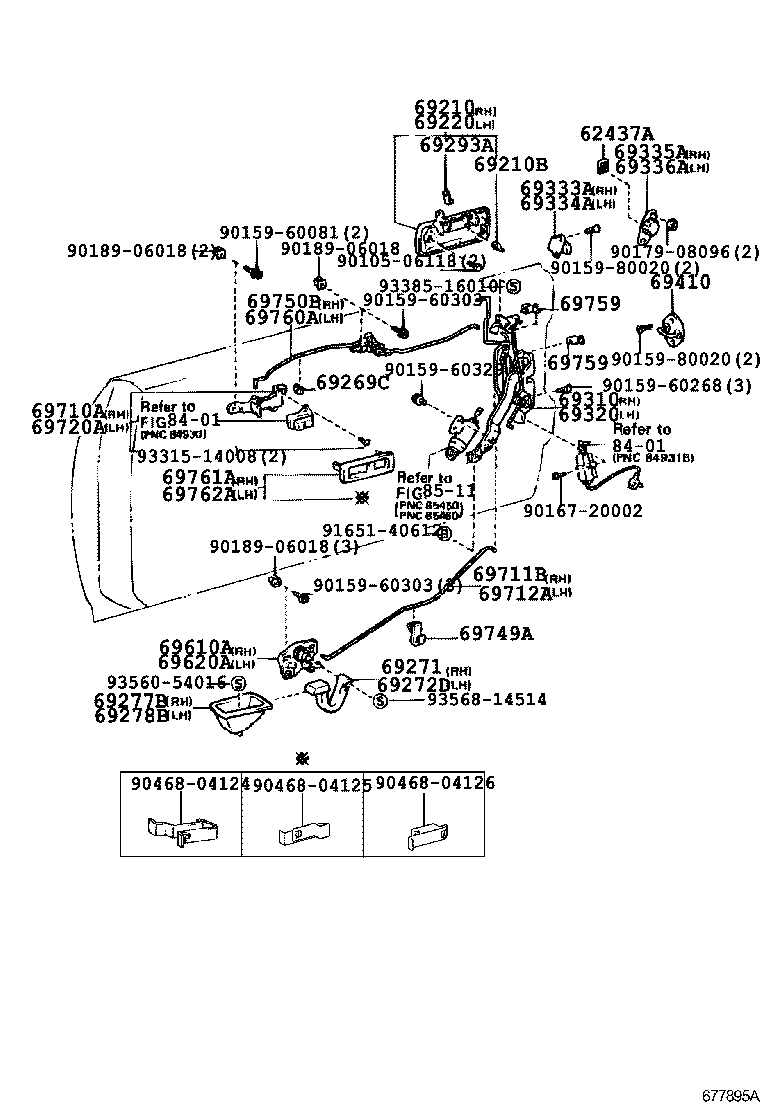

MA70L-BJMVZC (1988)
Toyota Supra
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62437A - PROTECTOR, BASE EDGE, NO.1 | ||||
| 62437-14020 |
MA70..SPR |
2 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-1409016 |
MA70..C,EUR,GEN,V DK. BROWN MICA,4J7 |
1 | ||
| 69210-1409015 |
MA70..C,GEN,V BEIGE M.,4K9 |
1 | ||
| 69210-1409042 |
MA70..C,GEN,V RED MICA,3H8 |
1 | ||
| 69210-1409034 |
MA70 BLUE METALLIC/MICA,8E3 |
1 | ||
| 69210-1409007 |
MA70..C DARK GREEN MICA,6L9 |
1 | ||
| 69210-1409023 |
MA70 GRAY M.,176 |
1 | ||
| 69210-1409028 |
MA70 SUPER WHITE 3,043 |
1 | ||
| 69210-1409054 |
MA70 DARK BLUE M.M.,8G5 |
1 | ||
| 69210-1409032 |
MA70..C,EUR,GEN,V RED MICA,3H4 |
1 | ||
| 69210-1409013 |
MA70..C,EUR,GEN,V GRAY M.,167 |
1 | ||
| 69210-1409038 |
MA70 SUPER WHITE 4,050 |
1 | ||
| 69210-1409033 |
MA70 BLUEISH GRAY M.,182 |
1 | ||
| 69210-1409010 |
MA70..C,GEN,V BLUE M.,8J3 |
1 | ||
| 69210-1409011 |
MA70 BLACK,202 |
1 | ||
| 69210-14090D0 |
MA70..C,GEN,V RED MICA,3K3 |
1 | ||
| 69210-14090H0 |
MA70..C MEDIUM TORQUOISE M.,749 |
1 | ||
| 69210-1409022 |
MA70 SUPER RED 2,3E5 |
1 | ||
| 69210-1409021 |
MA70 BLACK MICA,206 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
MA70 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-1410016 |
MA70..C,EUR,GEN,V DK. BROWN MICA,4J7 |
1 | ||
| 69220-1410013 |
MA70..C,EUR,GEN,V GRAY M.,167 |
1 | ||
| 69220-1410021 |
MA70 BLACK MICA,206 |
1 | ||
| 69220-1410028 |
MA70 SUPER WHITE 3,043 |
1 | ||
| 69220-1410032 |
MA70..C,EUR,GEN,V RED MICA,3H4 |
1 | ||
| 69220-1410034 |
MA70 BLUE METALLIC/MICA,8E3 |
1 | ||
| 69220-1410054 |
MA70 DARK BLUE M. M.,8G5 |
1 | ||
| 69220-1410015 |
MA70..C,GEN,V BEIGE M.,4K9 |
1 | ||
| 69220-1410033 |
MA70 BLUEISH GRAY M.,182 |
1 | ||
| 69220-1410038 |
MA70 SUPER WHITE 4,050 |
1 | ||
| 69220-1410011 |
MA70 BLACK,202 |
1 | ||
| 69220-1410023 |
MA70 SUPER SILVER 3 M.,176 |
1 | ||
| 69220-1410010 |
MA70..C,GEN,V BLUE M.,8J3 |
1 | ||
| 69220-1410022 |
MA70 SUPER RED 2,3E5 |
1 | ||
| 69220-14100H0 |
MA70..C MEDIUM TORQUOISE M.,749 |
1 | ||
| 69220-1410042 |
MA70..C,GEN,V RED MICA,3H8 |
1 | ||
| 69220-14100D0 |
MA70..C,GEN,V RED MICA,3K3 |
1 | ||
| 69220-1410007 |
MA70..C DARK GREEN MICA,6L9 |
1 | ||
| 69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR) | ||||
| 69289-12010 |
MA70 |
2 | ||
| 69271 - HANDLE, FRONT DOOR INSIDE, RH | ||||
| 69271-2009013 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69271-2009026 |
MA70..C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 69271-2009026 |
MA70 BROWN,TRIM4# |
1 | ||
| 69271-2009013 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 69271-2009026 |
MA70..LHD..C BROWN,TRIM4# |
1 | ||
| 69271-2009013 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69271-2009026 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 69271-2009004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 69271-2009003 |
MA70 SHADOW GRAY,TRIM1# |
1 | ||
| 69271-2009012 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 69271-2009022 |
MA70..ARL,GEN,V DEEP RED,TRIM3# |
1 | ||
| 69272D - HANDLE, FRONT DOOR INSIDE, LH | ||||
| 69272-2006003 |
MA70 SHADOW GRAY,TRIM1# |
1 | ||
| 69272-2006013 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69272-2006013 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69272-2006026 |
MA70 BROWN,TRIM4# |
1 | ||
| 69272-2006026 |
MA70..C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 69272-2006026 |
MA70..LHD..C BROWN,TRIM4# |
1 | ||
| 69272-2006013 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 69272-2006004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 69272-2006022 |
MA70..ARL,GEN,V DEEP RED,TRIM3# |
1 | ||
| 69272-2006026 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 69272-2006012 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-1404003 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-1404002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 69277-1404006 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 69277-1404006 |
MA70..C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 69277-1404003 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-1404003 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-1404013 |
MA70 SHADOW GRAY,TRIM1# |
1 | ||
| 69277-1404006 |
MA70 BROWN,TRIM4# |
1 | ||
| 69277-1404006 |
MA70..LHD..C BROWN,TRIM4# |
1 | ||
| 69277-1404012 |
MA70..ARL,GEN,V DEEP RED,TRIM3# |
1 | ||
| 69277-1404004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-1401003 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69278-1401003 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 69278-1401004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 69278-1401006 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 69278-1401003 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69278-1401002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 69278-1401006 |
MA70..C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 69278-1401006 |
MA70..LHD..C BROWN,TRIM4# |
1 | ||
| 69278-1401012 |
MA70..ARL,GEN,V DEEP RED,TRIM3# |
1 | ||
| 69278-1401013 |
MA70 SHADOW GRAY,TRIM1# |
1 | ||
| 69278-1401006 |
MA70 BROWN,TRIM4# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
MA70 RH |
1 | ||
| 69293-12050 |
MA70 LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-14380 |
MA70..LHD;MA70..ARL |
1 | ||
| 69310-14321 |
MA70..LHD..(C,EUR,GEN) |
1 | ||
| 69310-14310 |
MA70..ARL,V |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-14280 |
MA70..ARL,V |
1 | ||
| 69320-14350 |
MA70..LHD..(C,GEN) |
1 | ||
| 69320-14360 |
MA70..V;MA70..RHD |
1 | ||
| 69320-14321 |
MA70..LHD..(C,EUR,GEN) |
1 | ||
| 69333A - STABILIZER, DOOR MALE, RH | ||||
| 69333-14010 |
MA70..SPR |
1 | ||
| 69334A - STABILIZER, DOOR MALE, LH | ||||
| 69334-14010 |
MA70..SPR |
1 | ||
| 69335A - STABILIZER, DOOR FEMALE, RH | ||||
| 69335-14010 |
MA70..SPR |
1 | ||
| 69336A - STABILIZER, DOOR FEMALE, LH | ||||
| 69336-14010 |
MA70..SPR |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-12050 |
MA70 |
2 | ||
| 69610A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, RH | ||||
| 69610-14030 |
MA70 |
1 | ||
| 69610-14030 |
MA70 |
1 | ||
| 69620A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, LH | ||||
| 69620-14030 |
MA70 |
1 | ||
| 69620-14030 |
MA70 |
1 | ||
| 69710A - LEVER ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69710-2006016 |
MA70..LHD BROWN,TRIM4# |
1 | ||
| 69710-2006016 |
MA70..LHD..(C,EUR,GEN) BROWN,TRIM4# |
1 | ||
| 69710-2006012 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 69710-2006016 |
MA70..LHD..C BROWN,TRIM4# |
1 | ||
| 69710-2006016 |
MA70..LHD BROWN,TRIM1# |
1 | ||
| 69710-2006004 |
MA70..LHD DEEP BLUE,TRIM8# |
1 | ||
| 69710-2006013 |
MA70..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 69710-2006003 |
MA70..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-14090 |
MA70 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-14090 |
MA70 |
1 | ||
| 69720A - LEVER ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69720-1407003 |
MA70..LHD MEDIUM GRAY METALLIC,TRIM1# |
1 | ||
| 69720-1407006 |
MA70..LHD BROWN,TRIM4# |
1 | ||
| 69720-1407006 |
MA70..LHD..(C,EUR,GEN) BROWN,TRIM4# |
1 | ||
| 69720-1407004 |
MA70..LHD DEEP BLUE,TRIM8# |
1 | ||
| 69720-1407006 |
MA70..LHD..C BROWN,TRIM4# |
1 | ||
| 69720-1407002 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 69720-1407013 |
MA70..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20020 |
MA70 |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-14020 |
MA70 |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
MA70 LOCKING LINK,RH |
1 | ||
| 69759-24060 |
MA70 LOCKING LINK,LH |
1 | ||
| 69759-20200 |
MA70 OPEN LINK,LH |
1 | ||
| 69759-20190 |
MA70 OPEN LINK,RH |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
MA70 LOCKING LINK,RH |
1 | ||
| 69759-24060 |
MA70 LOCKING LINK,LH |
1 | ||
| 69759-20200 |
MA70 OPEN LINK,LH |
1 | ||
| 69759-20190 |
MA70 OPEN LINK,RH |
1 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-14020 |
MA70 |
1 | ||
| 69761A - BEZEL, DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-1402026 |
MA70..LHD..(C,EUR,GEN) BROWN,TRIM4# |
1 | ||
| 69761-1402012 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 69761-1402026 |
MA70..LHD BROWN,TRIM4# |
1 | ||
| 69761-1402013 |
MA70..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 69761-1402004 |
MA70..LHD DEEP BLUE,TRIM8# |
1 | ||
| 69761-1402003 |
MA70..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 69761-1402026 |
MA70..LHD..C BROWN,TRIM4# |
1 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69762-1401016 |
MA70..LHD..(C,EUR,GEN) BROWN,TRIM4# |
1 | ||
| 69762-1401013 |
MA70..LHD MEDIUM GRAY,TRIM1# |
1 | ||
| 69762-1401016 |
MA70..LHD BROWN,TRIM4# |
1 | ||
| 69762-1401003 |
MA70..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 69762-1401012 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 69762-1401016 |
MA70..LHD..C BROWN,TRIM4# |
1 | ||
| 69762-1401004 |
MA70..LHD DEEP BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90105-06118 | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-60303 | ||||
| 90159-60329 | ||||
| 90159-80020 | ||||
| 90167-20002 | ||||
| 90179-08096 | ||||
| 90189-06018 | ||||
| 90468-04124 | ||||
| 90468-04125 | ||||
| 90468-04126 | ||||
| 91651-40612 | ||||
| 93315-14008 | ||||
| 93385-16010 | ||||
| 93560-54016 | ||||
| 93568-14514 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8511 | ||||
