MA70L-BJMVZC (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

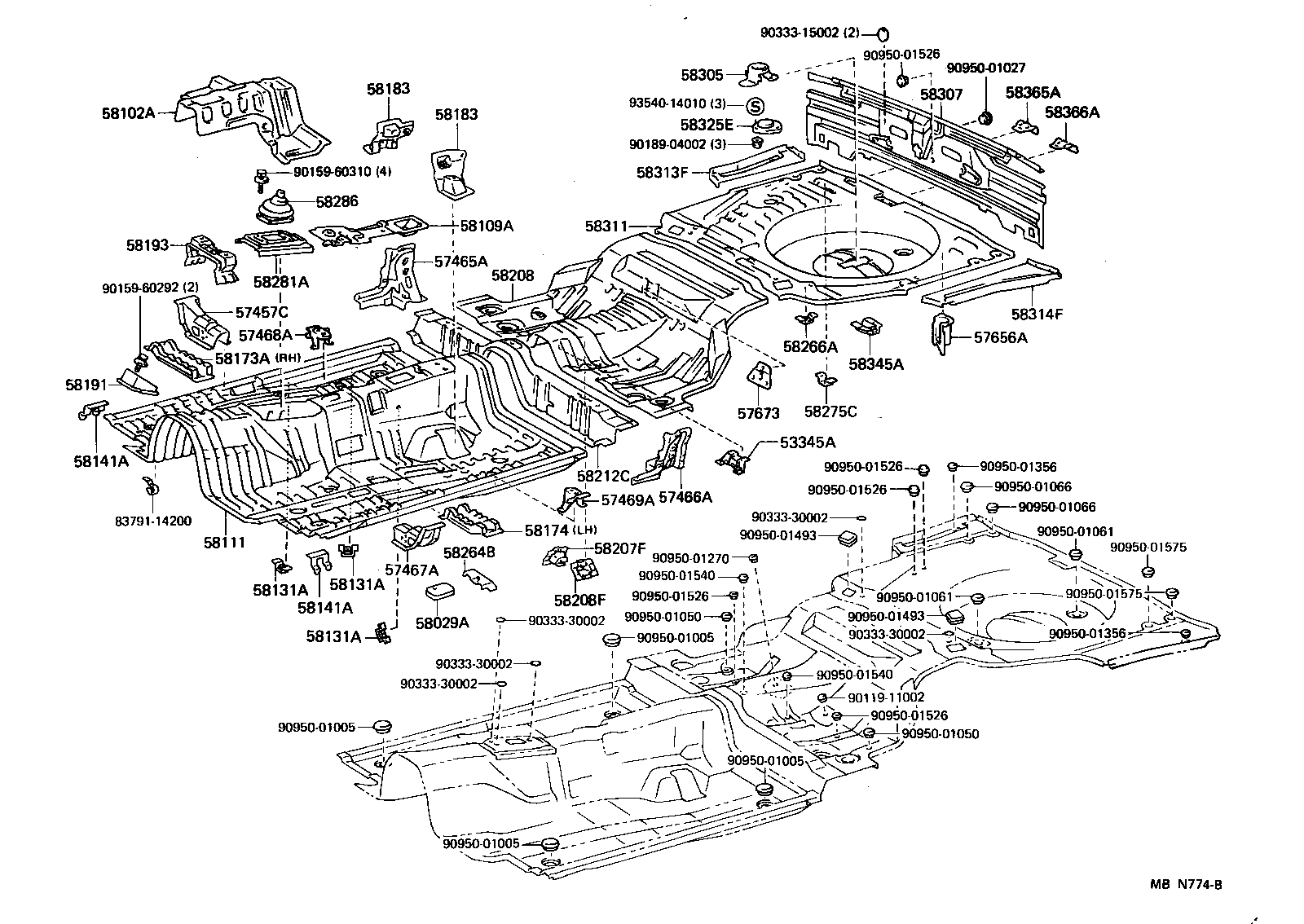

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53345A - BRACKET, AIR DEFLECTOR, NO.2 RH | ||||
| 53345-14010 |
MA70..TWT..C |
1 | ||
| 57457C - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH | ||||
| 57457-14010 |
MA70 |
1 | ||
| 57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57465-14060 |
MA70 |
1 | ||
| 57466A - GUSSET, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57466-14030 |
MA70 |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-14020 |
MA70 |
1 | ||
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-14030 |
MA70 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-14030 |
MA70 |
1 | ||
| 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 | ||||
| 57656-14040 |
MA70 |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-14020 |
MA70 |
1 | ||
| 58029A - BRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP | ||||
| 58029-14020 |
MA70..ARL,C,EUR,GEN |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-14021 |
MA70..V |
1 | ||
| 58102-14020 |
MA70..V |
1 | ||
| 58109A - RETAINER SUB-ASSY, PARKING BRAKE | ||||
| 58109-14020 |
MA70..LHD |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-14060 |
MA70 |
1 | ||
| 58111-14061 |
MA70 |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-14030 |
MA70..ARL,C,EUR,GEN |
2 | ||
| 58131-14030 |
MA70..V |
3 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-14030 |
MA70..ARL,C,EUR,GEN |
2 | ||
| 58131-14030 |
MA70..V |
3 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-14030 |
MA70..ARL,C,EUR,GEN |
2 | ||
| 58131-14030 |
MA70..V |
3 | ||
| 58141A - PROTECTOR, FRONT FLOOR SERVICE HOLE, NO.1 | ||||
| 58141-14020 |
MA70 |
2 | ||
| 58141A - PROTECTOR, FRONT FLOOR SERVICE HOLE, NO.1 | ||||
| 58141-14020 |
MA70 |
2 | ||
| 58173A - DEFLECTOR, FRONT FLOOR STONE, RH | ||||
| 58173-14020 |
MA70 |
1 | ||
| 58174 - DEFLECTOR, FRONT FLOOR STONE, LH | ||||
| 58174-14010 |
MA70 |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-14030 |
MA70..ARL,C,EUR,GEN RH |
1 | ||
| 58184-14030 |
MA70..ARL,C,EUR,GEN LH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-14030 |
MA70..ARL,C,EUR,GEN RH |
1 | ||
| 58184-14030 |
MA70..ARL,C,EUR,GEN LH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-14030 |
MA70..LHD |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-14030 |
MA70 |
1 | ||
| 58207F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, RH | ||||
| 58207-14040 |
MA70 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-14120 |
MA70 |
1 | ||
| 58208F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, LH | ||||
| 58208-14040 |
MA70 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-14020 |
MA70 |
1 | ||
| 58264B - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-14020 |
MA70 |
1 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-14050 |
MA70 |
2 | ||
| 58266-22040 |
MA70 |
2 | ||
| 58275C - BRACKET, WIRE HARNESS PROTECTOR | ||||
| 58275-14020 |
MA70 |
2 | ||
| 58281A - COVER, TRANSMISSION AUXILIARY | ||||
| 58281-14100 |
MA70..5F |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-14070 |
MA70..5F |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
MA70 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-14700 |
MA70..V |
1 | ||
| 58307-14680 |
MA70..LHD..TWT SWITZERLAND SPEC |
1 | ||
| 58307-14670 |
MA70..C,EUR,GEN |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-14170 |
MA70 |
1 | ||
| 58311-14171 |
MA70 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-14190 |
MA70 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-14130 |
MA70 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
MA70 |
1 | ||
| 58345A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-14020 |
MA70 |
1 | ||
| 58365A - BRACKET, FUEL TANK SUPPORT, RH | ||||
| 58365-14010 |
MA70 |
1 | ||
| 58366A - BRACKET, FUEL TANK SUPPORT, LH | ||||
| 58366-14010 |
MA70 |
1 | ||
| Common parts | ||||
| 83791-14200 | ||||
| 90119-11002 | ||||
| 90159-60292 | ||||
| 90159-60310 | ||||
| 90189-04002 | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||
| 90950-01005 | ||||
| 90950-01027 | ||||
| 90950-01050 | ||||
| 90950-01061 | ||||
| 90950-01066 | ||||
| 90950-01270 | ||||
| 90950-01356 | ||||
| 90950-01493 | ||||
| 90950-01526 | ||||
| 90950-01540 | ||||
| 90950-01575 | ||||
| 93540-14010 | ||||
