MA70L-BJMVZC (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

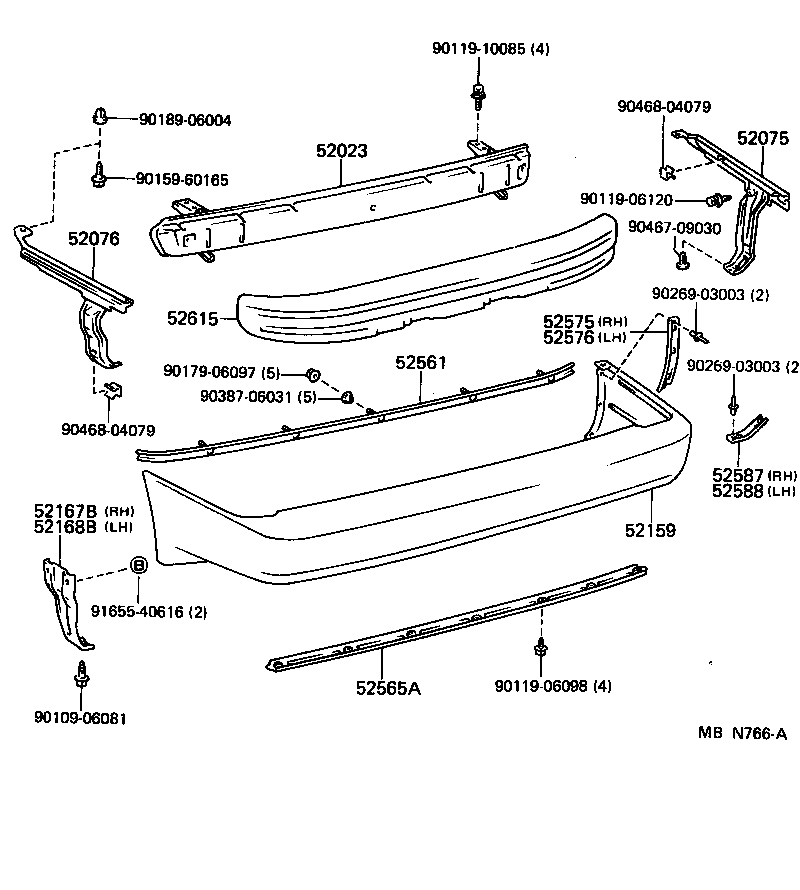

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-14140 |
MA70 |
1 | ||
| 52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52075-14020 |
MA70 |
1 | ||
| 52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52076-14020 |
MA70 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-14904 |
MA70 |
1 | ||
| 52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH | ||||
| 52167-14100 |
MA70 |
1 | ||
| 52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH | ||||
| 52168-14040 |
MA70 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-14140 |
MA70 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-14051 |
MA70 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-14030 |
MA70 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-14030 |
MA70 |
1 | ||
| 52587 - RETAINER, REAR BUMPER END, RH | ||||
| 52587-14020 |
MA70 |
1 | ||
| 52588 - RETAINER, REAR BUMPER END, LH | ||||
| 52588-14020 |
MA70 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-14150 |
MA70 |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90119-06098 | ||||
| 90119-06120 | ||||
| 90119-10085 | ||||
| 90159-60165 | ||||
| 90179-06097 | ||||
| 90189-06004 | ||||
| 90269-03003 | ||||
| 90387-06031 | ||||
| 90467-09030 | ||||
| 90468-04079 | ||||
| 91655-40616 | ||||
