MA70L-BJMVZC (1988)
Toyota Supra
(8808- )TWT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30091 |
MA70 |
1 | ||
| 04446-30090 |
MA70..RHD..EUR;MA70..ARL,C,GEN,V |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-63002 |
MA70 |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
MA70 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18008 |
MA70 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-32001 |
MA70 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
MA70..TWT |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-24030 |
MA70..ARL,C,EUR |
1 | ||
| 44311-14050 |
MA70..GEN,V |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
MA70 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12020 |
MA70 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
MA70 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) NO MARK |
1 | ||
| 44313-22050 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) MARK 1 |
1 | ||
| 44313-22070 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) MARK 3 |
1 | ||
| 44313-22060 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) MARK 2 |
1 | ||
| 44313-32020 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) MARK 1 |
1 | ||
| 44313-32030 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) MARK 2 |
1 | ||
| 44313-32040 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) MARK 3 |
1 | ||
| 44313-32010 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) NO MARK |
1 | ||
| 44313-22080 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) MARK 4 |
1 | ||
| 44313-32050 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) MARK 4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-14221 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44320-24031 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-14050 |
MA70 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-22060 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) MARK 4 |
1 | ||
| 44325-30170 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) MARK 2 |
1 | ||
| 44325-22020 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) NO MARK |
1 | ||
| 44325-30150 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) NO MARK |
1 | ||
| 44325-30160 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) MARK 1 |
1 | ||
| 44325-30180 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) MARK 3 |
1 | ||
| 44325-22050 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) MARK 3 |
1 | ||
| 44325-22030 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) MARK 1 |
1 | ||
| 44325-22040 |
MA70..LHD..TWT;MA70..RHD..(ARL,C,EUR) MARK 2 |
1 | ||
| 44325-30190 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05017 |
MA70 L=43.5,OD=5.0 |
1 | ||
| 90250-05008 |
MA70 L=25,OD=5.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05017 |
MA70 L=43.5,OD=5.0 |
1 | ||
| 90250-05008 |
MA70 L=25,OD=5.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-30110 |
MA70 MARK B |
1 | ||
| 44330-30150 |
MA70 MARK F |
1 | ||
| 44330-30120 |
MA70 MARK C |
1 | ||
| 44330-30140 |
MA70 MARK E |
1 | ||
| 44330-30100 |
MA70 MARK A |
1 | ||
| 44330-32170 |
MA70 MARK E |
1 | ||
| 44330-40020 |
MA70 MARK B |
1 | ||
| 44330-32150 |
MA70 MARK C |
1 | ||
| 44330-32140 |
MA70 MARK B |
1 | ||
| 44330-32180 |
MA70 MARK F |
1 | ||
| 44330-30130 |
MA70 MARK D |
1 | ||
| 44330-40030 |
MA70 MARK C |
1 | ||
| 44330-40060 |
MA70 MARK F |
1 | ||
| 44330-40040 |
MA70 MARK D |
1 | ||
| 44330-40050 |
MA70 MARK E |
1 | ||
| 44330-40010 |
MA70 MARK A |
1 | ||
| 44330-32130 |
MA70 MARK A |
1 | ||
| 44330-32160 |
MA70 MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
MA70 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-02200 |
MA70 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-14020 |
MA70 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
MA70 |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-35030 |
MA70..GEN,V;MA70..LHD..TWC..(C,EUR) |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
MA70 OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
MA70 OD=25.5,ID=22.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
MA70 OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
MA70 OD=25.5,ID=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30030 |
MA70 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
MA70 INNER |
1 | ||
| 90301-56002 |
MA70 OUTER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
MA70 INNER |
1 | ||
| 90301-56002 |
MA70 OUTER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-30020 |
MA70 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-13004 |
MA70 INNER |
1 | ||
| 90301-30004 |
MA70 OUTER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-13004 |
MA70 INNER |
1 | ||
| 90301-30004 |
MA70 OUTER |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12030 |
MA70 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19019 |
MA70 |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12020 |
MA70 L=14.995,L=14.994-14.996 |
10 | ||
| 44345-12040 |
MA70 L=14.991,L=14.990-14.992 |
10 | ||
| 44345-12030 |
MA70 L=14.993,L=14.992-14.994 |
10 | ||
| 44345-12010 |
MA70 L=14.997,L=14.996-14.998 |
10 | ||
| 44345-12050 |
MA70 L=14.989,L=14.988-14.990 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-14090 |
MA70..TWT |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-14010 |
MA70..TWT |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-14050 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90179-12022 | ||||
| 90206-30001 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||

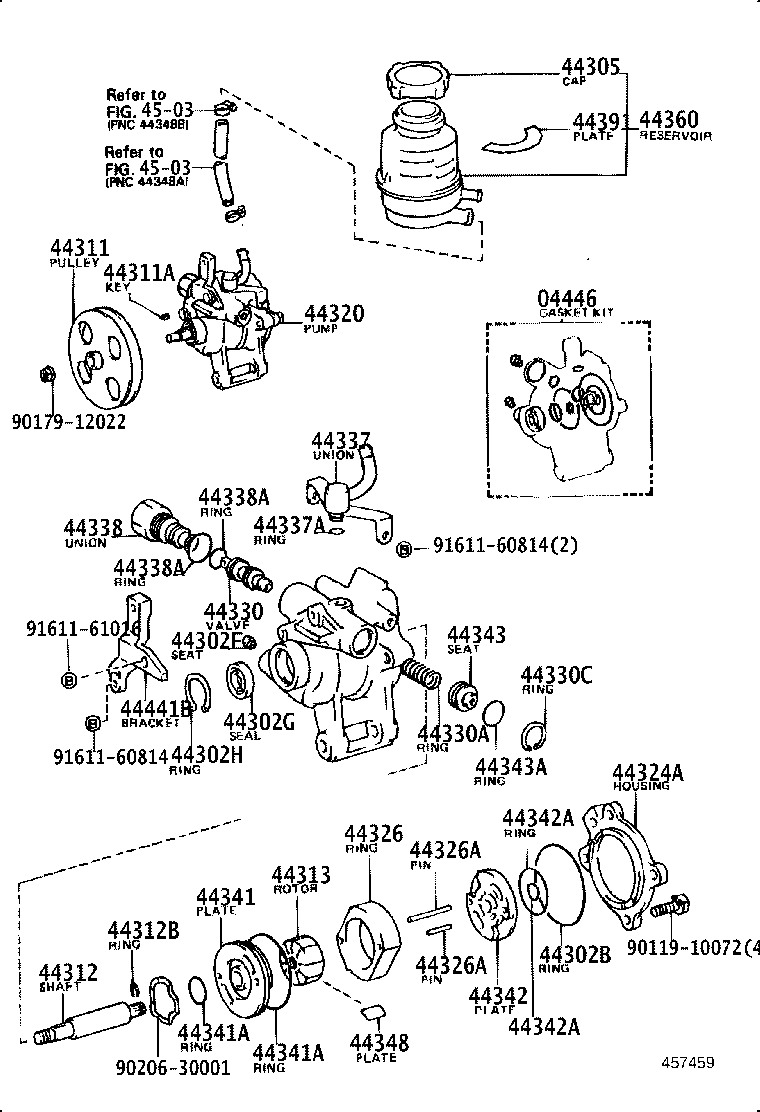

| Linked diagrams | ||||
| 4503 | ||||
