MA70L-BJMVFW (1988)

Toyota Supra

Production Aug 1988 - Aug 1989
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

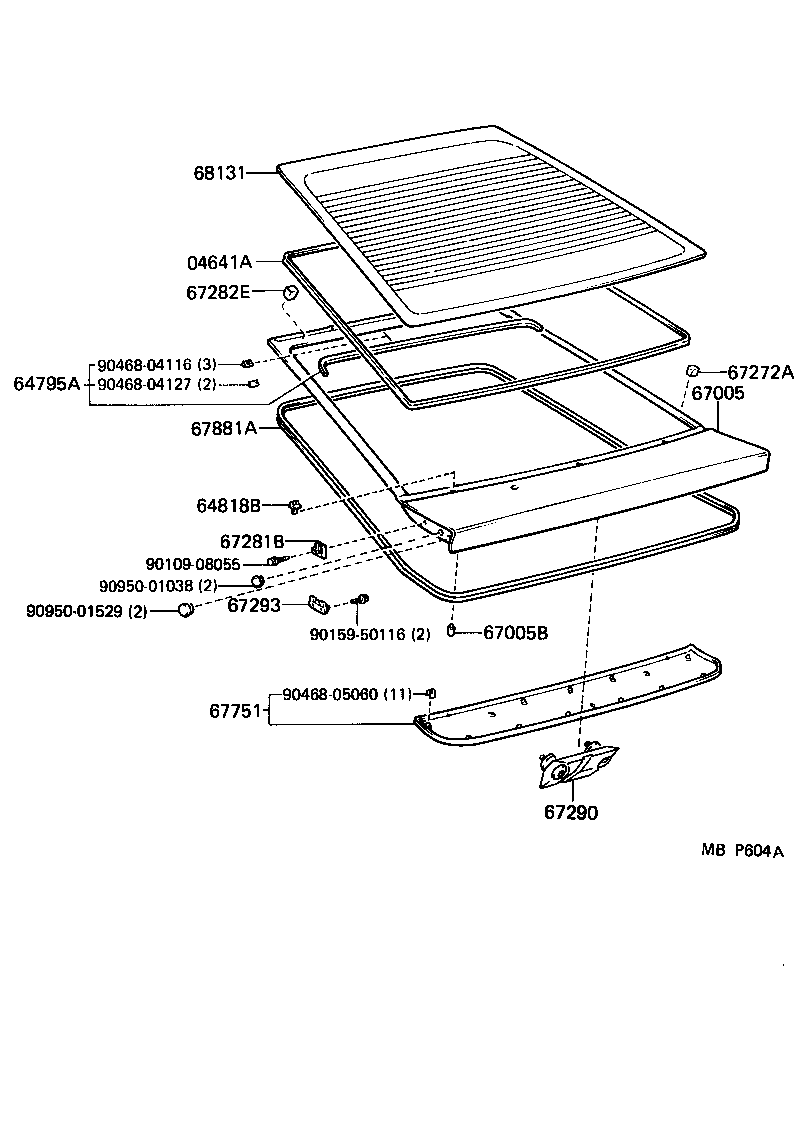

Click highlighted areas on diagram

diagram 04641A 64795A 64818B 67005 67005B 67272A 67281B 67282E 67290 67293 67751 67881A 68131 9010908055 9015950116 9046804116 9046804127 9046805060 9095001038 9095001529
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
04562-30040

MA70

 1
64795A - TRIM, BACK WINDOW OPENING
64795-14020

MA70

 1
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-14010

MA70

 3
67005 - PANEL SUB-ASSY, BACK DOOR
67005-14312

MA70..LHD..C;MA70..RHD..TWT..C;MA70..ARL,EUR,GEN,V

 1
67005-14621

MA70..LHD..C;MA70..EUR,GEN,V;MA70..RHD..TWT..C

W(REAR SPOILER)

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09047

MA70

 2
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-14010

MA70

 5
67281B - STOPPER, BACK DOOR, LOWER
67281-14040

MA70

 2
67282E - CUSHION, BACK DOOR STOPPER, NO.3
67282-14010

MA70

 2
67290 - DAMPER ASSY, BACK DOOR
67290-14010

MA70..LHD..(C,EUR)

 1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-14030

MA70

 2
67751 - BOARD, BACK DOOR TRIM
64781-1406102

MA70..GEN,V

MAROON,TRIM3#

 1
64781-1406106

MA70..C,EUR,GEN

BROWN,TRIM4#

 1
64781-1406103

MA70..C,EUR,GEN,V

MEDIUM GRAY,TRIM1#

 1
64781-1406104

MA70..C,EUR,GEN,V

DEEP BLUE,TRIM8#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-14110

MA70

 1
68131 - GLASS, BACK DOOR
68131-14181

MA70..ARL,GEN,V;MA70..LHD..(C,EUR)

*EHTT,T=4.0

 1
68131-14191

MA70..LHD..(C,EUR)

*EHTT,T=4.0,COLD SPEC

 1
Common parts
90109-08055
90159-50116
90468-04116
90468-04127
90468-05060
90950-01038
90950-01529
