JZA80R-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

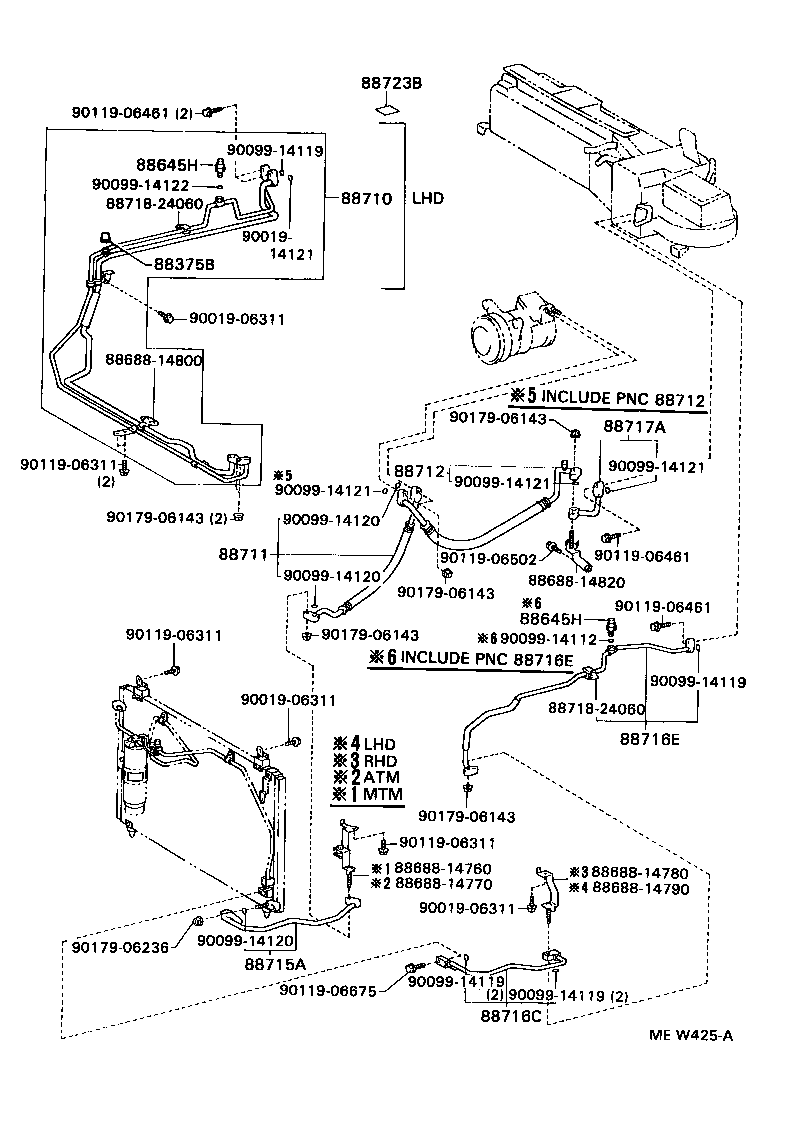

ILLUST NO. 2 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
JZA80..EUR,GCC |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
JZA80..EUR,GCC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-14650 |
JZA80 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1B130 |
JZA80..RHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-14260 |
JZA80 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-1B200 |
JZA80 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88706-14090 |
JZA80..RHD..EUR |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-14320 |
JZA80..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-14010 |
JZA80 |
1 | ||
| Common parts | ||||
| 88688-14760 | ||||
| 88688-14770 | ||||
| 88688-14780 | ||||
| 88688-14790 | ||||
| 88688-14800 | ||||
| 88688-14820 | ||||
| 88718-24060 | ||||
| 90019-06311 | ||||
| 90019-14121 | ||||
| 90099-14112 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06311 | ||||
| 90119-06461 | ||||
| 90119-06502 | ||||
| 90119-06675 | ||||
| 90179-06143 | ||||
| 90179-06236 | ||||

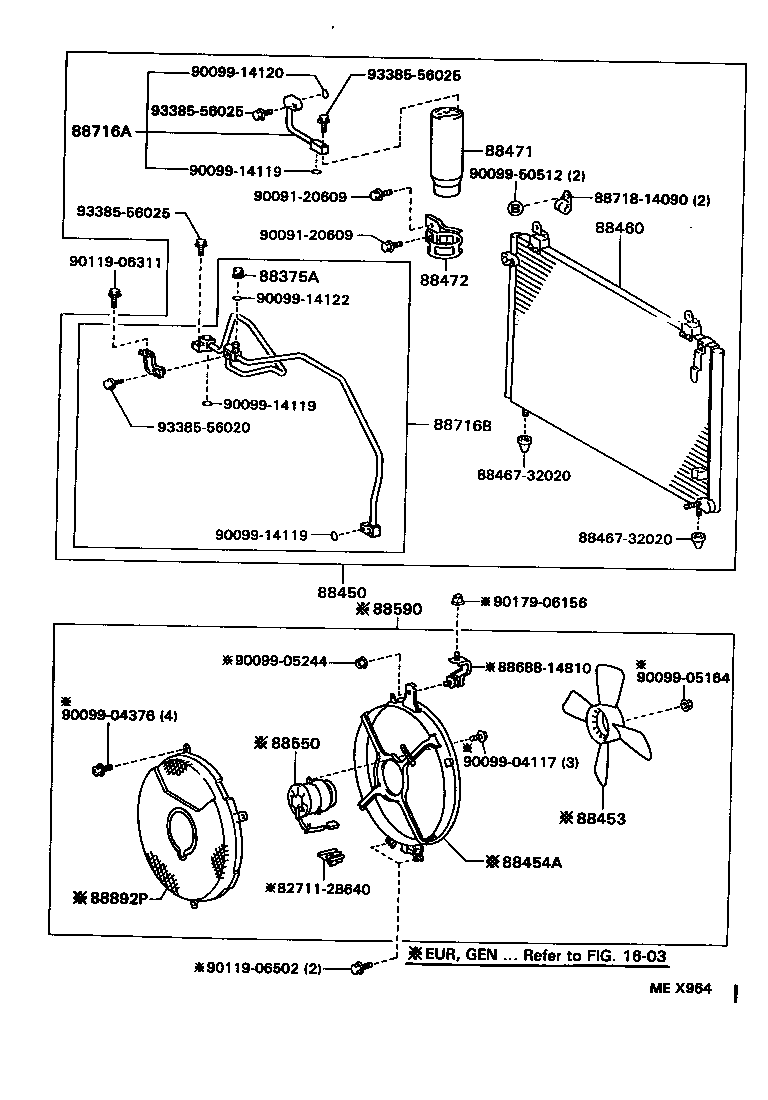

ILLUST NO. 1 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
JZA80 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-14160 |
JZA80 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-14310 |
JZA80 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
JZA80 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-14200 |
JZA80 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1B210 |
JZA80 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88706-14100 |
JZA80 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-32020 | ||||
| 88688-14810 | ||||
| 88718-14090 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-05244 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14122 | ||||
| 90099-50512 | ||||
| 90119-06311 | ||||
| 90119-06502 | ||||
| 90179-06156 | ||||
| 93385-56020 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
