JZA80R-ALPVZW (1993)

Toyota Supra

Production May 1993 - Jan 1996
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

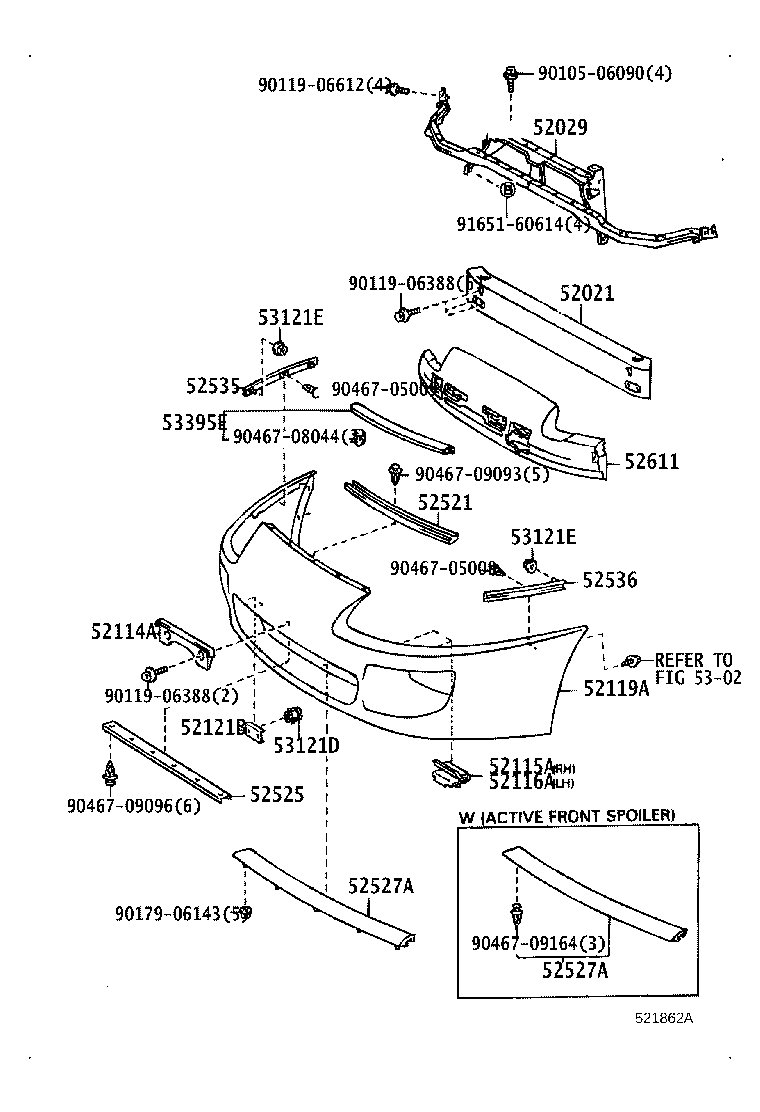

Click highlighted areas on diagram

diagram 52021 52029 52114A 52115A 52116A 52119A 52121B 52521 52525 52527A 52527A 52535 52536 52611 5302 53121D 53121E 53121E 53395E 9010506090 9011906388 9011906388 9011906612 9017906143 9046705009 9046705009 9046708044 9046709093 9046709096 9046709164 9165160614
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-14180

JZA80

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-14030

JZA80

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-14100

JZA80

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14130

JZA80

 2
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-14130

JZA80

 2
52119A - COVER, FRONT BUMPER
52119-14919

JZA80..RHD..EUR

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-24020

JZA80

 2
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-14090

JZA80

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-14100

JZA80..EUR

 1
52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2
52527-14060

JZA80..EUR

 1
52527-14050

JZA80..EUR

W(FRONT SPOILER)

 1
52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2
52527-14060

JZA80..EUR

 1
52527-14050

JZA80..EUR

W(FRONT SPOILER)

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-14070

JZA80

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-14030

JZA80

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-14120

JZA80

 1
53121D - CLIP(FOR FRONT BUMPER), NO.2
90468-04079

JZA80

 2
53121E - CLIP(FOR FRONT BUMPER), NO.1
90179-06097

JZA80

 4
53121E - CLIP(FOR FRONT BUMPER), NO.1
90179-06097

JZA80

 4
53395E - SEAL, HOOD TO FRONT END PANEL
53395-14010

JZA80

 1
Common parts
90105-06090
90119-06388
90119-06612
90179-06143
90467-05009
90467-08044
90467-09093
90467-09096
90467-09164
91651-60614
Linked diagrams
5302
