JZA80R-ALPVZW (1993)

Toyota Supra

Production May 1993 - Jan 1996
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )2JZGTE

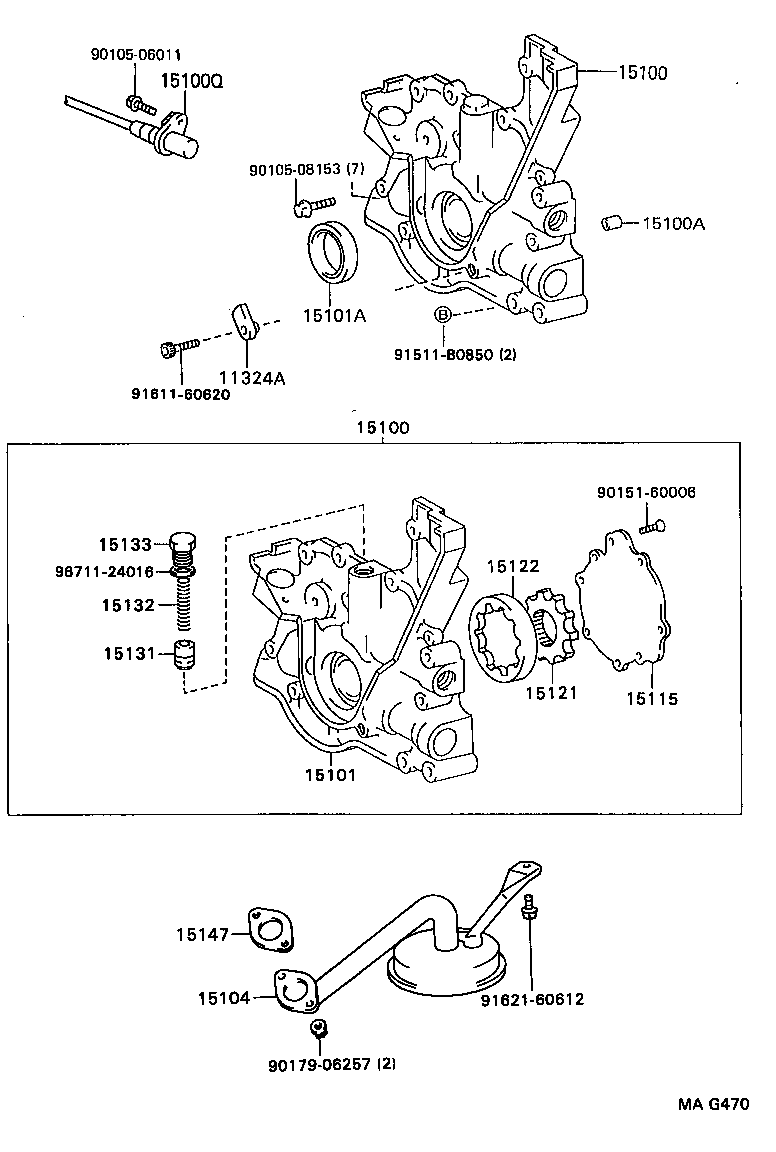

Click highlighted areas on diagram

diagram 11324A 15100 15100 15100A 15100Q 15101 15101A 15104 15115 15121 15122 15131 15132 15133 15147 9010506011 9010508153 9015160006 9017906257 91511B0850 9161160620 9162160612 9671124016
Part # Description Qty Price
11324A - PLATE, TIMING BELT
11324-46020

2JZGTE..JZA80

 1
11324-46030

2JZGTE..JZA80

 1
15100 - PUMP ASSY, OIL
15100-46051

2JZGTE..JZA80

 1
15100 - PUMP ASSY, OIL
15100-46051

2JZGTE..JZA80

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

2JZ#..JZA80

 2
15100Q - SENSOR, CRANK POSITION
90919-05006

2JZGTE..JZA80

 1
15101 - BODY SUB-ASSY, OIL PUMP
15101-46051

2JZGTE..JZA80

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-46001

2JZ#..JZA80

 1
15104 - STRAINER SUB-ASSY, OIL
15104-46030

2JZ#..JZA80

 1
15115 - COVER, OIL PUMP
15115-46050

2JZGTE..JZA80

 1
15121 - GEAR, OIL PUMP DRIVE
15121-46050

2JZGTE..JZA80

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-46050

2JZGTE..JZA80

 1
15131 - VALVE, OIL PUMP RELIEF
15131-46050

2JZGTE..JZA80

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46050

2JZGTE..JZA80

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-46050

2JZGTE..JZA80

 1
15147 - GASKET, OIL STRAINER
15147-46010

2JZ#..JZA80

 1
Common parts
90105-06011
90105-08153
90151-60006
90179-06257
91511-B0850
91611-60620
91621-60612
96711-24016
