JZA80R-ALMVF (1993)
Toyota Supra
Production
May 1993
-
Aug 1994
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

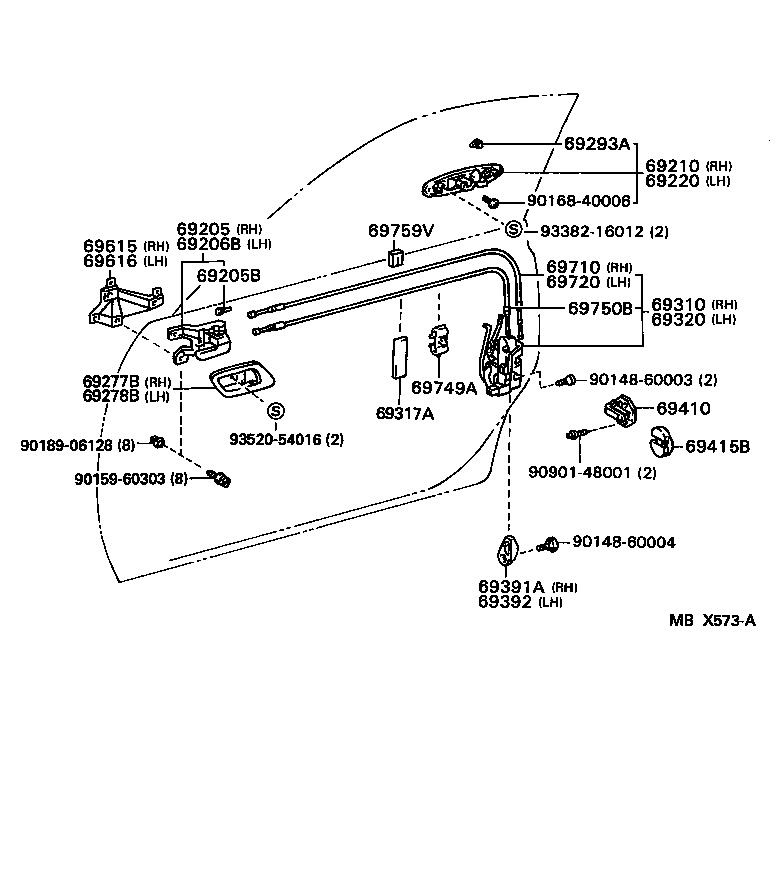

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-14080C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
JZA80 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-14080C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-14100B1 |
JZA80..RHD SILVER ME,199 |
1 | ||
| 69210-14100H0 |
JZA80..RHD DEEP TEAL ME,752 |
1 | ||
| 69210-14100D0 |
JZA80..RHD SUPER RED 4,3L2 |
1 | ||
| 69210-14100A0 |
JZA80..RHD SUPER WHITE 2,040 |
1 | ||
| 69210-14100B0 |
JZA80..RHD DARK BR0WNISH GRAY M,1A1 |
1 | ||
| 69210-14100C0 |
JZA80..RHD BLACK,202 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-14110B1 |
JZA80..RHD SILVER ME,199 |
1 | ||
| 69220-14110A0 |
JZA80..RHD SUPER WHITE 2,040 |
1 | ||
| 69220-14110B0 |
JZA80..RHD DARK BROWNISH YELLOW,1A1 |
1 | ||
| 69220-14110H0 |
JZA80..RHD DEEP TEAL ME,752 |
1 | ||
| 69220-14110D0 |
JZA80..RHD SUPER RED 4,3L2 |
1 | ||
| 69220-14110C0 |
JZA80..RHD BLACK,202 |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-14050C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-14020C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-30030 |
JZA80 |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-14240 |
JZA80..RHD |
1 | ||
| 69317A - SPACER, DOOR LOCK | ||||
| 69317-14010 |
JZA80 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-14220 |
JZA80..RHD |
1 | ||
| 69391A - COVER, FRONT DOOR LOCK, OUTER RH | ||||
| 69391-14010 |
JZA80 |
1 | ||
| 69392 - COVER, FRONT DOOR LOCK, OUTER LH | ||||
| 69392-14010 |
JZA80 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-30040 |
JZA80 |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-30010 |
JZA80 |
2 | ||
| 69615 - PLATE, DOOR LOCK REMOTE CONTROL BASE, RH | ||||
| 69615-14020 |
JZA80 |
1 | ||
| 69616 - PLATE, DOOR LOCK REMOTE CONT BASE, LH | ||||
| 69616-14020 |
JZA80 |
1 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69710-14090 |
JZA80..RHD |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69710-14080 |
JZA80..RHD |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-30040 |
JZA80 |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-14030 |
JZA80 |
2 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14060 |
JZA80 |
2 | ||
| Common parts | ||||
| 90148-60003 | ||||
| 90148-60004 | ||||
| 90159-60303 | ||||
| 90168-40006 | ||||
| 90189-06128 | ||||
| 90901-48001 | ||||
| 93382-16012 | ||||
| 93520-54016 | ||||
