JZA80R-ALMVF (1993)
Toyota Supra
Production
May 1993
-
Aug 1994
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

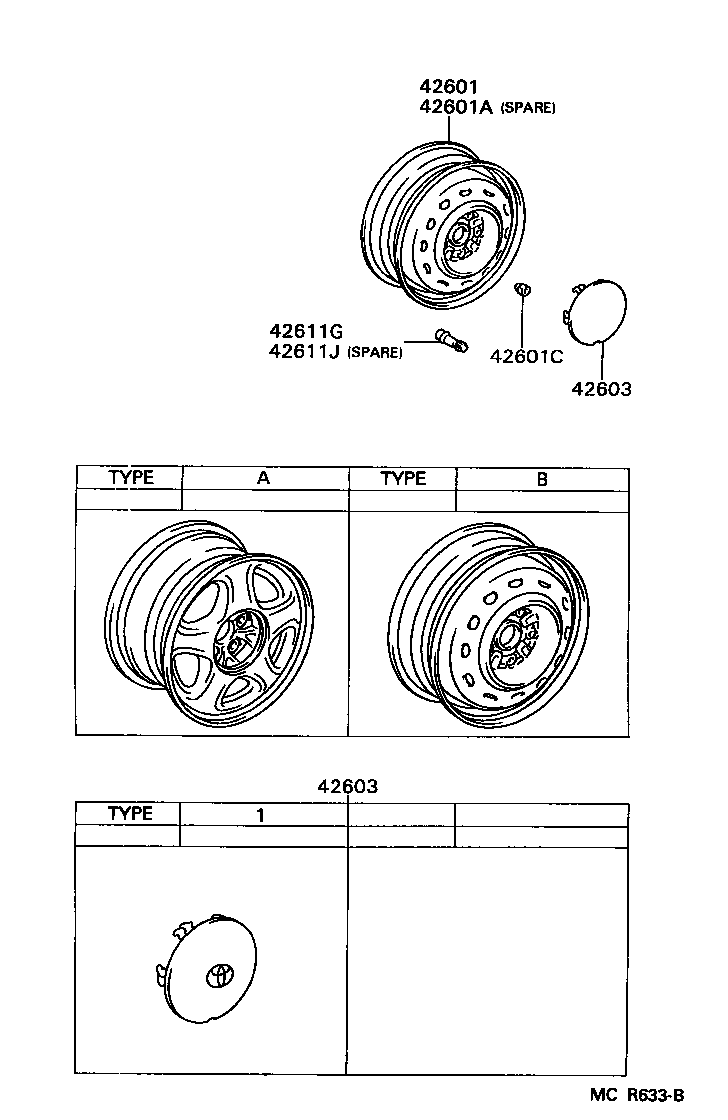

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-1B010 |
JZA80..GCC,GEN 16X8JJ,16X8JJ,TYPE A |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-1B010 |
JZA80..GEN 16X8JJ,16X8JJ,TYPE A |
1 | ||
| 42611-50090 |
JZA80..EUR,GEN 17X4T,17X4T,TYPE B |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01062 |
JZA80 |
20 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-14320 |
JZA80 |
4 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-14320 |
JZA80 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
JZA80 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
JZA80 |
1 | ||
(9305- )

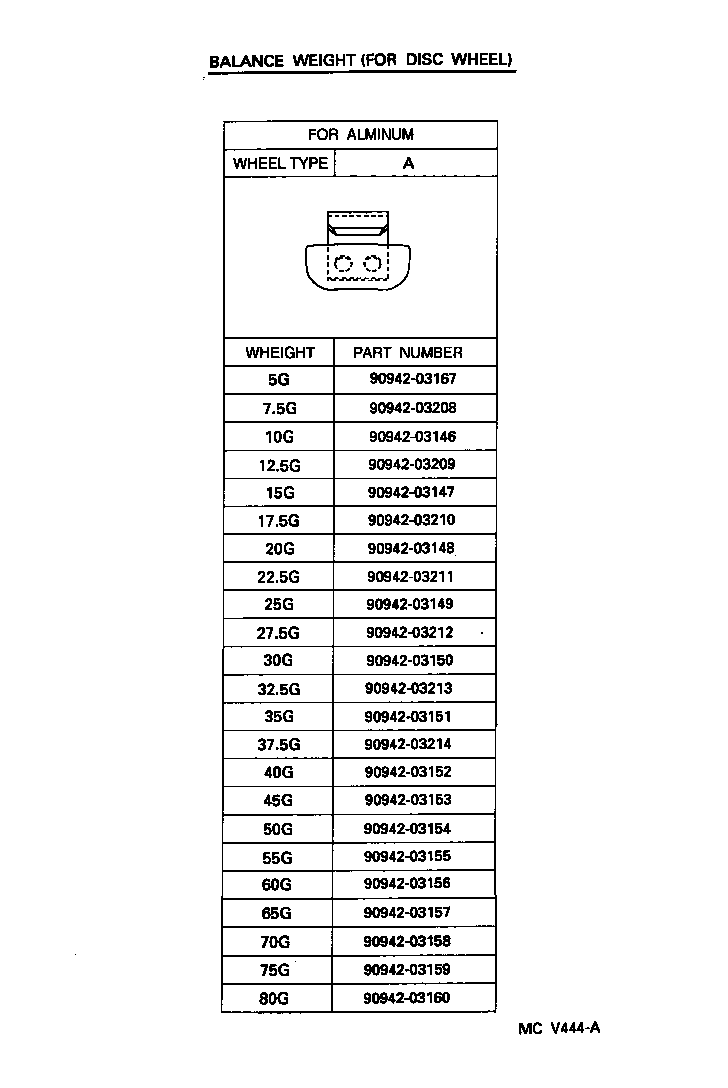

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03157 | ||||
| 90942-03158 | ||||
| 90942-03159 | ||||
| 90942-03160 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
