JZA80R-AJPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

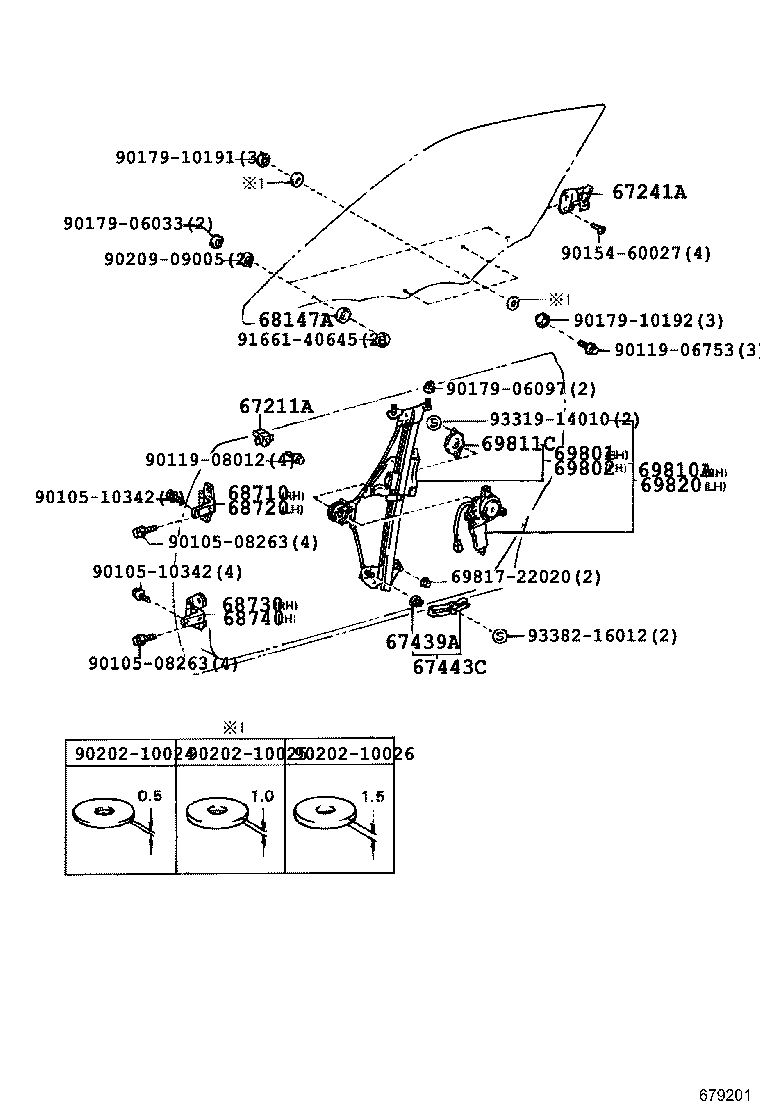

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67211A - STOP, FRONT DOOR WINDOW, UPPER | ||||
| 67211-30070 |
JZA80 |
4 | ||
| 67241A - STABILIZER, DOOR GLASS, INNER | ||||
| 67235-14050 |
JZA80 RH |
1 | ||
| 67236-14020 |
JZA80 LH |
1 | ||
| 67439A - SNAP, FRONT DOOR WINDOW GUIDE | ||||
| 67439-12020 |
JZA80 |
2 | ||
| 67443C - PLATE, FRONT DOOR WINDOW GUIDE, LOWER | ||||
| 67443-14030 |
JZA80 |
2 | ||
| 68147A - STOP, FRONT DOOR GLASS, UPPER | ||||
| 68147-30020 |
JZA80 |
4 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-30150 |
JZA80 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-30070 |
JZA80 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-30120 |
JZA80 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68730-30120 |
JZA80 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-14110 |
JZA80 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-14110 |
JZA80 |
1 | ||
| 69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-14190 |
JZA80 |
1 | ||
| 69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE | ||||
| 69813-32030 |
JZA80 |
2 | ||
| 69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-14180 |
JZA80 |
1 | ||
| Common parts | ||||
| 69817-22020 | ||||
| 90105-08263 | ||||
| 90105-10342 | ||||
| 90119-06753 | ||||
| 90119-08012 | ||||
| 90154-60027 | ||||
| 90179-06033 | ||||
| 90179-06097 | ||||
| 90179-10191 | ||||
| 90179-10192 | ||||
| 90202-10024 | ||||
| 90202-10025 | ||||
| 90202-10026 | ||||
| 90209-09005 | ||||
| 91661-40645 | ||||
| 93319-14010 | ||||
| 93382-16012 | ||||
