JZA80R-AJPVZW (1993)
Toyota Supra

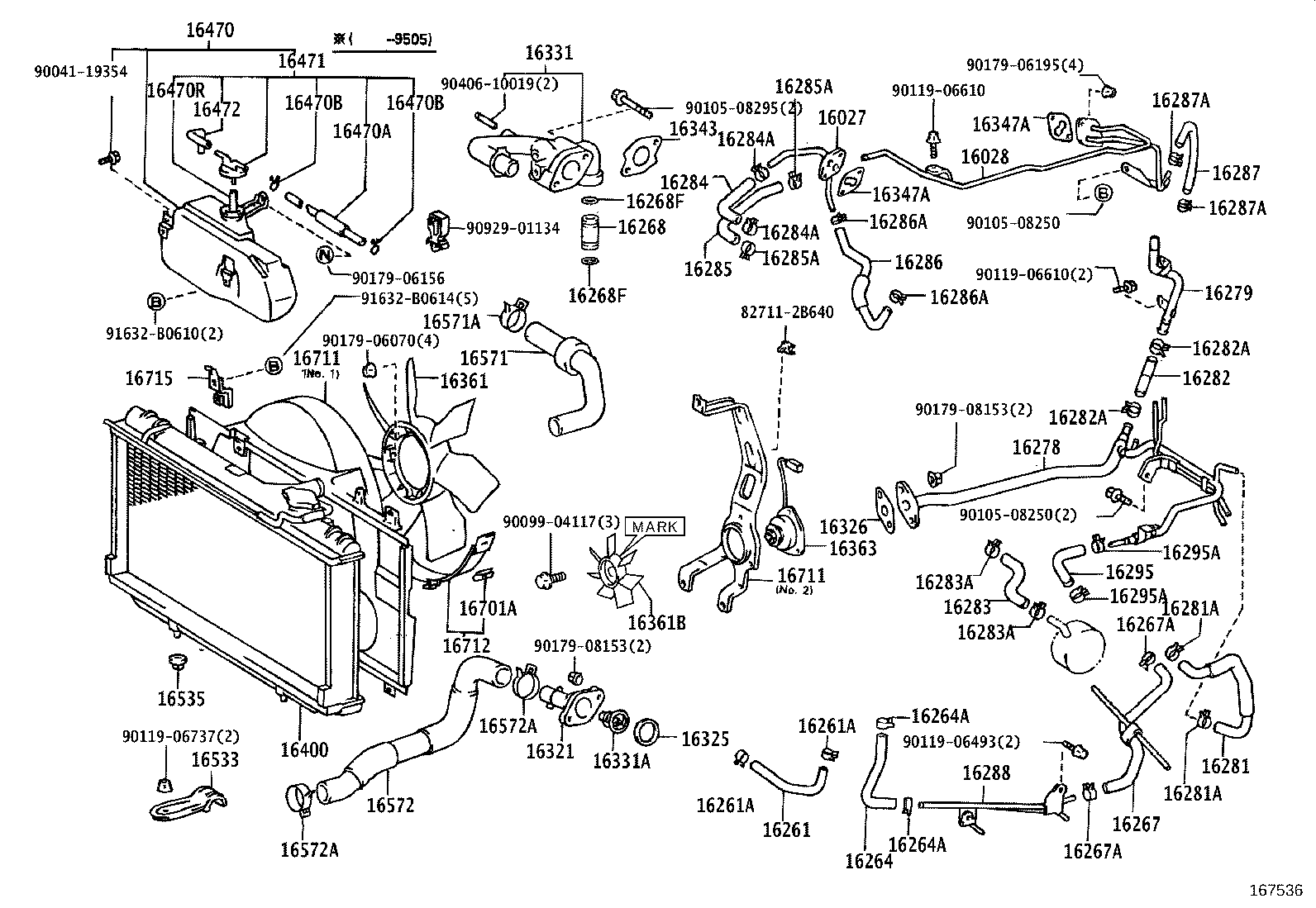

ILLUST NO. 1 OF 2(9305- )2JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-46020 |
2JZGTE..JZA80 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-46020 |
2JZGTE..JZA80 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-46040 |
2JZGTE..JZA80 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
2JZ#..JZA80 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
2JZ#..JZA80 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-46030 |
2JZGTE..JZA80 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
2JZ#..JZA80 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
2JZ#..JZA80 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-46011 |
2JZGTE..JZA80 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13050 |
2JZGTE..JZA80 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13050 |
2JZGTE..JZA80 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-46020 |
2JZGTE..JZA80 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24023 |
2JZGTE..JZA80 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24023 |
2JZGTE..JZA80 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-46030 |
2JZGTE..JZA80 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-46010 |
2JZGTE..JZA80 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-46020 |
2JZGTE..JZA80 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
2JZGTE..JZA80 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
2JZGTE..JZA80 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-46010 |
2JZGTE..JZA80 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
2JZGTE..JZA80 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
2JZGTE..JZA80 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-46030 |
2JZ#..JZA80 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-20005 |
2JZ#..JZA80 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-20005 |
2JZ#..JZA80 |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-46020 |
2JZGTE..JZA80 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
2JZGTE..JZA80 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
2JZGTE..JZA80 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16284-46020 |
2JZGTE..JZA80 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15016 |
2JZGTE..JZA80 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15016 |
2JZGTE..JZA80 |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-46010 |
2JZGTE..JZA80 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15016 |
2JZGTE..JZA80 |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15016 |
2JZGTE..JZA80 |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-46010 |
2JZGTE..JZA80 |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-15016 |
2JZGTE..JZA80 |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-15016 |
2JZGTE..JZA80 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-46011 |
2JZGTE..JZA80 |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-46040 |
2JZ#..JZA80 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-20005 |
2JZ#..JZA80 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-20005 |
2JZ#..JZA80 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-46050 |
2JZGTE..JZA80 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2JZ#..JZA80 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-46010 |
2JZ#..JZA80 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-46050 |
2JZGTE..JZA80 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
2JZ#..JZA80 *WAX 82-95 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-46030 |
2JZGTE..JZA80 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-42020 |
2JZGTE..JZA80 |
2 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-42020 |
2JZGTE..JZA80 |
2 | ||
| 16361 - FAN | ||||
| 16361-46060 |
2JZGTE..JZA80 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-74040 |
2JZ#..JZA80..EUR,GCC MARK=167 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-46060 |
2JZ#..JZA80..EUR,GCC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-46320 |
2JZ#..JZA80..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-46110 |
2JZGTE..JZA80 |
1 | ||
| 16470-46130 |
2JZGTE..JZA80 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
2JZ#..JZA80 L=1000 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2JZ#..JZA80 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2JZ#..JZA80 |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2JZ#..JZA80 L=600 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-46100 |
2JZ#..JZA80 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-73012 |
2JZ#..JZA80 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-46040 |
2JZ#..JZA80 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40012 |
2JZ#..JZA80 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-46150 |
2JZGTE..JZA80 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
2JZ#..JZA80 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-46160 |
2JZ#..JZA80 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37006 |
2JZ#..JZA80 RADIATOR SIDE |
1 | ||
| 90467-41007 |
2JZGTE..JZA80 ENGINE SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37006 |
2JZ#..JZA80 RADIATOR SIDE |
1 | ||
| 90467-41007 |
2JZGTE..JZA80 ENGINE SIDE |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-05109 |
2JZ#..JZA80 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-46170 |
2JZ#..JZA80..EUR,GCC NO.2 |
1 | ||
| 16711-46160 |
2JZ#..JZA80..EUR,GCC NO.1 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-46170 |
2JZ#..JZA80..EUR,GCC NO.2 |
1 | ||
| 16711-46160 |
2JZ#..JZA80..EUR,GCC NO.1 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16702-46010 |
2JZ#..JZA80 |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-46010 |
2JZ#..JZA80 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90041-19354 | ||||
| 90099-04117 | ||||
| 90105-08250 | ||||
| 90105-08295 | ||||
| 90119-06493 | ||||
| 90119-06610 | ||||
| 90119-06737 | ||||
| 90179-06070 | ||||
| 90179-06156 | ||||
| 90179-06195 | ||||
| 90179-08153 | ||||
| 90406-10019 | ||||
| 90929-01134 | ||||
| 91632-B0610 | ||||
| 91632-B0614 | ||||
