JZA80R-AJPVZW (1993)

Toyota Supra

Production May 1993 - Jan 1996
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

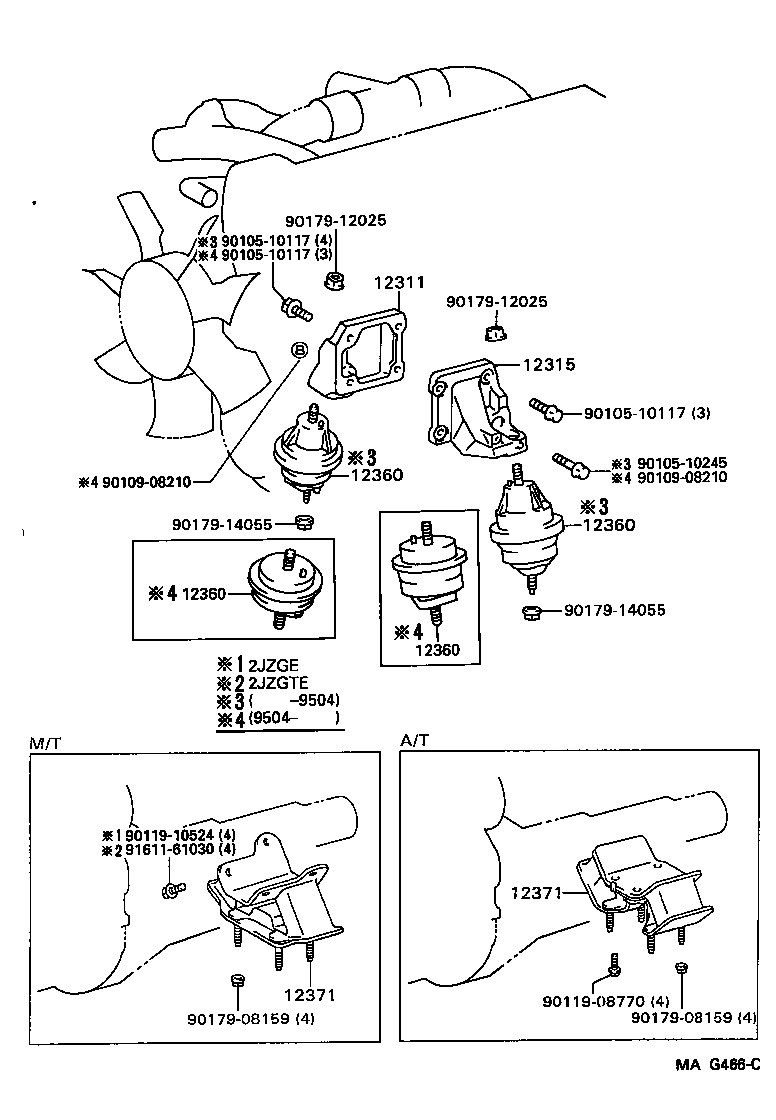

Click highlighted areas on diagram

diagram 12311 12315 12360 12360 12360 12360 12371 12371 9010510117 9010510117 9010510117 9010510245 9010908210 9010908210 9011908770 9011910524 9017908159 9017908159 9017912025 9017912025 9017914055 9017914055 9161161030
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-46090

2JZ#..JZA80

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-46090

2JZ#..JZA80

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46070

2JZ#..JZA80

 2
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46070

2JZ#..JZA80

 2
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46070

2JZ#..JZA80

 2
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46070

2JZ#..JZA80

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46120

2JZGTE..JZA80..4FC

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46120

2JZGTE..JZA80..4FC

 1
Common parts
90105-10117
90105-10245
90109-08210
90119-08770
90119-10524
90179-08159
90179-12025
90179-14055
91611-61030
