JZA80R-AJFVZW (1993)

Toyota Supra

Production May 1993 - Jan 1996
Engine 2JZGTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )EUR

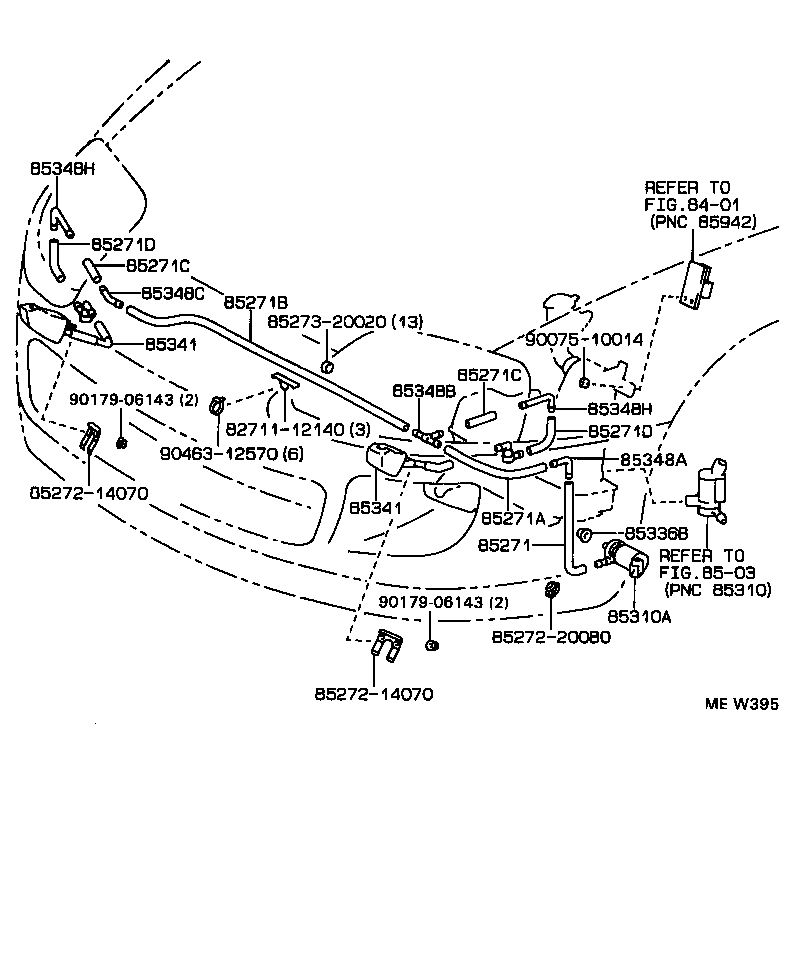

Click highlighted areas on diagram

diagram 8271112140 8401 8503 85271 85271A 85271B 85271C 85271C 85271D 85271D 8527214070 8527214070 8527220080 8527320020 85310A 85336B 85341 85341 85348A 85348B 85348C 85348H 85348H 9007510014 9017906143 9017906143 9046312570
Part # Description Qty Price
85271 - HOSE, HEADLAMP CLEANER, NO.1
85276-60160

JZA80..RHD..EUR

L=180

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85375-22061

JZA80..RHD..EUR

L=640

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90445-14072

JZA80..RHD..EUR

L=1320

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
90445-14055

JZA80..RHD..EUR

*H,L=60

 2
85271C - HOSE, HEADLAMP CLEANER, NO.4
90445-14055

JZA80..RHD..EUR

*H,L=60

 2
85271D - HOSE, HEADLAMP CLEANER, NO.5
85271-20020

JZA80..RHD..EUR

L=500

 2
85271D - HOSE, HEADLAMP CLEANER, NO.5
85271-20020

JZA80..RHD..EUR

L=500

 2
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85280-30020

JZA80..RHD..EUR

 1
85336B - PACKING, HEADLAMP CLEANER WASHER
85336-10010

JZA80..RHD..EUR

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85045-14020

JZA80..RHD..EUR

LH

 1
85044-14020

JZA80..RHD..EUR

RH

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85045-14020

JZA80..RHD..EUR

LH

 1
85044-14020

JZA80..RHD..EUR

RH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85379-22080

JZA80..RHD..EUR

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85352-12010

JZA80..RHD..EUR

 1
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
85279-14160

JZA80..RHD..EUR

 1
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
85279-30010

JZA80..RHD..EUR

 2
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
85279-30010

JZA80..RHD..EUR

 2
Common parts
82711-12140
85272-14070
85272-20080
85273-20020
90075-10014
90179-06143
90463-12570
Linked diagrams
8401
8503
