JZA80R-AJFVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

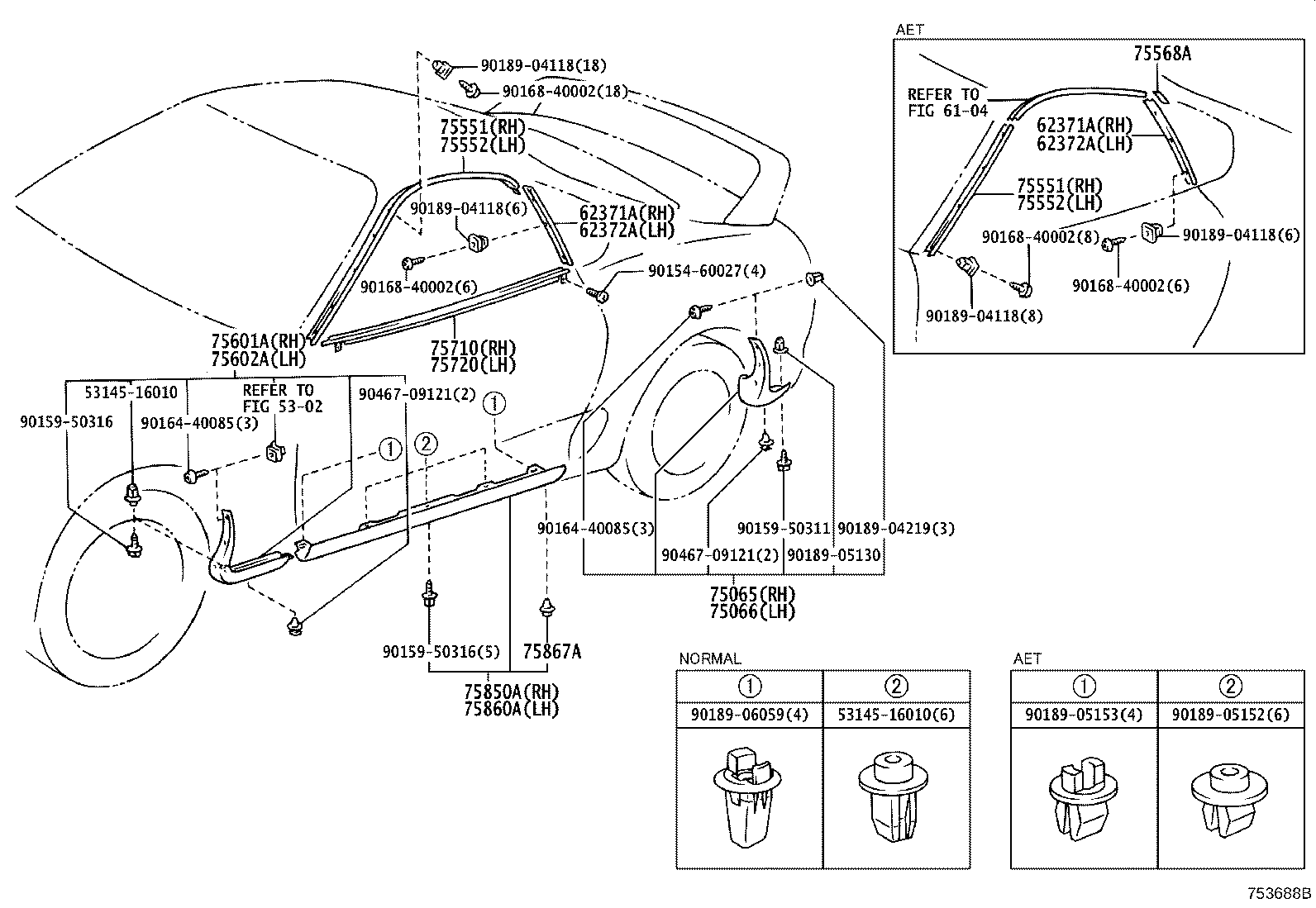

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62371A - RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH | ||||
| 62371-14080 |
JZA80 |
1 | ||
| 62371A - RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH | ||||
| 62371-14080 |
JZA80 |
1 | ||
| 62372A - RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH | ||||
| 62372-14080 |
JZA80 |
1 | ||
| 62372A - RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH | ||||
| 62372-14080 |
JZA80 |
1 | ||
| 75065 - MOULDING SUB-ASSY, QUARTER, LOWER RH | ||||
| 75065-19045 |
JZA80 |
1 | ||
| 75066 - MOULDING SUB-ASSY, QUARTER, LOWER LH | ||||
| 75066-19045 |
JZA80 |
1 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-14160 |
JZA80..AET |
1 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-14160 |
JZA80..AET |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-14160 |
JZA80..AET |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-14160 |
JZA80..AET |
1 | ||
| 75568A - SEAL, CENTER PILLAR OUTER GARNISH | ||||
| 75568-14030 |
JZA80..AET |
2 | ||
| 75601A - MOULDING SUB-ASSY, FRONT FENDER, RH | ||||
| 75601-19055 |
JZA80 |
1 | ||
| 75602A - MOULDING SUB-ASSY, FRONT FENDER, LH | ||||
| 75602-19055 |
JZA80 |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-14250 |
JZA80 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-14250 |
JZA80 |
1 | ||
| 75850A - MOULDING ASSY, BODY ROCKER PANEL, RH | ||||
| 75850-19175 |
JZA80 |
1 | ||
| 75860A - MOULDING ASSY, BODY ROCKER PANEL, LH | ||||
| 75860-19175 |
JZA80 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-14070 |
JZA80 |
14 | ||
| Common parts | ||||
| 53145-16010 | ||||
| 90154-60027 | ||||
| 90159-50311 | ||||
| 90159-50316 | ||||
| 90164-40085 | ||||
| 90168-40002 | ||||
| 90189-04118 | ||||
| 90189-04219 | ||||
| 90189-05130 | ||||
| 90189-05152 | ||||
| 90189-05153 | ||||
| 90189-06059 | ||||
| 90467-09121 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 6104 | ||||
