JZA80R-AJFVZW (1993)

Toyota Supra

Production May 1993 - Jan 1996
Engine 2JZGTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

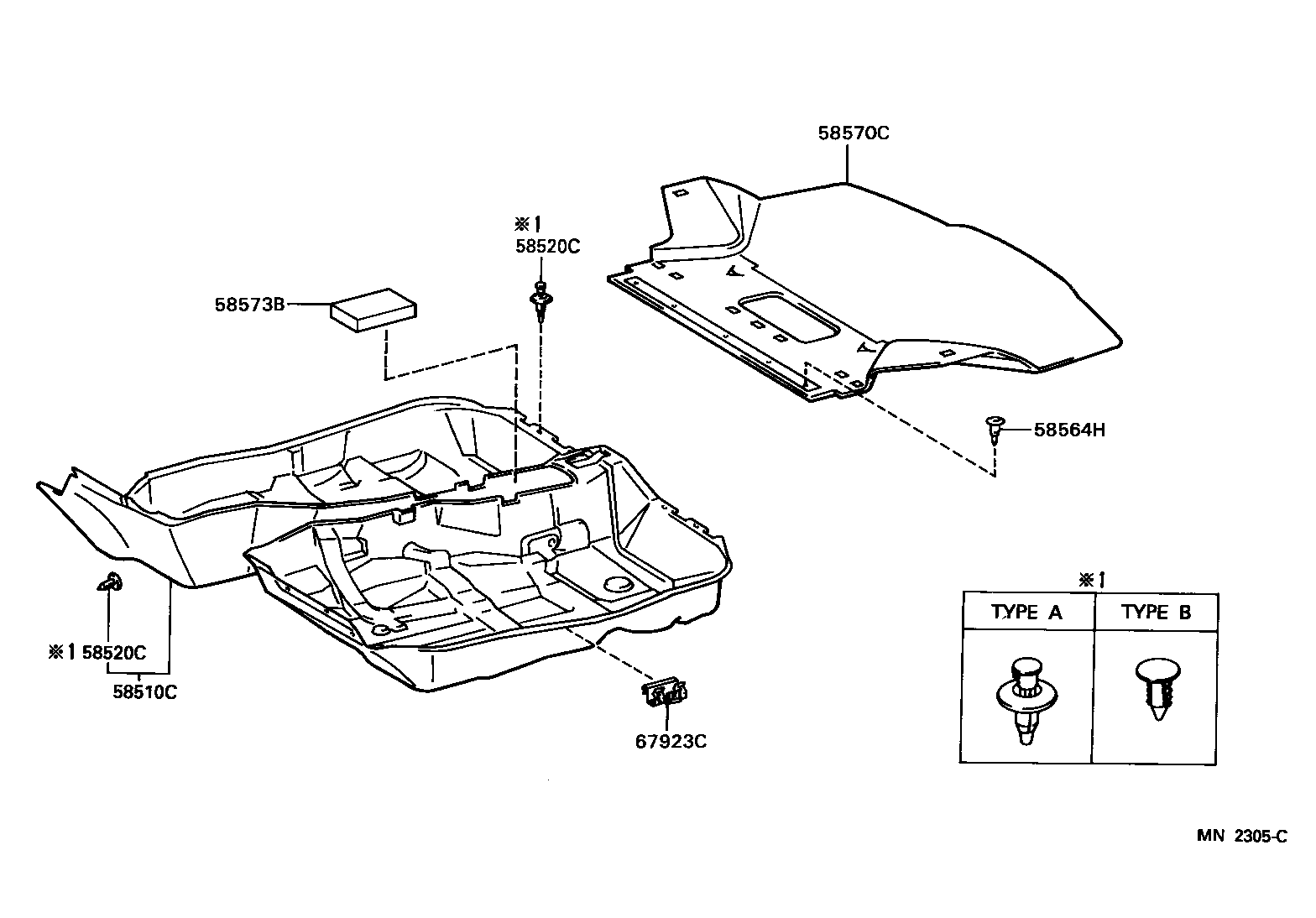

Click highlighted areas on diagram

diagram 58510C 58520C 58520C 58564H 58570C 58573B 67923C
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1B160C0

JZA80..RHD

BLACK,TRIM2#

 1
58510-1B160A0

JZA80..RHD

IVORY,TRIM0#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06166C0

JZA80..RHD

BLACK,TRIM0#,2#

 6
90467-06166A0

JZA80..LHD;JZA80..RHD..EUR

IVORY,TRIM0#

 6
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06166C0

JZA80..RHD

BLACK,TRIM0#,2#

 6
90467-06166A0

JZA80..LHD;JZA80..RHD..EUR

IVORY,TRIM0#

 6
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-07043C0

JZA80

BLACK,TRIM0#,2#

 4
58570C - CARPET ASSY, REAR FLOOR
58570-14371C1

JZA80..AET

BLACK,TRIM0#,2#

 1
58570-14370C0

JZA80..AET

BLACK,TRIM0#,2#

 1
58570-14371C1

JZA80..RHD..AET

BLACK,TRIM0#,2#

 1
67923C - CLAMP, DOOR SCUFF PLATE, NO.1
67923-14010

JZA80..AET

 10
