JZA80R-AJFVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305-9408)

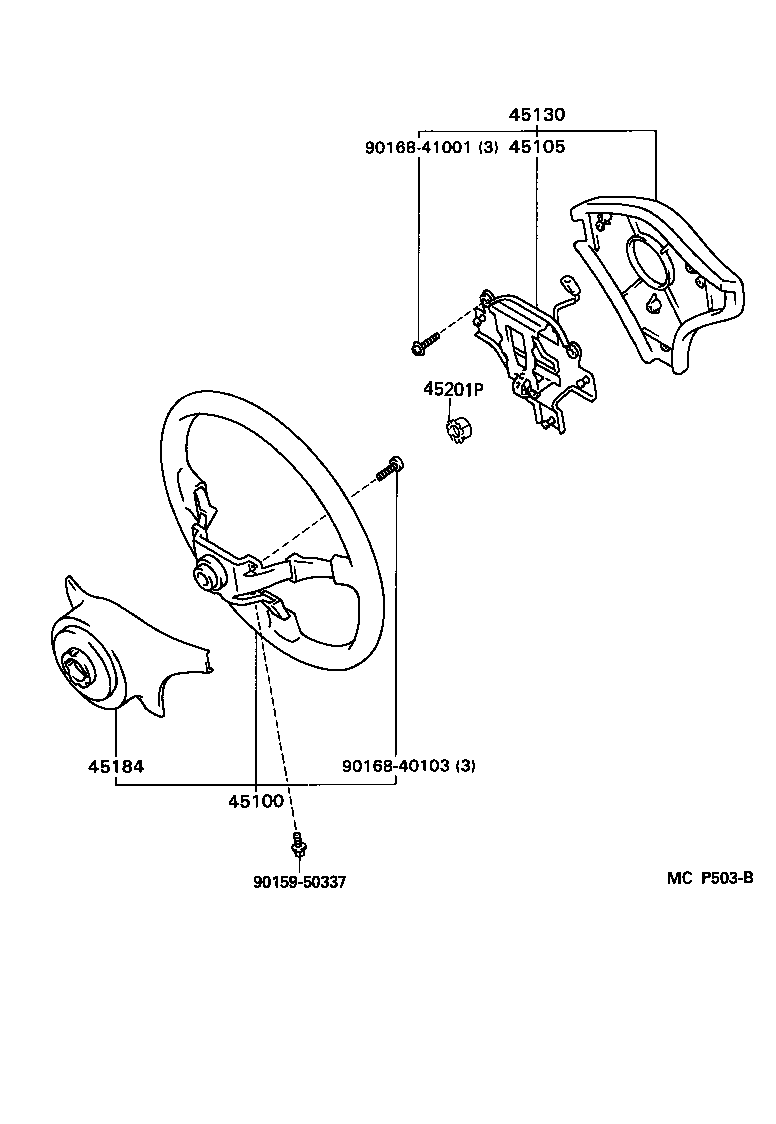

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-14550C0 |
JZA80..EUR 4-SPOKE,BLACK,TRIM0#,2# |
1 | ||
| 45100-14550C0 |
JZA80 4-SPOKE,BLACK,TRIM0#,2# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-14300C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 45130-14310C0 |
JZA80..EUR BLACK,TRIM0#,2# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
JZA80 |
1 | ||
| Common parts | ||||
| 90159-50337 | ||||
| 90168-40103 | ||||
| 90168-41001 | ||||
(9305- )

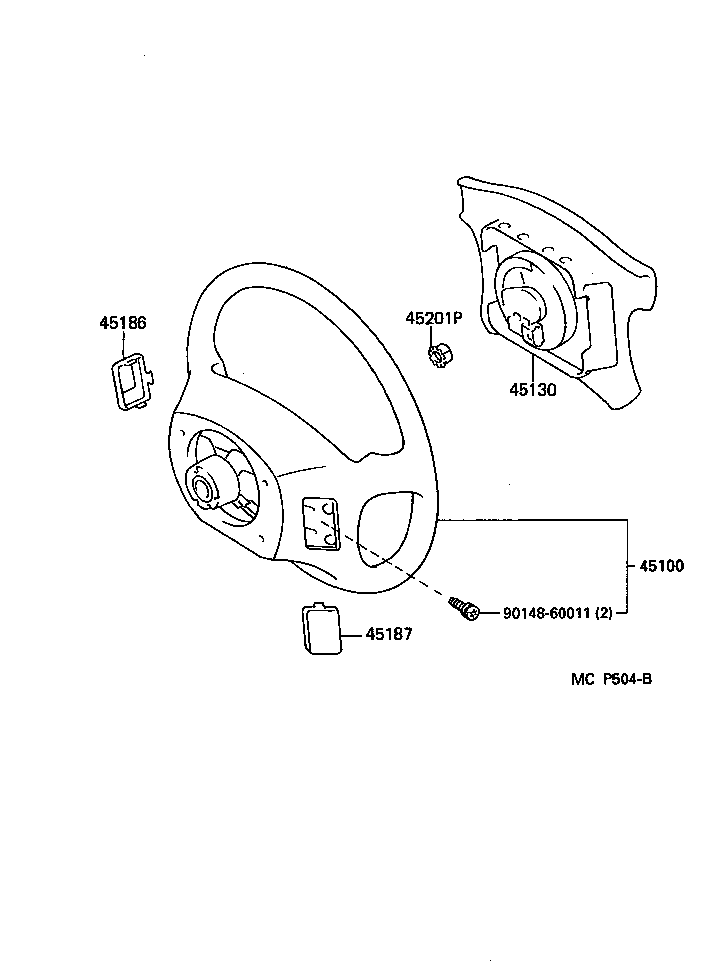

Click highlighted areas on diagram
W(SRS AIR BAG SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-14550C0 |
JZA80..EUR 4-SPOKE,BLACK,TRIM0#,2# |
1 | ||
| 45100-14550C0 |
JZA80 4-SPOKE,BLACK,TRIM0#,2# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-14300C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 45130-14310C0 |
JZA80..EUR BLACK,TRIM0#,2# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-14020C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-14020C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
JZA80 |
1 | ||
| Common parts | ||||
| 90148-60011 | ||||
