JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

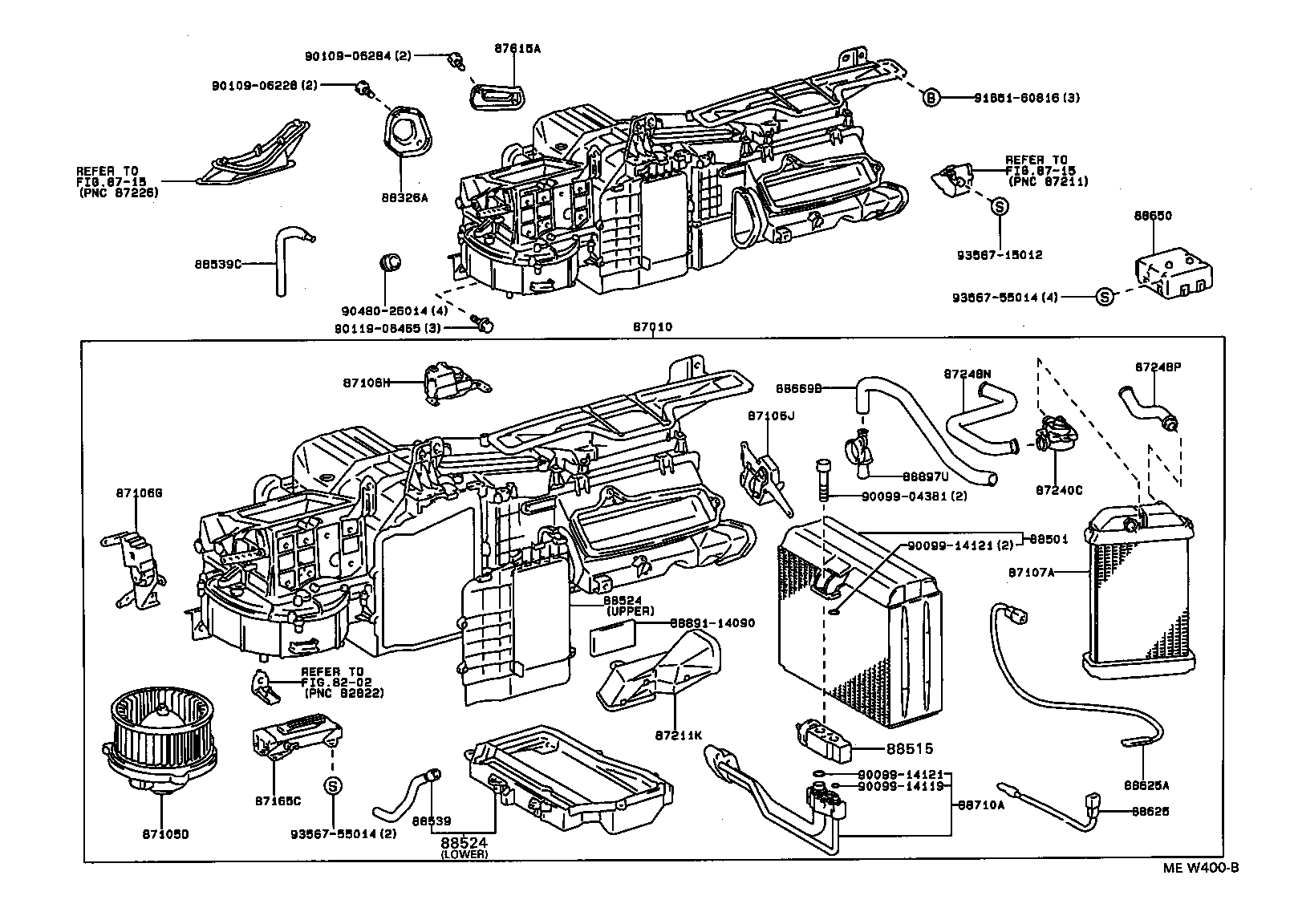

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-14020 |
JZA80..LHD |
1 | ||
| 87105D - FAN SUB-ASSY, BLOWER | ||||
| 87105-14050 |
JZA80..LHD |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-14110 |
JZA80..LHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-14120 |
JZA80..LHD |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-14130 |
JZA80..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-14200 |
JZA80..LHD |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-14010 |
JZA80 |
1 | ||
| 87211K - DUCT, AIR | ||||
| 87211-14100 |
JZA80..LHD |
1 | ||
| 87240C - VALVE ASSY, HEATER WATER | ||||
| 87240-14160 |
JZA80..LHD |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87248-14250 |
JZA80..LHD |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87248-14260 |
JZA80..LHD |
1 | ||
| 87615A - RETAINER, INSULATOR | ||||
| 87615-24020 |
JZA80..LHD |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-24020 |
JZA80..LHD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-14250 |
JZA80..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
JZA80 |
1 | ||
| 88524 - PANEL, COOLING BOX, BOTTOM | ||||
| 88524-14040 |
JZA80..LHD UPPER |
1 | ||
| 88524-14020 |
JZA80..LHD LOWER |
1 | ||
| 88524 - PANEL, COOLING BOX, BOTTOM | ||||
| 88524-14040 |
JZA80..LHD UPPER |
1 | ||
| 88524-14020 |
JZA80..LHD LOWER |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-14120 |
JZA80..LHD |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-14110 |
JZA80..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-14120 |
JZA80 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88790-14130 |
JZA80 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14270 |
JZA80 |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-14040 |
JZA80..LHD |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-14120 |
JZA80..LHD |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-30730 |
JZA80..LHD |
1 | ||
| Common parts | ||||
| 88891-14090 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90109-06228 | ||||
| 90109-06284 | ||||
| 90119-06465 | ||||
| 90480-26014 | ||||
| 91651-60816 | ||||
| 93567-15012 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8715 | ||||
