JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

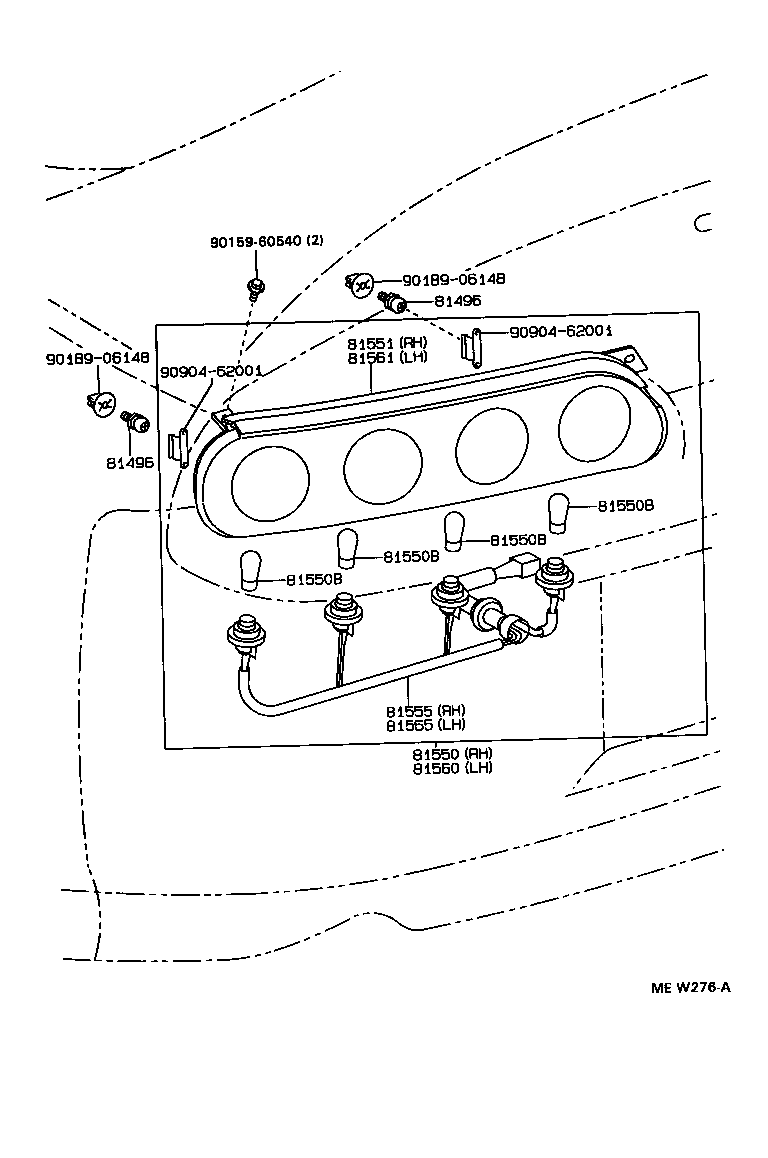

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-14010 |
JZA80 |
3 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-14010 |
JZA80 |
3 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-14680 |
JZA80..EUR |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
JZA80..EUR 12V 21W |
6 | ||
| 99132-21210 |
JZA80..EUR,GEN 12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
JZA80..EUR 12V 21W |
6 | ||
| 99132-21210 |
JZA80..EUR,GEN 12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
JZA80..EUR 12V 21W |
6 | ||
| 99132-21210 |
JZA80..EUR,GEN 12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
JZA80..EUR 12V 21W |
6 | ||
| 99132-21210 |
JZA80..EUR,GEN 12V 21/5W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-14680 |
JZA80..EUR |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-14680 |
JZA80..EUR |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-14680 |
JZA80..EUR |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-14680 |
JZA80..EUR |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-14680 |
JZA80..EUR |
1 | ||
| Common parts | ||||
| 90159-60540 | ||||
| 90189-06148 | ||||
| 90904-62001 | ||||
