JZA80L-ALPVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

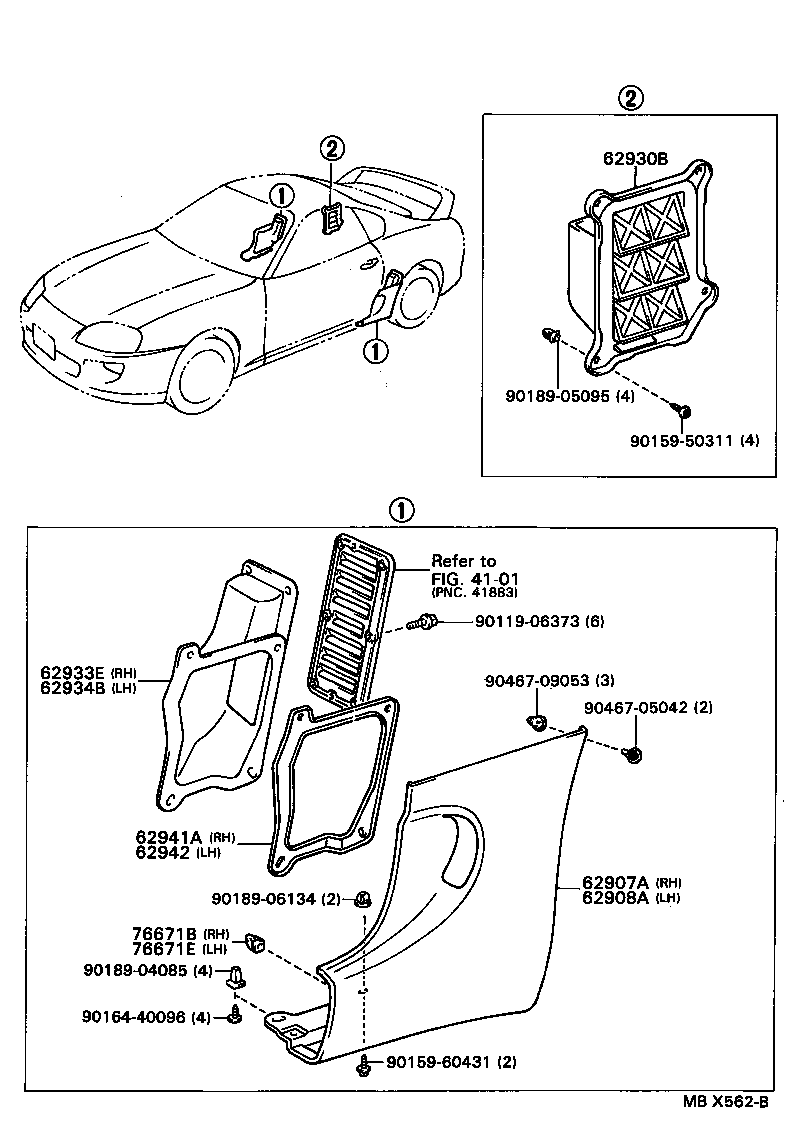

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62907A - GARNISH SUB-ASSY, QUARTER PANEL AIR INLET, RH | ||||
| 62907-14010B0 |
JZA80 DARK BR0WNISH GRAY M,1A1 |
1 | ||
| 62907-14010B1 |
JZA80 SILVER ME,199 |
1 | ||
| 62907-14010C0 |
JZA80 BLACK,202 |
1 | ||
| 62907-14010H0 |
JZA80 DEEP TEAL ME,752 |
1 | ||
| 62907-14010A0 |
JZA80 SUPER WHITE 2,040 |
1 | ||
| 62907-14010D0 |
JZA80 SUPER RED 4,3L2 |
1 | ||
| 62908A - GARNISH SUB-ASSY, QUARTER PANEL AIR INLET, LH | ||||
| 62908-14010B0 |
JZA80 DARK BROWNISH GRAY M,1A1 |
1 | ||
| 62908-14010B1 |
JZA80 SILVER ME,199 |
1 | ||
| 62908-14010A0 |
JZA80 SUPER WHITE 2,040 |
1 | ||
| 62908-14010H0 |
JZA80 DEEP TEAL ME,752 |
1 | ||
| 62908-14010C0 |
JZA80 BRACK,202 |
1 | ||
| 62908-14010D0 |
JZA80 SUPER RED 4,3L2 |
1 | ||
| 62930B - DUCT ASSY, QUARTER VENT, RH | ||||
| 62930-14050 |
JZA80 |
1 | ||
| 62933E - DUCT, QUARTER VENT, INNER RH | ||||
| 62933-14050 |
JZA80 |
1 | ||
| 62934B - DUCT, QUARTER VENT, INNER LH | ||||
| 62934-14050 |
JZA80 |
1 | ||
| 62941A - RETAINER, QUARTER VENT DUCT | ||||
| 62941-14020 |
JZA80 |
1 | ||
| 62942 - RETAINER, ROOF SIDE VENT DUCT, LH | ||||
| 62942-14020 |
JZA80 |
1 | ||
| 76671B - CLIP, QUARTER VENT DUCT RETAINER | ||||
| 76671-14020 |
JZA80 |
3 | ||
| 76671E - CLIP, QUARTER BELT MOULDING, NO.1, LH | ||||
| 76671-14020 |
JZA80 |
3 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90164-40096 | ||||
| 90189-04085 | ||||
| 90189-05095 | ||||
| 90189-06134 | ||||
| 90467-05042 | ||||
| 90467-09053 | ||||
| Linked diagrams | ||||
| 4101 | ||||
