JZA80L-ALMVFV (1993)
Toyota Supra
Production
May 1993
-
May 1996
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

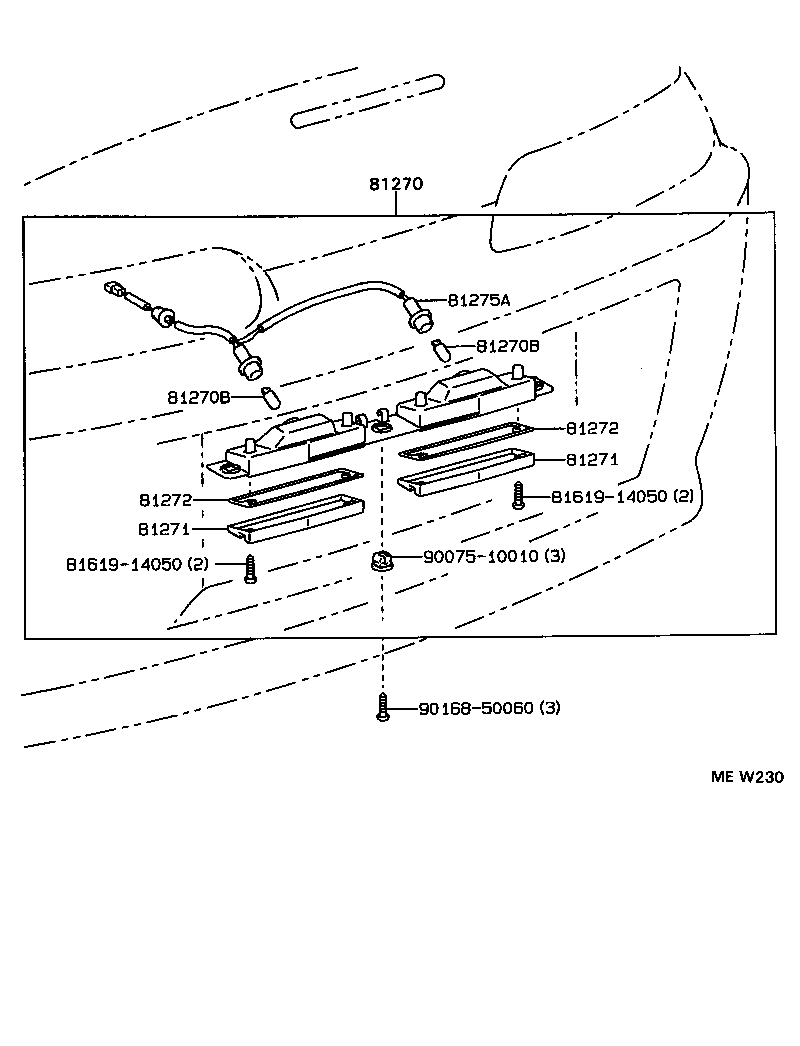

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-24030 |
JZA80 |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
JZA80 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
JZA80 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-17030 |
JZA80 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-17030 |
JZA80 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-17030 |
JZA80 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-17030 |
JZA80 |
2 | ||
| 81275A - CORD, LICENSE PLATE LAMP | ||||
| 81275-24030 |
JZA80 |
1 | ||
| Common parts | ||||
| 81619-14050 | ||||
| 90075-10010 | ||||
| 90168-50060 | ||||
