JZA80L-ALMVF (1993)
Toyota Supra
Production
May 1993
-
May 1996
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

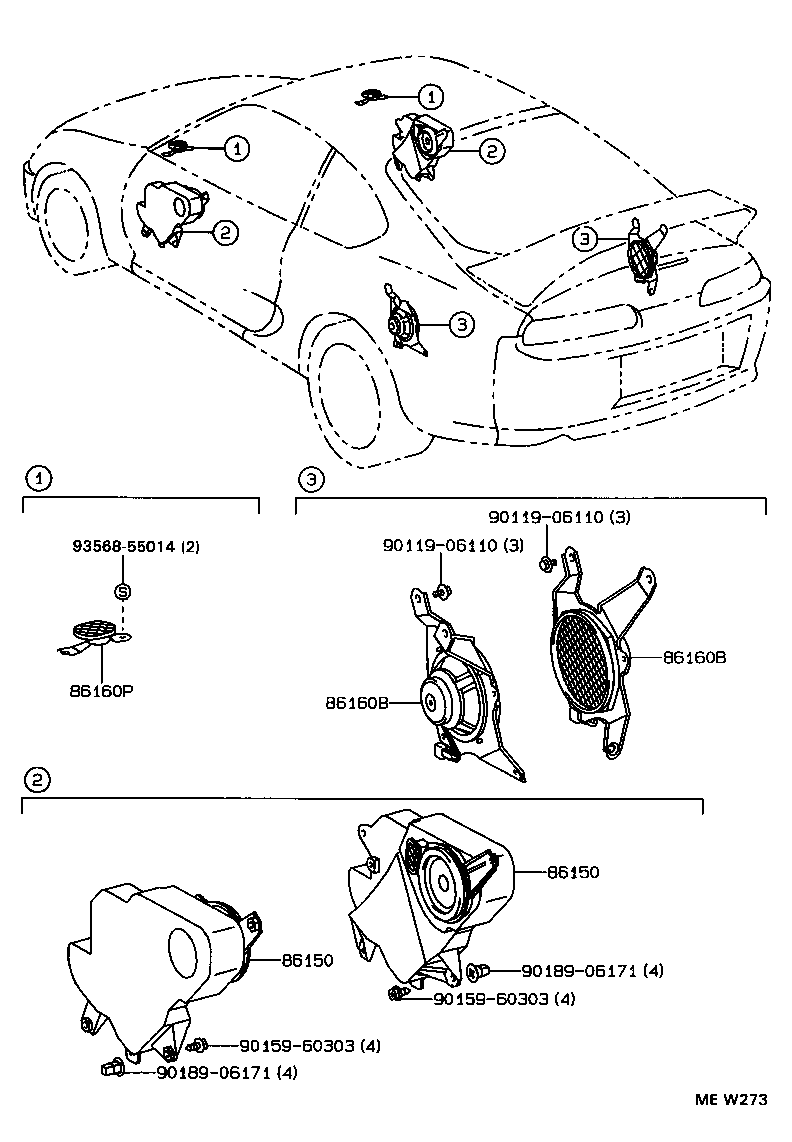

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-14130 |
JZA80 LH |
1 | ||
| 86150-14131 |
JZA80 LH |
1 | ||
| 86150-14121 |
JZA80 RH |
1 | ||
| 86150-14120 |
JZA80 RH |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-14130 |
JZA80 LH |
1 | ||
| 86150-14131 |
JZA80 LH |
1 | ||
| 86150-14121 |
JZA80 RH |
1 | ||
| 86150-14120 |
JZA80 RH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-14350 |
JZA80 LH |
1 | ||
| 86160-14340 |
JZA80 RH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-14350 |
JZA80 LH |
1 | ||
| 86160-14340 |
JZA80 RH |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-14330 |
JZA80 |
2 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90159-60303 | ||||
| 90189-06171 | ||||
| 93568-55014 | ||||
