JZA80L-ALMVF (1993)
Toyota Supra
Production
May 1993
-
May 1996
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

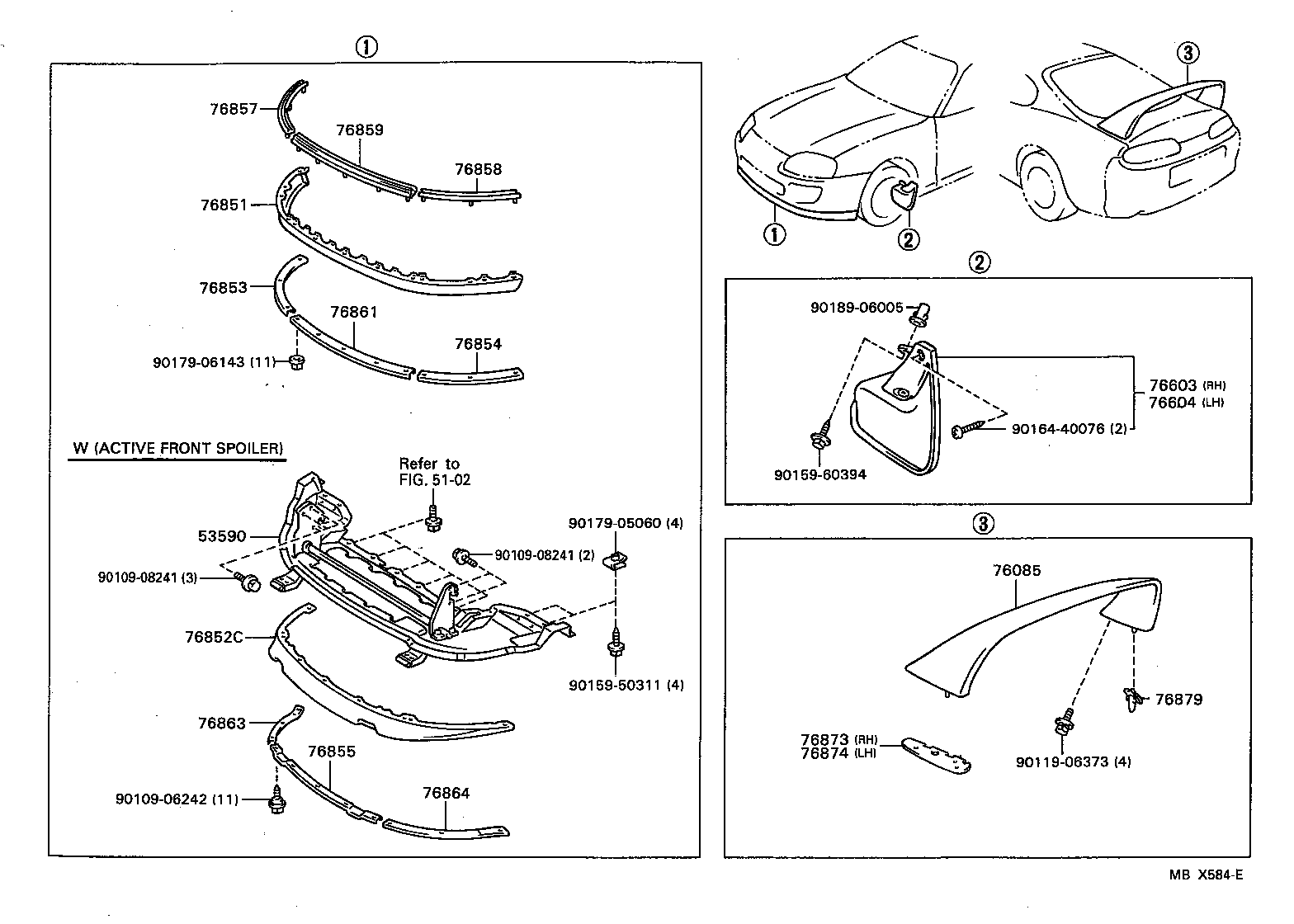

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-14909 |
JZA80 |
1 | ||
| 76851 - COVER, FRONT SPOILER | ||||
| 76851-14060 |
JZA80 |
1 | ||
| 76853 - RETAINER, FRONT SPOILER, UPPER RH | ||||
| 76853-14020 |
JZA80 |
1 | ||
| 76854 - RETAINER, FRONT SPOILER, UPPER LH | ||||
| 76854-14020 |
JZA80 |
1 | ||
| 76857 - RETAINER, FRONT SPOILER SIDE, RH | ||||
| 76857-14030 |
JZA80 |
1 | ||
| 76858 - RETAINER, FRONT SPOILER SIDE, LH | ||||
| 76858-14030 |
JZA80 |
1 | ||
| 76859 - RETAINER, FRONT SPOILER, UPPER NO.3 | ||||
| 76859-14010 |
JZA80 |
1 | ||
| 76861 - RETAINER, FRONT SPOILER, LOWER NO.1 | ||||
| 76861-14040 |
JZA80 |
1 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-14061 |
JZA80 |
1 | ||
| 76873-14060 |
JZA80 |
1 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-14060 |
JZA80 |
1 | ||
| 76874-14061 |
JZA80 |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-14040 |
JZA80 |
2 | ||
| Common parts | ||||
| 90109-06242 | ||||
| 90109-08241 | ||||
| 90119-06373 | ||||
| 90159-50311 | ||||
| 90159-60394 | ||||
| 90164-40076 | ||||
| 90179-05060 | ||||
| 90179-06143 | ||||
| 90189-06005 | ||||
| Linked diagrams | ||||
| 5102 | ||||
