JZA80L-ALMVF (1993)
Toyota Supra
Production
May 1993
-
May 1996
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )LB

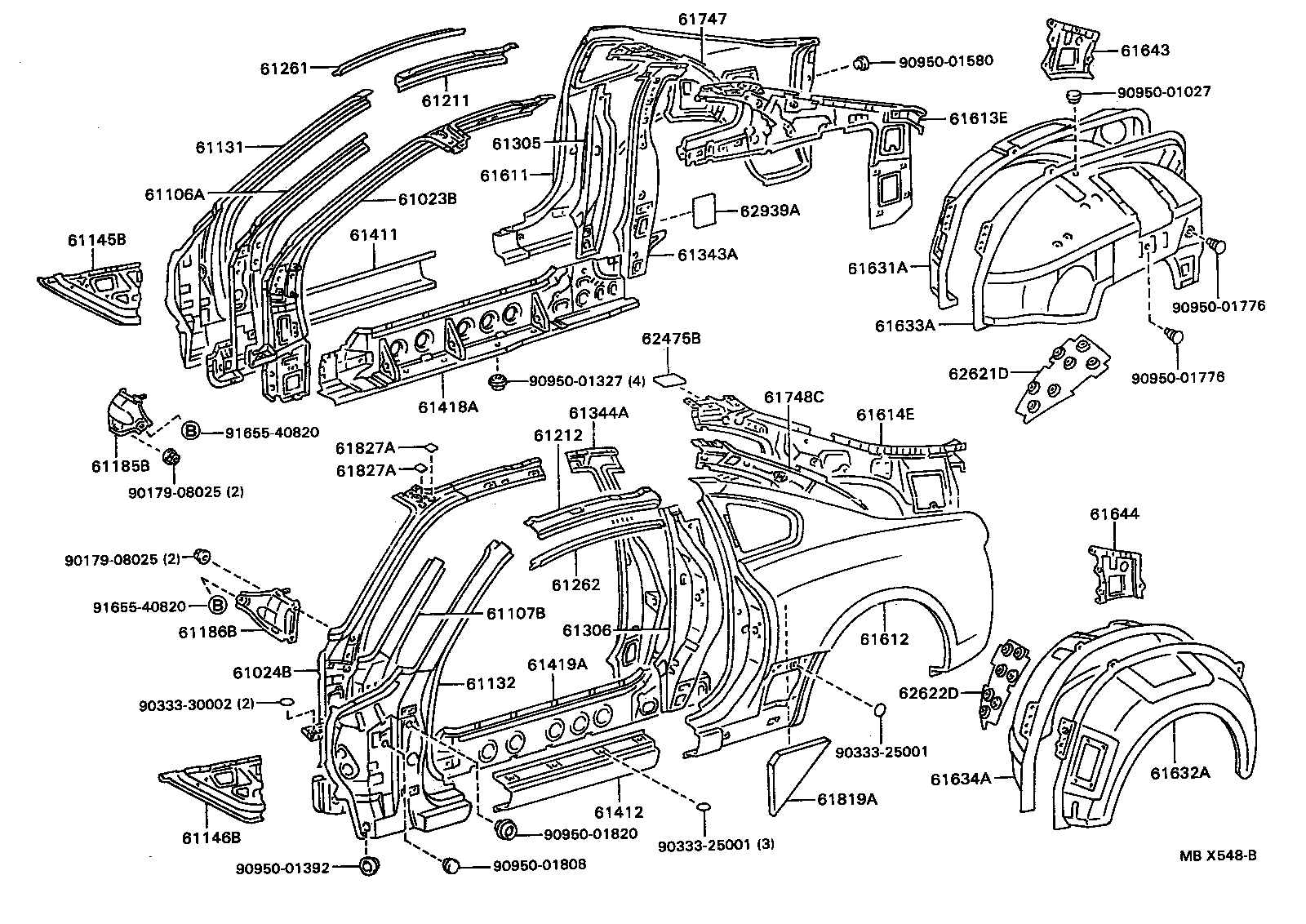

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-14902 |
JZA80..LB |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-14902 |
JZA80..LB |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-14080 |
JZA80..LB |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-14090 |
JZA80..LB |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-14260 |
JZA80..LHD |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-14230 |
JZA80..LHD |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-14030 |
JZA80 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-14030 |
JZA80 |
1 | ||
| 61185B - BRACKET, INSTRUMENT PANEL SIDE, NO.3 RH | ||||
| 61185-14010 |
JZA80..LHD |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-14160 |
JZA80..LB |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-14160 |
JZA80..LB |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-14090 |
JZA80..LB |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-14090 |
JZA80..LB |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-14030 |
JZA80 |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-14030 |
JZA80 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-14900 |
JZA80..LB |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-14900 |
JZA80..LB |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-14320 |
JZA80 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-14320 |
JZA80 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61401-14110 |
JZA80..LB |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61402-14110 |
JZA80..LB |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-1B120 |
JZA80 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-1B090 |
JZA80 |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-14900 |
JZA80 |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-14900 |
JZA80 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-14900 |
JZA80 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-14900 |
JZA80 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-14908 |
JZA80..LB |
1 | ||
| 61607-14910 |
JZA80..LB |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-14909 |
JZA80..LB |
1 | ||
| 61608-14911 |
JZA80..LB |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-14040 |
JZA80 |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61644-14040 |
JZA80 |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-14060 |
JZA80 |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-14070 |
JZA80 |
1 | ||
| 61819A - SEAL, ROOF SIDE INNER LOWER COVER | ||||
| 61819-14030 |
JZA80 |
2 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-14030 |
JZA80..LB |
4 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-14030 |
JZA80..LB |
4 | ||
| 62475B - SEAL, ROOF SIDE, INNER | ||||
| 62475-20240 |
JZA80 |
2 | ||
| 62621D - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-14010 |
JZA80 |
1 | ||
| 62622D - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62622-14010 |
JZA80 |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-32020 |
JZA80 |
4 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90950-01027 | ||||
| 90950-01327 | ||||
| 90950-01392 | ||||
| 90950-01580 | ||||
| 90950-01776 | ||||
| 90950-01808 | ||||
| 90950-01820 | ||||
| 91655-40820 | ||||
