JZA80L-ALFVZW (1993)

Toyota Supra

Production May 1993 - Jan 1996
Engine 2JZGTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )2JZGTE

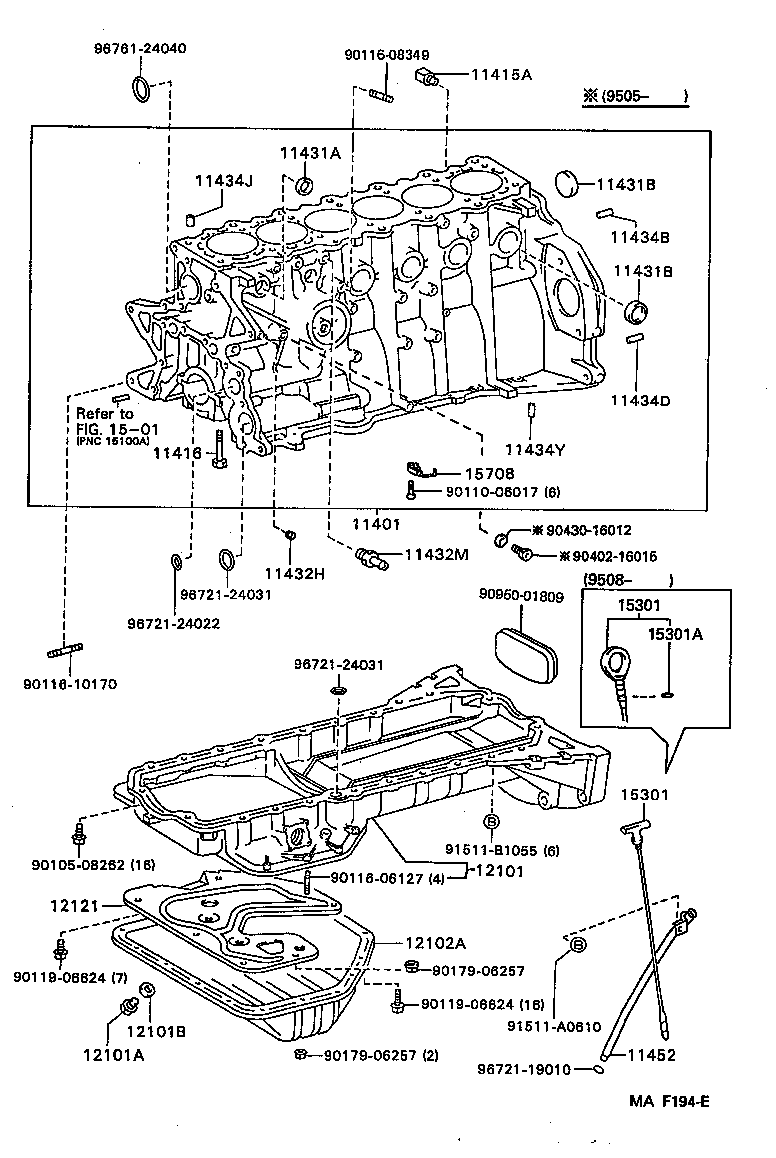

Click highlighted areas on diagram

diagram 11401 11415A 11416 11431A 11431B 11431B 11432H 11432M 11434B 11434D 11434J 11434Y 11452 12101 12101A 12101B 12102A 12121 1501 15301 15301 15301A 15708 9010508262 9011006017 9011606127 9011608349 9011610170 9011906624 9011906624 9017906257 9017906257 9040216015 9043016012 9095001809 91511A0610 91511B1055 9672119010 9672124022 9672124031 9672124031 9676124040
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49676

2JZGTE..JZA80

 1
11401-49677

2JZGTE..JZA80

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09102

2JZ#..JZA80

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02104

2JZ#..JZA80

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

2JZ#..JZA80

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

2JZ#..JZA80

 11
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

2JZ#..JZA80

 11
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-51005

2JZGTE..JZA80

 1
11432M - UNION(FOR CYLINDER BLOCK)
90404-53001

2JZ#..JZA80

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10192

2JZ#..JZA80

L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

2JZ#..JZA80

L=14,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14003

2JZ#..JZA80

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-10192

2JZ#..JZA80

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-46060

2JZGTE..JZA80

 1
12101 - PAN SUB-ASSY, OIL
12111-46051

2JZGTE..JZA80

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

2JZ#..JZA80

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

2JZ#..JZA80

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-46030

2JZ#..JZA80

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-46030

2JZ#..JZA80

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-46022

2JZ#..JZA80

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-46022

2JZ#..JZA80

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-88401

2JZGTE..JZA80

 6
Common parts
90105-08262
90110-06017
90116-06127
90116-08349
90116-10170
90119-06624
90179-06257
90402-16015
90430-16012
90950-01809
91511-A0610
91511-B1055
96721-19010
96721-24022
96721-24031
96761-24040
Linked diagrams
1501
