DB82R-ZSRW (2019)
Toyota Supra

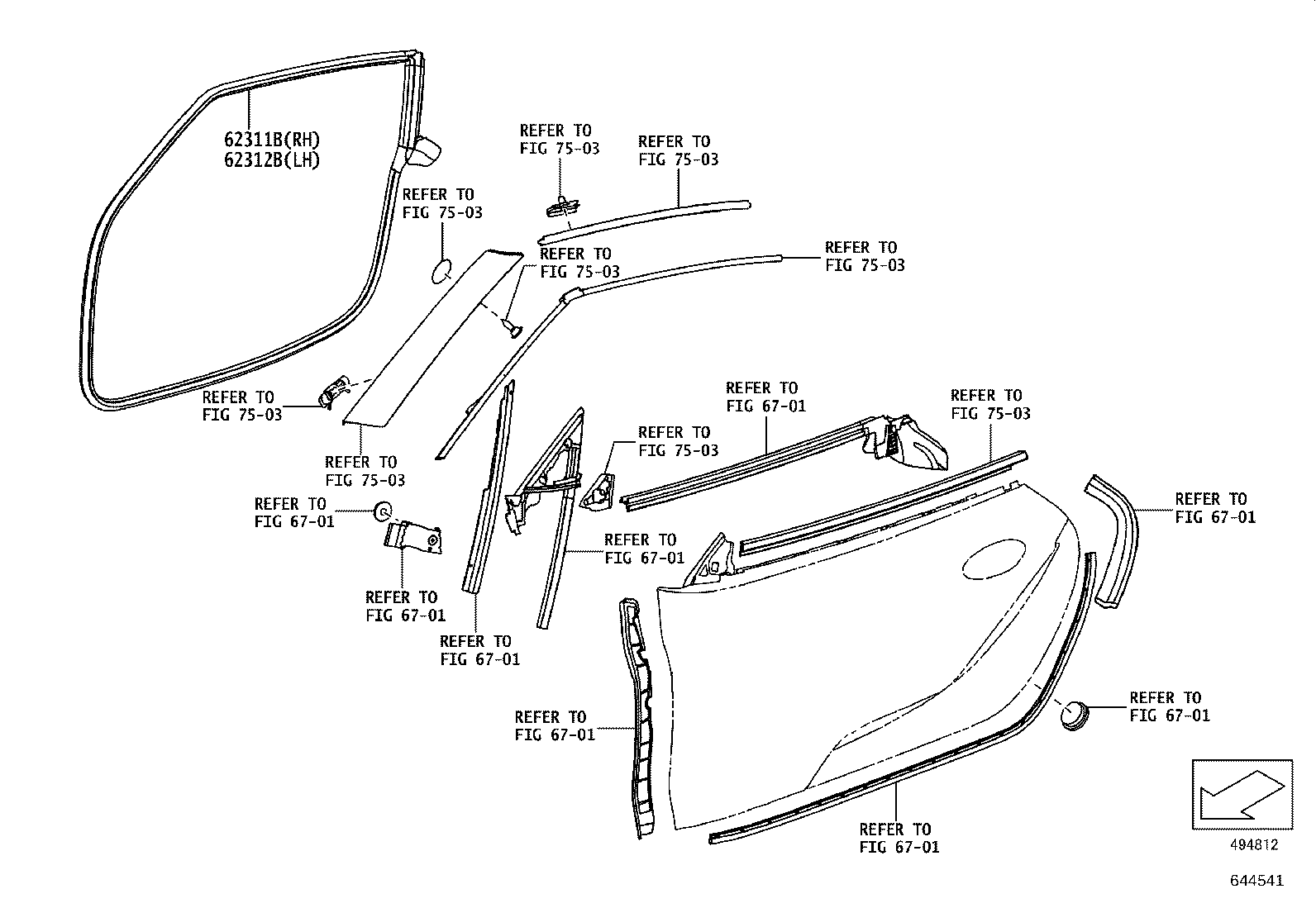

ILLUST NO. 1 OF 6(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-WAA01 |
DB2#,4#,81 |
1 | ||
| 62311-WAA01 |
DB82 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-WAA01 |
DB82 |
1 | ||
| 62312-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 6701 | ||||
| 7503 | ||||

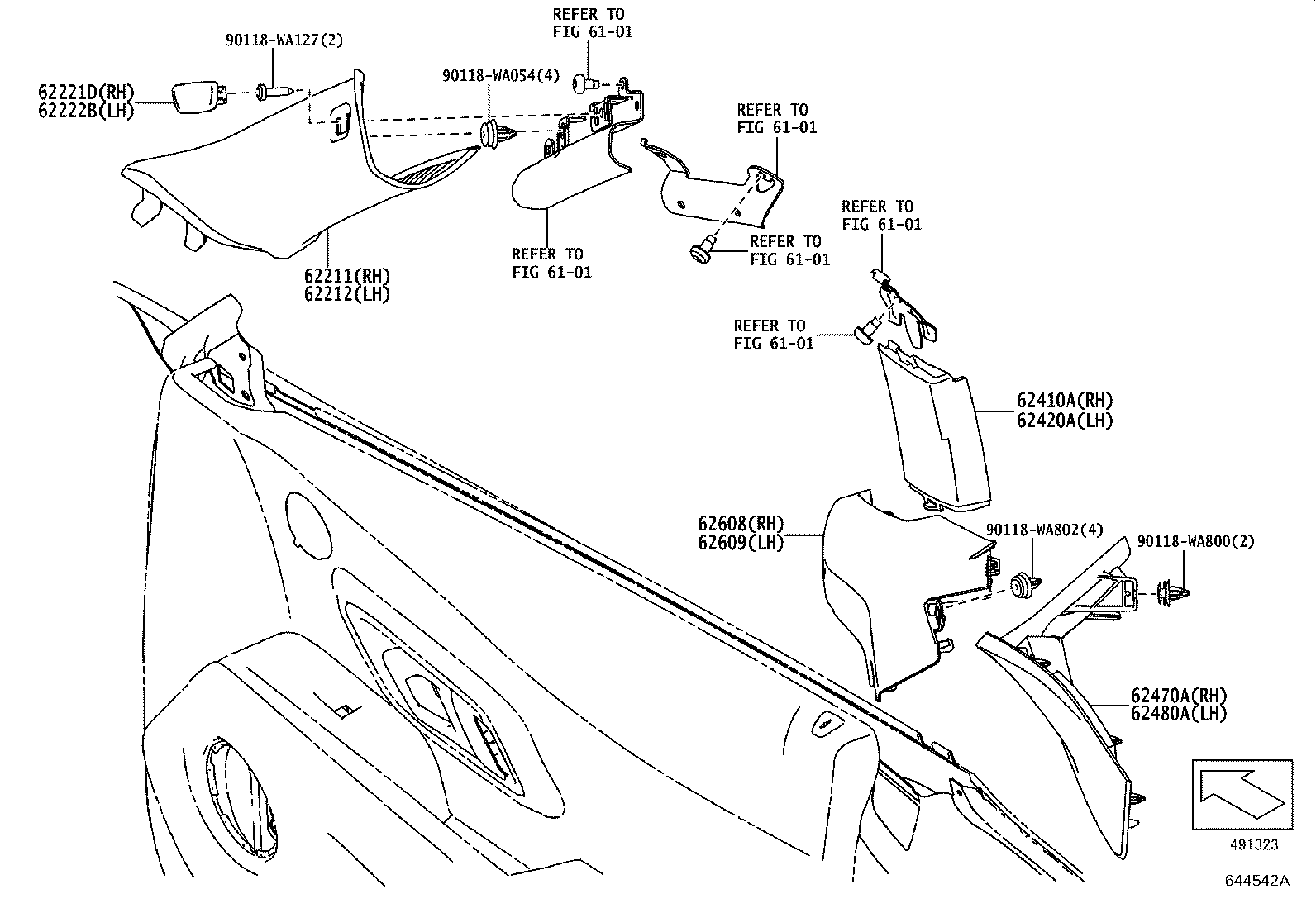

ILLUST NO. 2 OF 6(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-WAA01 |
DB2#,4#,81 |
1 | ||
| 62210-WAA01 |
DB82 |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-WAA01 |
DB2#,4#,81 |
1 | ||
| 62220-WAA01 |
DB82 |
1 | ||
| 62221D - COVER, FRONT PILLAR GARNISH, RH | ||||
| 90118-WA125 |
DB82 |
1 | ||
| 90118-WA125 |
DB2#,4#,81 |
1 | ||
| 62222B - COVER, FRONT PILLAR GARNISH, LH | ||||
| 90118-WA125 |
DB82 |
1 | ||
| 90118-WA125 |
DB2#,4#,81 |
1 | ||
| 62410A - GARNISH ASSY, CENTER PILLAR, RH | ||||
| 62410-WAA01 |
DB82 |
1 | ||
| 62410-WAA01 |
DB2#,4#,81 |
1 | ||
| 62420A - GARNISH ASSY, CENTER PILLER, LH | ||||
| 62420-WAA01 |
DB2#,4#,81 |
1 | ||
| 62420-WAA01 |
DB82 |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62471-WAA01 |
DB2#,4#,81 |
1 | ||
| 62471-WAA01 |
DB82 |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62472-WAA01 |
DB82 |
1 | ||
| 62472-WAA01 |
DB2#,4#,81 |
1 | ||
| 62608 - COVER SUB-ASSY, SEAT BELT HOLE, RH | ||||
| 62510-WAA01 |
DB2#,4#,81 |
1 | ||
| 62510-WAA01 |
DB82 |
1 | ||
| 62609 - COVER SUB-ASSY, SEAT BELT HOLE, LH | ||||
| 62520-WAA01 |
DB2#,4#,81 |
1 | ||
| 62520-WAA01 |
DB82 |
1 | ||
| Common parts | ||||
| 90118-WA054 | ||||
| 90118-WA127 | ||||
| 90118-WA800 | ||||
| 90118-WA802 | ||||
| Linked diagrams | ||||
| 6101 | ||||

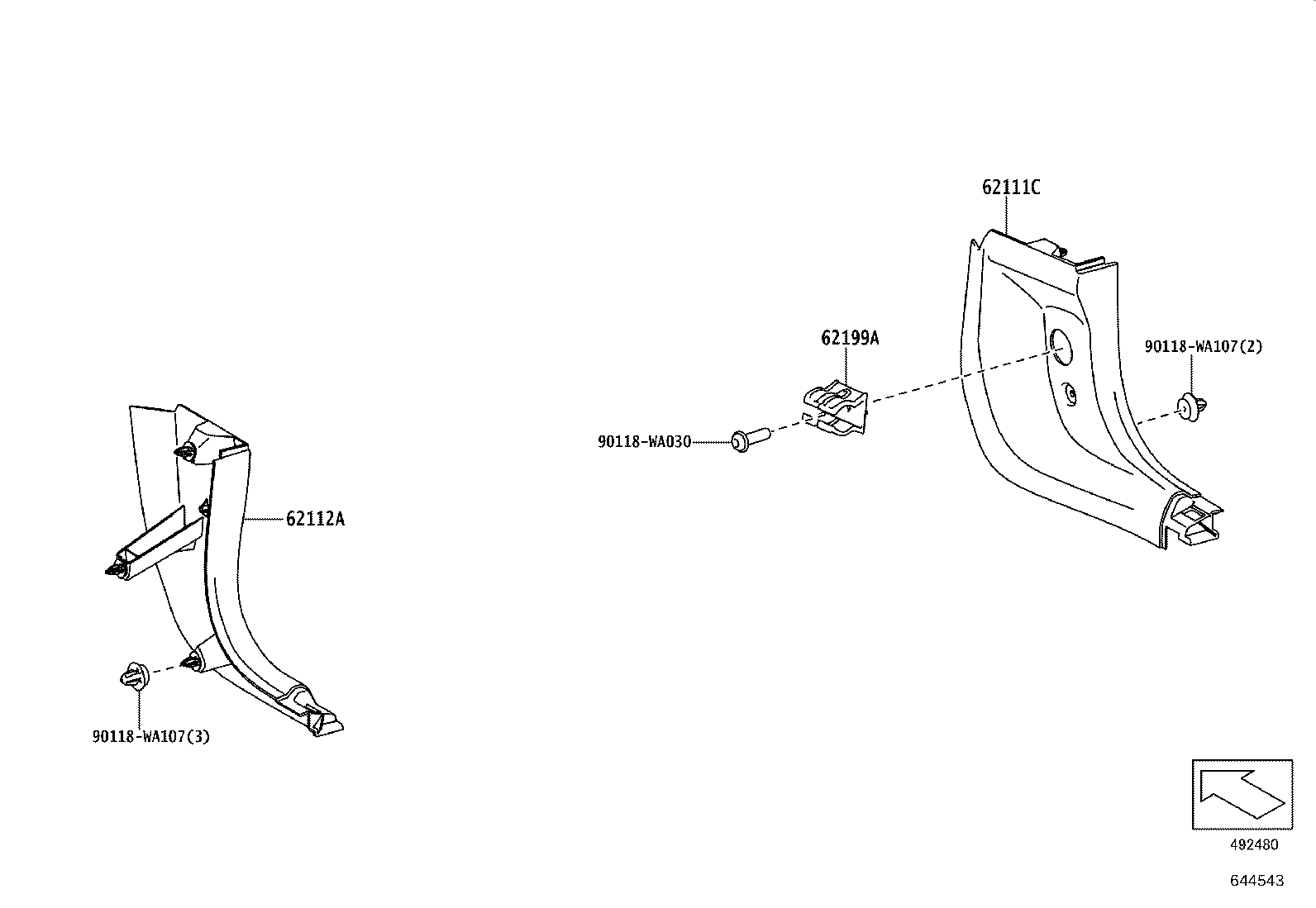

ILLUST NO. 3 OF 6(1903- )DB02,22,42,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-WAA02 |
DB82 |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-WAA02 |
DB82 |
1 | ||
| 62199A - HOLDER, FUSEE | ||||
| 90118-WA022 |
DB82 JAPAN SPEC |
1 | ||
| Common parts | ||||
| 90118-WA030 | ||||
| 90118-WA107 | ||||

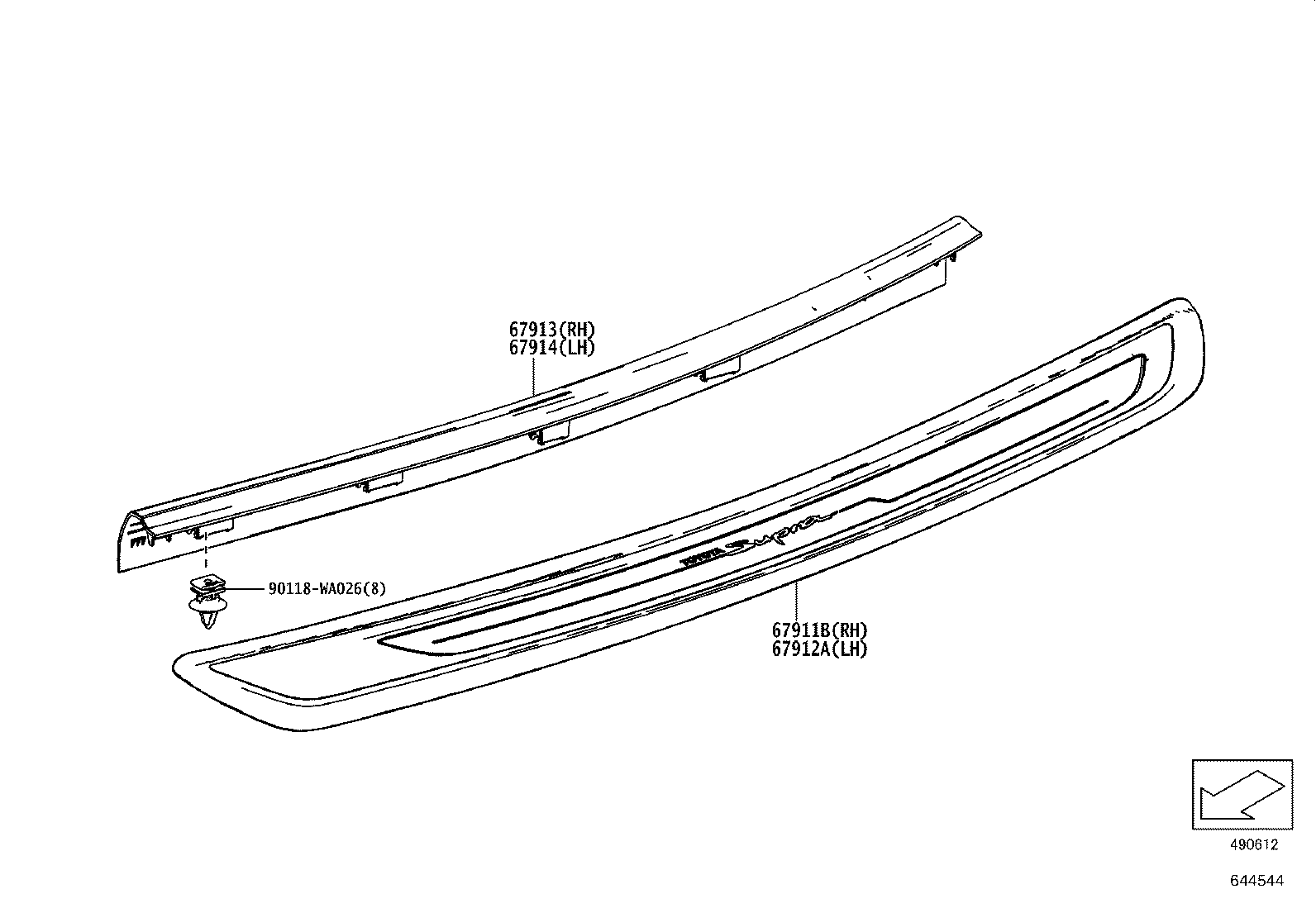

ILLUST NO. 4 OF 6(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-WAA01 |
DB82 |
1 | ||
| 67911-WAA01 |
DB2#,4#,81 |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-WAA01 |
DB2#,4#,81 |
1 | ||
| 67912-WAA01 |
DB82 |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-WAA01 |
DB82 |
1 | ||
| 67913-WAA01 |
DB2#,4#,81 |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-WAA01 |
DB82 |
1 | ||
| 67914-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA026 | ||||

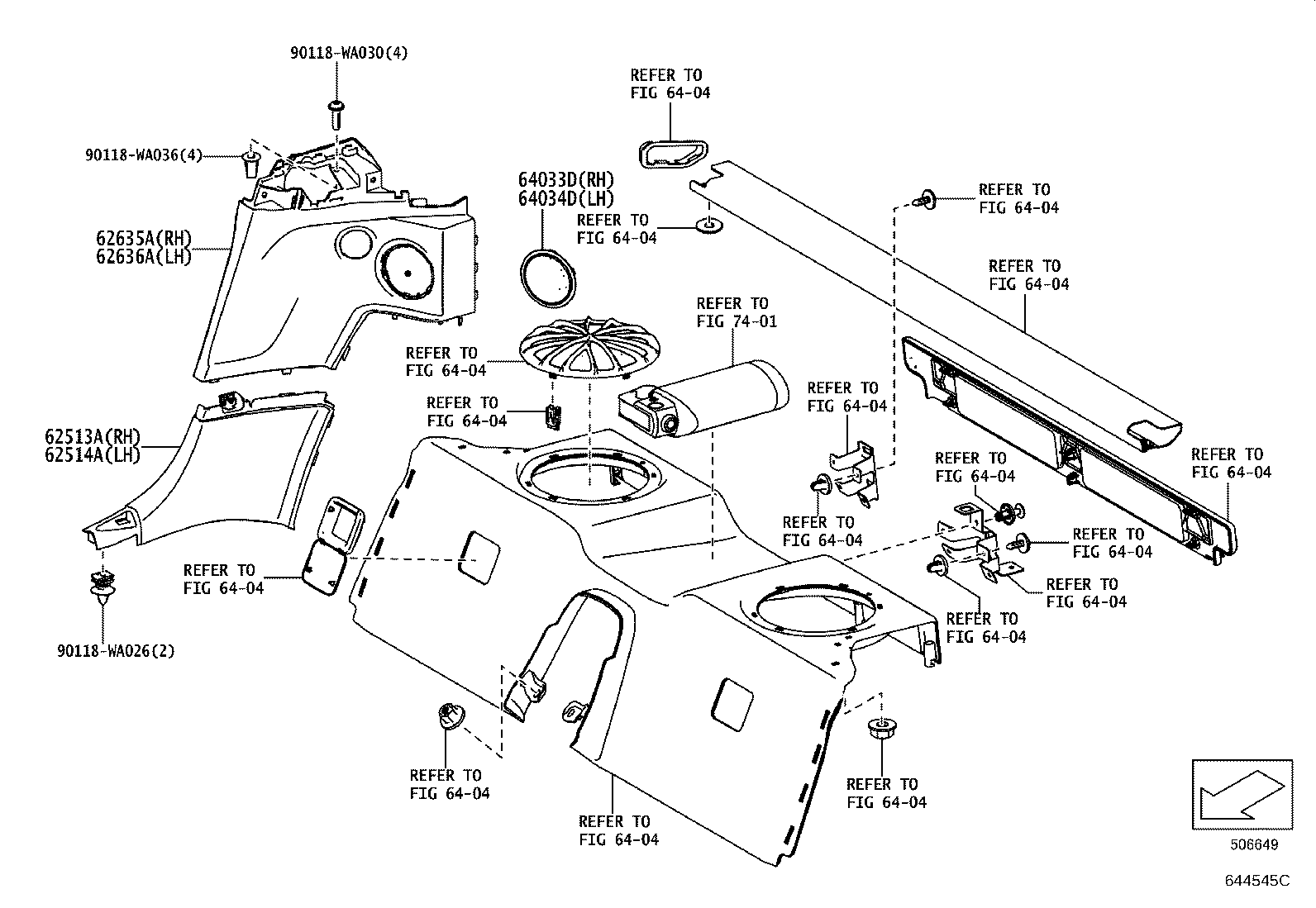

ILLUST NO. 5 OF 6(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62513A - PANEL, QUARTER TRIM, LOWER RH | ||||
| 62601-WAA01 |
DB82 |
1 | ||
| 62601-WAA01 |
DB2#,4#,81 |
1 | ||
| 62514A - PANEL, QUARTER TRIM, LOWER LH | ||||
| 62602-WAA01 |
DB2#,4#,81 |
1 | ||
| 62602-WAA01 |
DB82 |
1 | ||
| 62635A - PANEL, QUARTER TRIM, UPPER RH | ||||
| 62603-WAA01 |
DB82 AUDIO-AM/FM & 10SPEAKER |
1 | ||
| 62603-WAA02 |
DB82 AUDIO-AM/FM & 4SPEAKER |
1 | ||
| 62603-WAA01 |
DB82 AUDIO-AM/FM & 12SPEAKER & JBL |
1 | ||
| 62603-WAA01 |
DB2#,4#,81 AUDIO-AM/FM & 10SPEAKER |
1 | ||
| 62603-WAA02 |
DB2#,4#,81 AUDIO-AM/FM & 4SPEAKER |
1 | ||
| 62603-WAA01 |
DB2#,4#,81 AUDIO-AM/FM & 12SPEAKER & JBL |
1 | ||
| 62636A - PANEL, QUARTER TRIM, UPPER LH | ||||
| 62604-WAA01 |
DB2#,4#,81 AUDIO-AM/FM & 10SPEAKER |
1 | ||
| 62604-WAA01 |
DB82 AUDIO-AM/FM & 12SPEAKER & JBL |
1 | ||
| 62604-WAA01 |
DB2#,4#,81 AUDIO-AM/FM & 12SPEAKER & JBL |
1 | ||
| 62604-WAA02 |
DB82 AUDIO-AM/FM & 4SPEAKER |
1 | ||
| 62604-WAA01 |
DB82 AUDIO-AM/FM & 10SPEAKER |
1 | ||
| 62604-WAA02 |
DB2#,4#,81 AUDIO-AM/FM & 4SPEAKER |
1 | ||
| 64033D - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 67651-WAA02 |
DB82 |
1 | ||
| 67651-WAA02 |
DB2#,4#,81 |
1 | ||
| 64034D - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 67651-WAA02 |
DB82 |
1 | ||
| 67651-WAA02 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA026 | ||||
| 90118-WA030 | ||||
| 90118-WA036 | ||||
| Linked diagrams | ||||
| 6404 | ||||
| 7401 | ||||

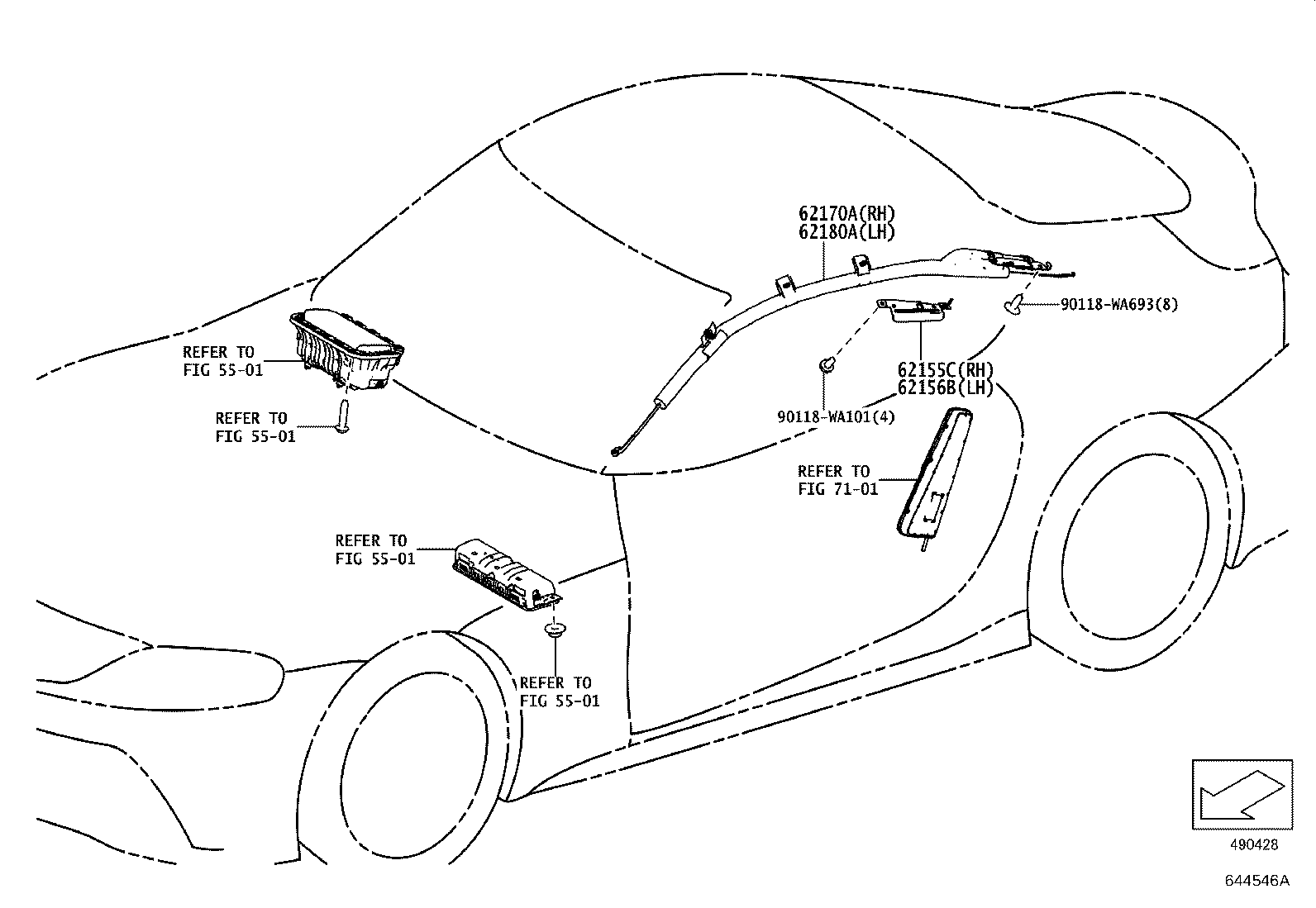

ILLUST NO. 6 OF 6(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62155C - BRACKET, CURTAIN SHIELD AIR BAG, RH | ||||
| 621A1-WAA01 |
DB82 |
1 | ||
| 621A1-WAA01 |
DB2#,4#,81 |
1 | ||
| 62156B - BRACKET, CURTAIN SHIELD AIR BAG, LH | ||||
| 621A2-WAA01 |
DB2#,4#,81 |
1 | ||
| 621A2-WAA01 |
DB82 |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-WAA01 |
DB82 |
1 | ||
| 62170-WAA01 |
DB2#,4#,81 |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-WAA01 |
DB82 |
1 | ||
| 62180-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA101 | ||||
| 90118-WA693 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 7101 | ||||
