DB82R-ZSRW (2019)

Toyota Supra

Production Mar 2019 - Jun 2020
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

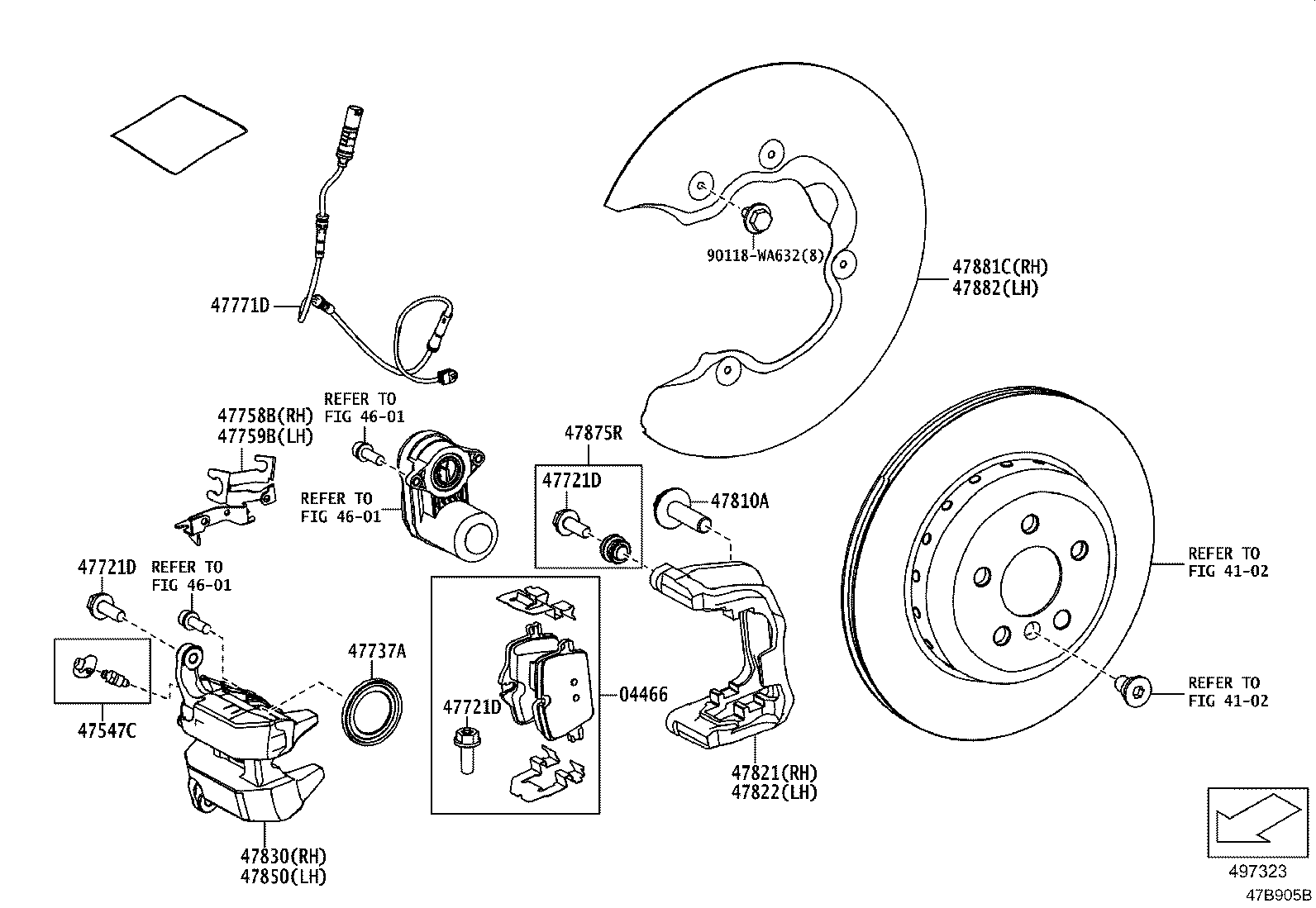

Click highlighted areas on diagram

diagram 04466 4102 4102 4601 4601 4601 47547C 47721D 47721D 47721D 47737A 47758B 47759B 47771D 47810A 47821 47822 47830 47850 47875R 47881C 47882 90118WA632
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
04466-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
04466-WAA03

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
04466-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
04466-WAA01

DB82

 1
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-WAA04

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 2
47547-WAA03

DB8#

 2
47547-WAA04

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 2
47547-WAA04

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 2
47547-WAA04

DB82

 2
47547-WAA04

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 4
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-RED PAINTED

 4
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-17OL RED WITH LOGO

 4
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 4
90118-WA651

DB82

M8X1.0

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 4
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-RED PAINTED

 4
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-17OL RED WITH LOGO

 4
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 4
90118-WA651

DB82

M8X1.0

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 4
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-RED PAINTED

 4
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-17OL RED WITH LOGO

 4
90118-WA651

DB2#,4#

M8X1.0,FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 4
90118-WA651

DB82

M8X1.0

 4
47737A - SEAL, REAR DISC BRAKE CYLINDER PISTON
47737-WAA02

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47737-WAA02

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47737-WAA03

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 2
47737-WAA02

DB82

 2
47737-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 2
47758B - BRACKET, WIRE CLAMP, RH NO.1
47758-WAA01

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
47758-WAA01

DB82

 1
47758-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47758-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47758-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47759B - BRACKET, WIRE CLAMP, LH NO.1
47759-WAA01

DB82

 1
47759-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47759-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47759-WAA01

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
47759-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47771D - WIRE, PAD WEAR INDICATOR RH
47770-WAA03

DB82

 1
47770-WAA03

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
47770-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47770-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47770-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90118-WA852

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 4
90118-WA852

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 4
90118-WA852

DB82

 4
90118-WA852

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 4
90118-WA852

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 4
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-WAA02

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
47821-WAA02

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47821-WAA01

DB82

 1
47821-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47821-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47822-WAA02

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
47822-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47822-WAA02

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47822-WAA01

DB82

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47813-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47813-WAA04

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47813-WAA04

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
47813-WAA03

DB82

 1
47813-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47823-WAA04

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
47823-WAA03

DB82

 1
47823-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47823-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47823-WAA04

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-WAA02

DB82

 2
47775-WAA02

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 2
47775-WAA02

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 2
47775-WAA02

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 2
47775-WAA02

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 2
47881C - COVER, DISC BRAKE DUST, REAR RH
47881-WAA01

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
47881-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47881-WAA01

DB82

 1
47881-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47881-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47882 - COVER, DISC BRAKE DUST, REAR LH
47882-WAA01

DB82

 1
47882-WAA01

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
47882-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47882-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47882-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
Common parts
90118-WA632
Linked diagrams
4102
4601
