DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

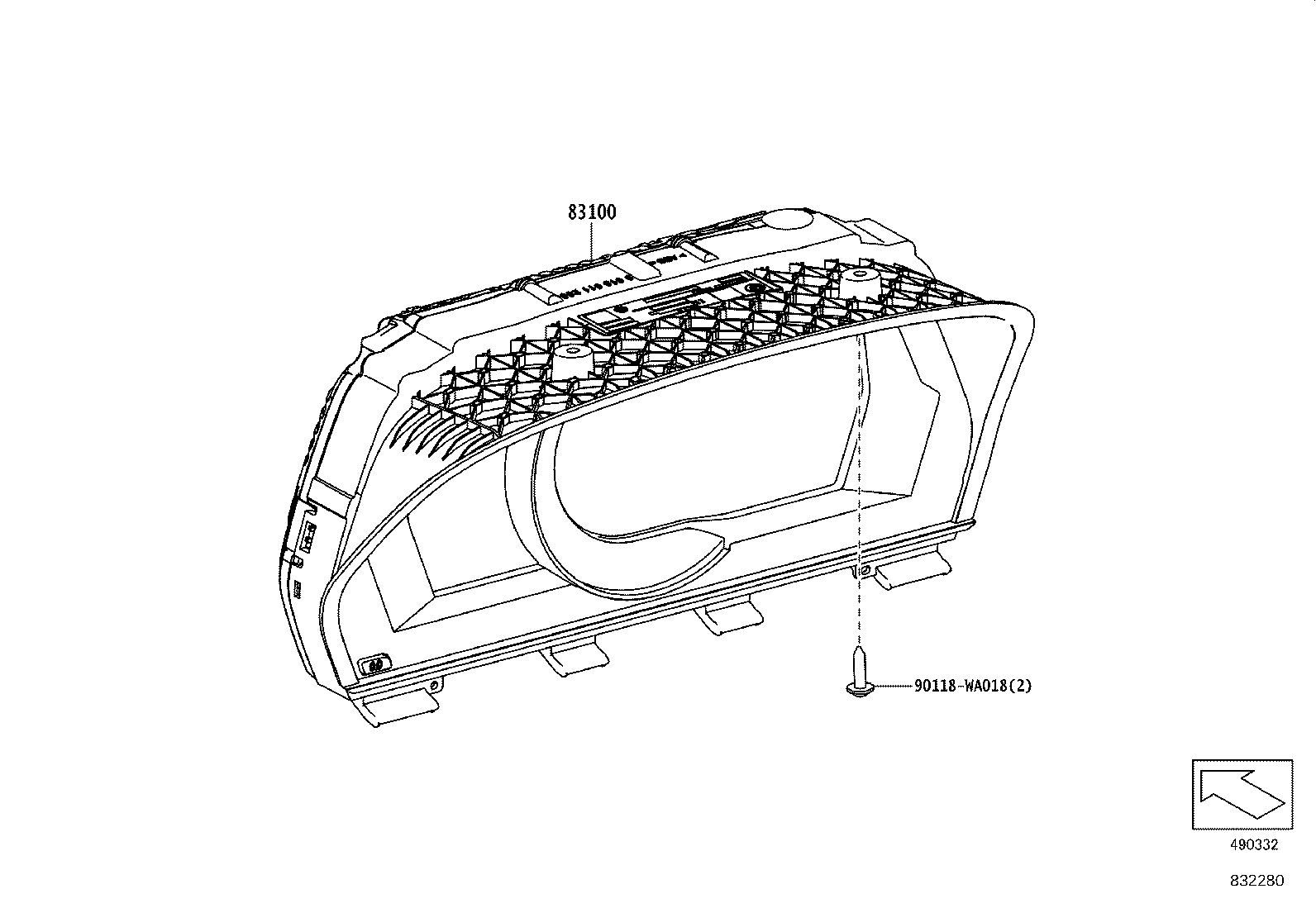

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

COMBINATION METER

diagram 83100 90118WA018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-WAA11

DB2#,4#

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

 1
83800-WAA07

DB2#,4#

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

 1
83800-WAA13

DB2#,4#

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

 1
83800-WAA10

DB2#,4#

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

 1
83800-WAA14

DB2#,4#

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

 1
83800-WAA21

DB2#,4#,81

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN)

 1
83800-WAA19

DB2#,4#,81

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH

 1
83800-WAA08

DB2#,4#

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

 1
83800-WAA20

DB2#,4#,81

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH

 1
83800-WAA21

DB2#,4#,81

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITHOUT

 1
83800-WAA21

DB2#,4#,81

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA)

 1
83800-WAA20

DB2#,4#

HEAD-UP DISPLAY-WITHOUT&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

 1
83800-WAA19

DB2#,4#

HEAD-UP DISPLAY-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)

 1
Common parts
90118-WA018

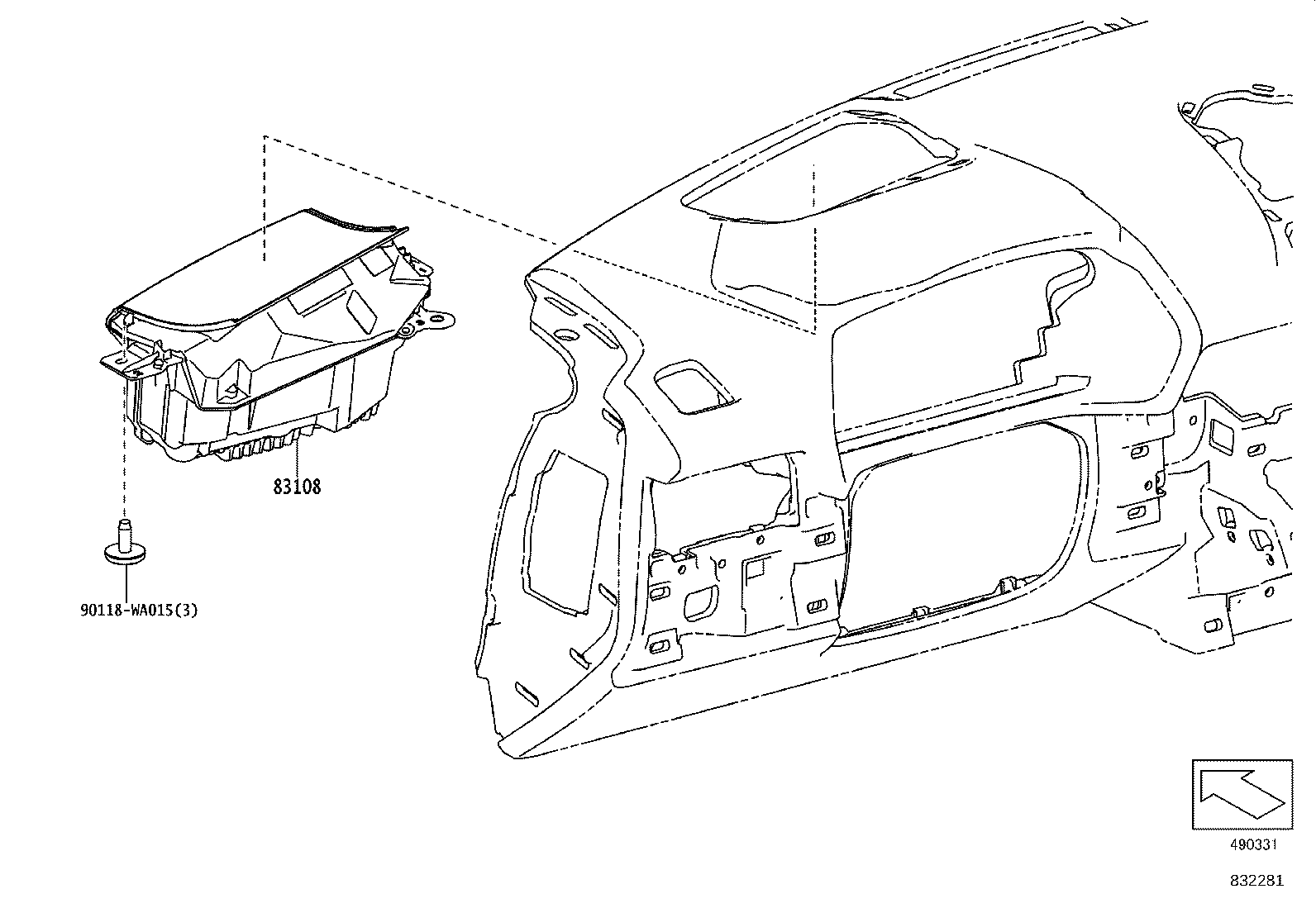

ILLUST NO. 2 OF 2(1903- )

Click highlighted areas on diagram

HEAD UP DISPLAY

diagram 83108 90118WA015
Part # Description Qty Price
83108 - MIRROR SUB-ASSY, METER
83108-WAA03

DB21,41,81

HEAD-UP DISPLAY-WITH

 1
Common parts
90118-WA015
