DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1903- )

Click highlighted areas on diagram

RADIATOR SIDE

diagram 16041 16400 16454B 16454C 16546A 16546B 16681 16683 8404 90118WA212 90118WA470 90118WA470 90118WA537 90118WA550 90118WA582 90118WA583
Part # Description Qty Price

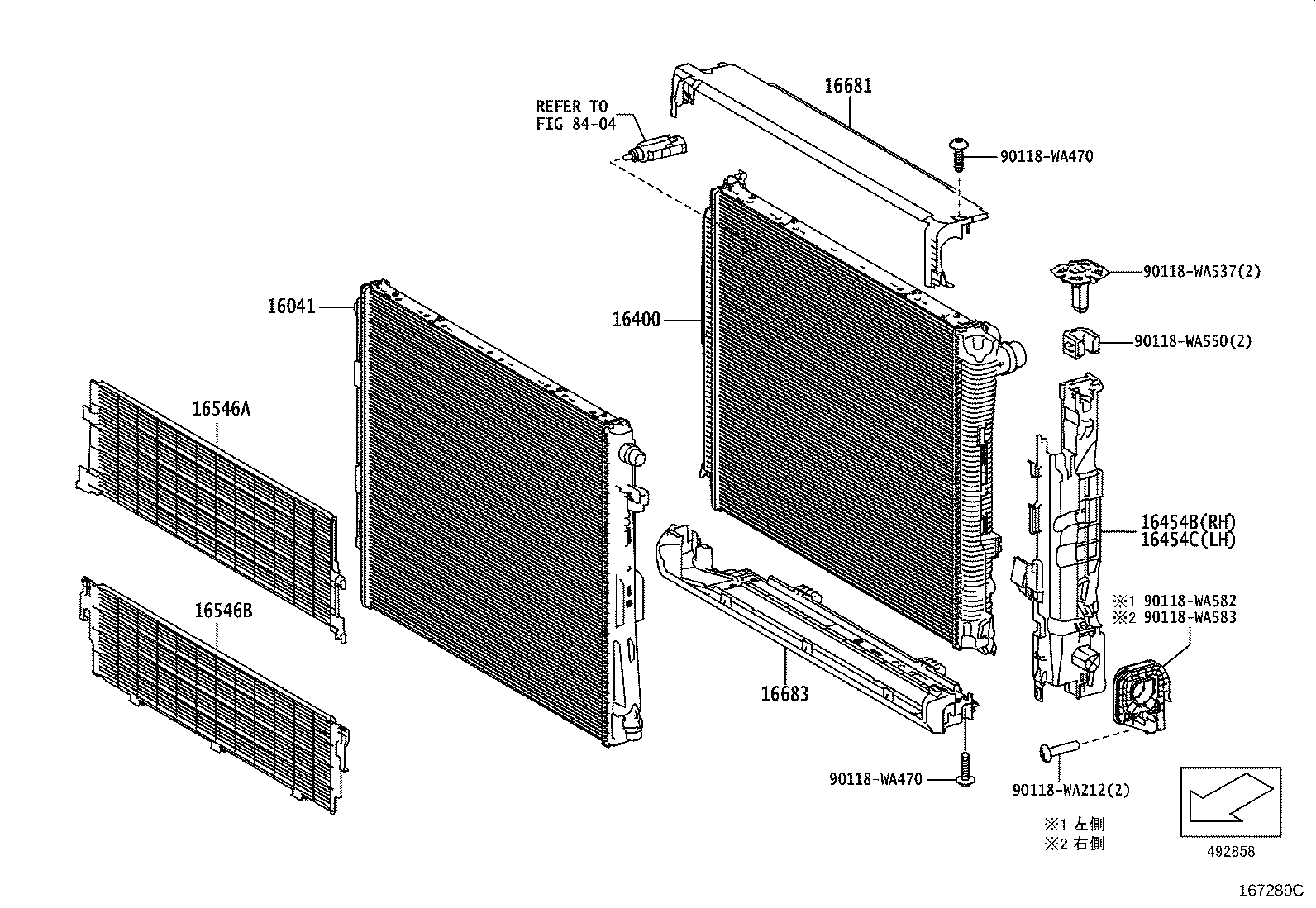

16041 - RADIATOR ASSY, NO.2
16400-WAA03

B48#,B58..DB2#,4#,81

 1
16400 - RADIATOR ASSY
16400-WAA02

B48#..DB2#,81

 1
16454B - PLATE, RADIATOR SIDE, RH
16453-WAA02

B48#,B58..DB2#,4#,81

 1
16454C - PLATE, RADIATOR SIDE, LH
16454-WAA02

B48#,B58..DB2#,4#,81

 1
16546A - PROTECTOR, RADIATOR, UPPER
16546-WAA01

B48#,B58..DB2#,4#,81

 1
16546B - PROTECTOR, RADIATOR, LOWER
16546-WAA02

B48#,B58..DB2#,4#,81

 1
16681 - PLATE, RADIATOR UPPER AIR GUIDE
16453-WAA01

B48#,B58..DB2#,4#,81

 1
16683 - PLATE, RADIATOR LOWER AIR GUIDE
16454-WAA01

B48#,B58..DB2#,4#,81

 1
Common parts
90118-WA212
90118-WA470
90118-WA537
90118-WA550
90118-WA582
90118-WA583
Linked diagrams
8404

ILLUST NO. 2 OF 4(1903- )

Click highlighted areas on diagram

RADIATOR SIDE

diagram 16360A 16711 90118WA192 90118WA470
Part # Description Qty Price

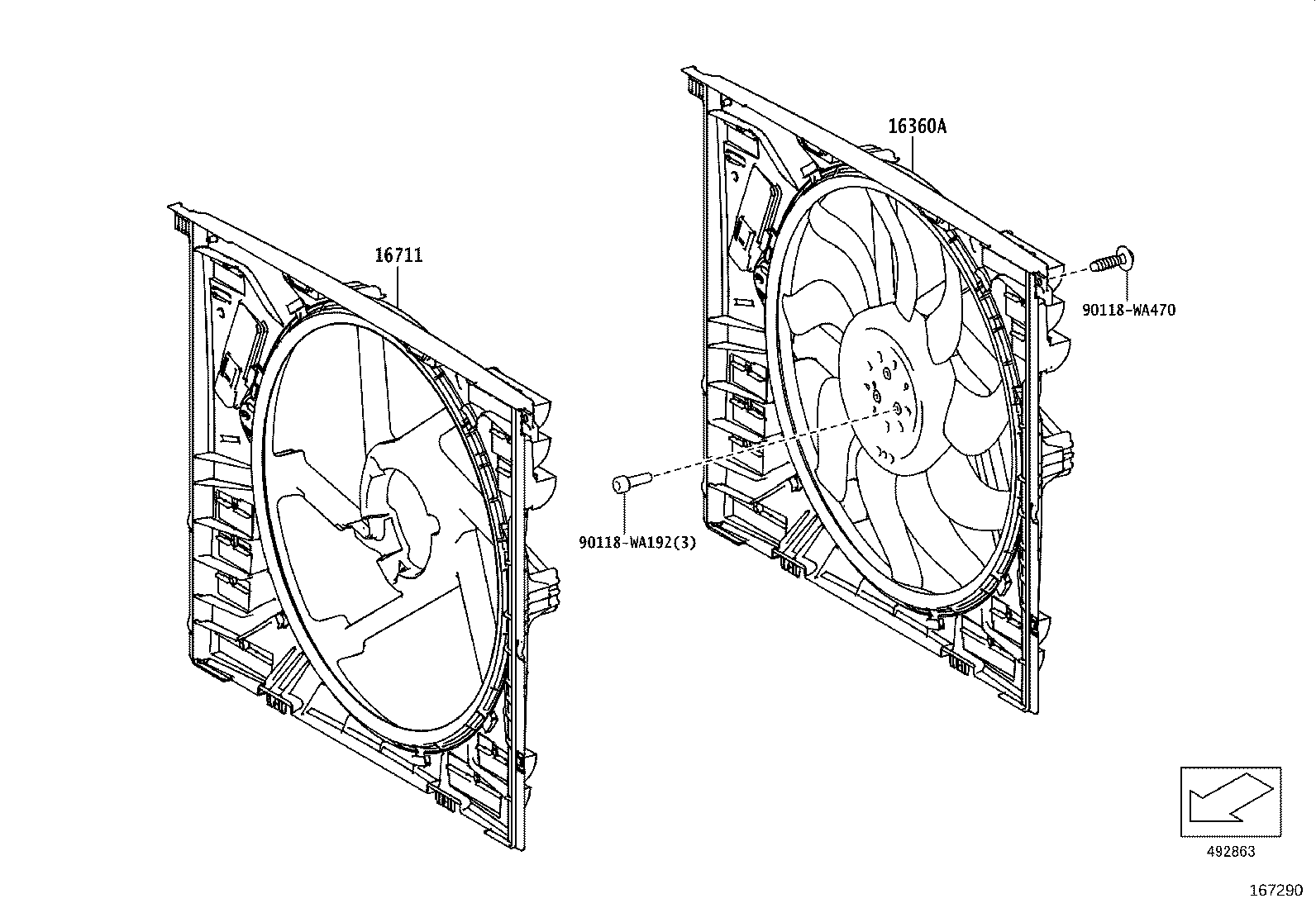

16360A - FAN ASSY, W/MOTOR
16360-WAA01

B48#..DB2#,81

 1
16711 - SHROUD, FAN
16711-WAA01

B48#..DB2#,81

 1
Common parts
90118-WA192
90118-WA470

ILLUST NO. 3 OF 4(1903- )

Click highlighted areas on diagram

RADIATOR SIDE

diagram 16401A 16470 16471 16482 164A0WAA01 90118WA473
Part # Description Qty Price

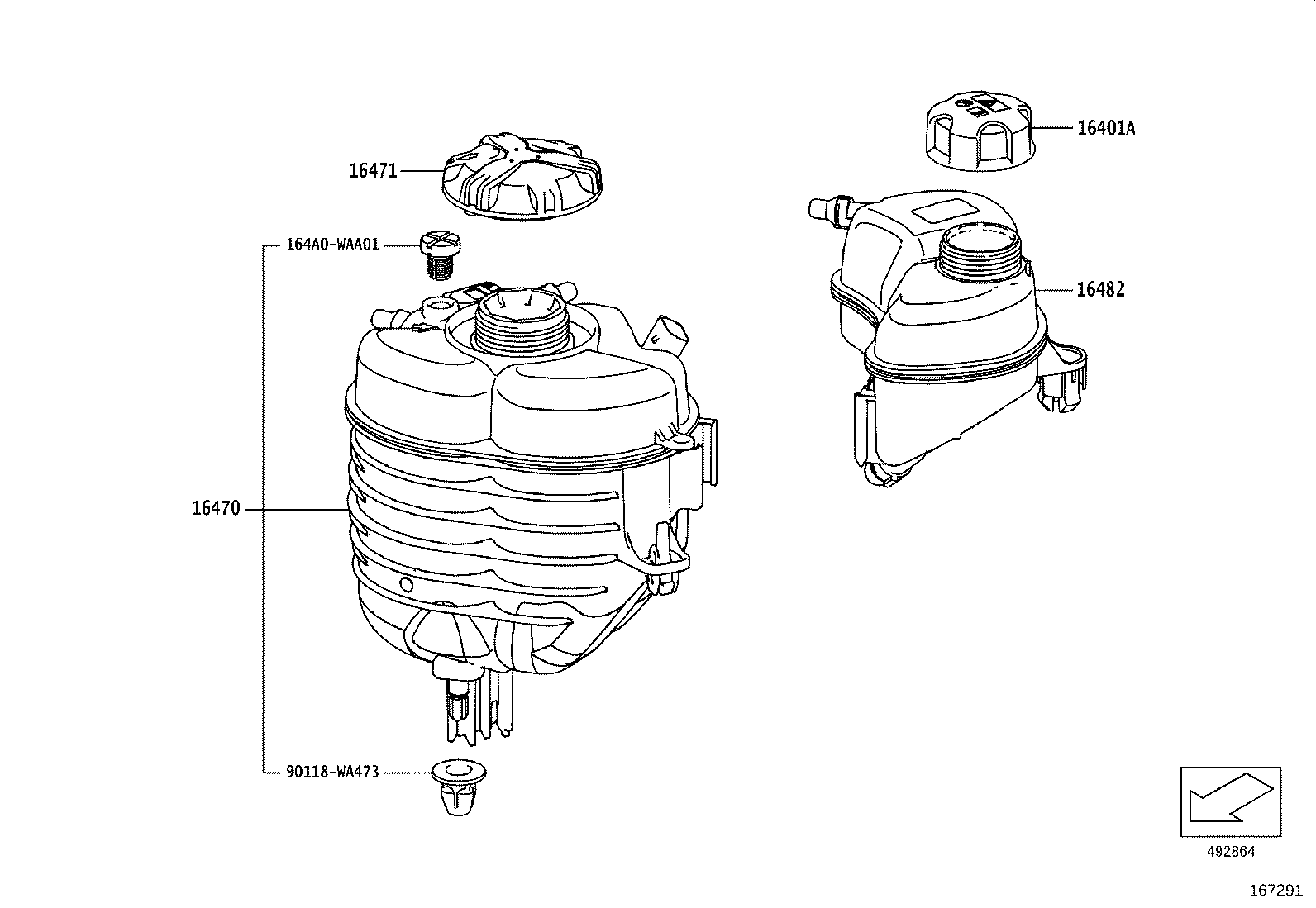

16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK
16475-WAA01

B48#,B58..DB2#,4#,81

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-WAA01

B48#,B58..DB2#,4#,81

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16475-WAA02

B48#,B58..DB2#,4#,81

 1
16482 - TANK SUB-ASSY, RADIATOR RESERVE
16470-WAA02

B48#,B58..DB2#,4#,81

 1
Common parts
164A0-WAA01
90118-WA473

ILLUST NO. 1 OF 4(1903- )B48#

Click highlighted areas on diagram

ENGINE SIDE

diagram 16261G 16261Y 16278B 16281F 16283 16295 16567 16571C 16572D 16576 16576A 90118WA248 90118WA539
Part # Description Qty Price

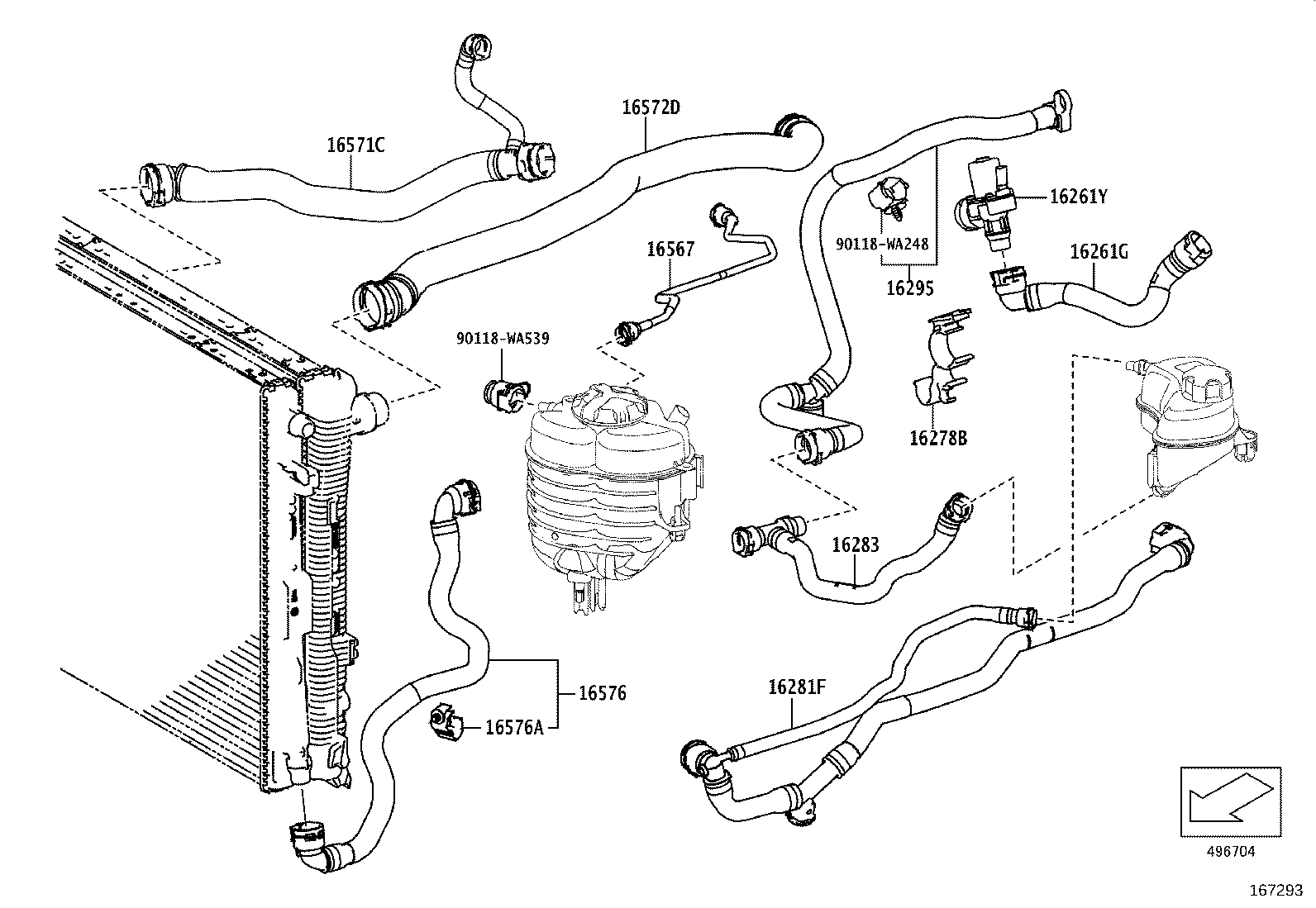

16261G - HOSE, WATER BY-PASS, NO.1
16261-WAA02

B48#..DB2#,81

 1
16261Y - SWITCH VALVE
90118-WA605

B48L..DB81

 1
90118-WA605

B48L..DB81

 1
90118-WA605

B48L..DB81

CHINA SPEC

 1
16278B - BRACKET, WATER BY-PASS PIPE
90118-WA475

B48#..DB2#,81

 1
16281F - HOSE, WATER BY-PASS, NO.5
16058-WAA01

B48#..DB2#,81

 1
16283 - HOSE, WATER BY-PASS, NO.6
16575-WAA01

B48#,B58..DB2#,4#,81

 1
16295 - HOSE, WATER BY-PASS, NO.7
16574-WAA01

B48#..DB2#,81

 1
16567 - HOSE(FOR RADIATOR RESERVE TANK)
16577-WAA01

B48#..DB2#,81

 1
16571C - HOSE, RADIATOR, NO.1
16571-WAA01

B48#..DB2#,81

 1
16572D - HOSE, RADIATOR, NO.2
16572-WAA01

B48#..DB2#,81

 1
16576 - HOSE, RADIATOR, NO.6
16576-WAA01

B48#..DB2#,81

 1
16576A - CLIP, RADIATOR HOSE, NO.6
90118-WA551

B48#..DB2#,81

 1
Common parts
90118-WA248
90118-WA539

ILLUST NO. 2 OF 4(1903- )B48#

Click highlighted areas on diagram

ENGINE SIDE

diagram 1601 1601 1601 1601 16032 16264 16278 16278C 16279 16279L 16321 16322A 9006931088 9006935003 90118WA220 90118WA382 90118WA382
Part # Description Qty Price

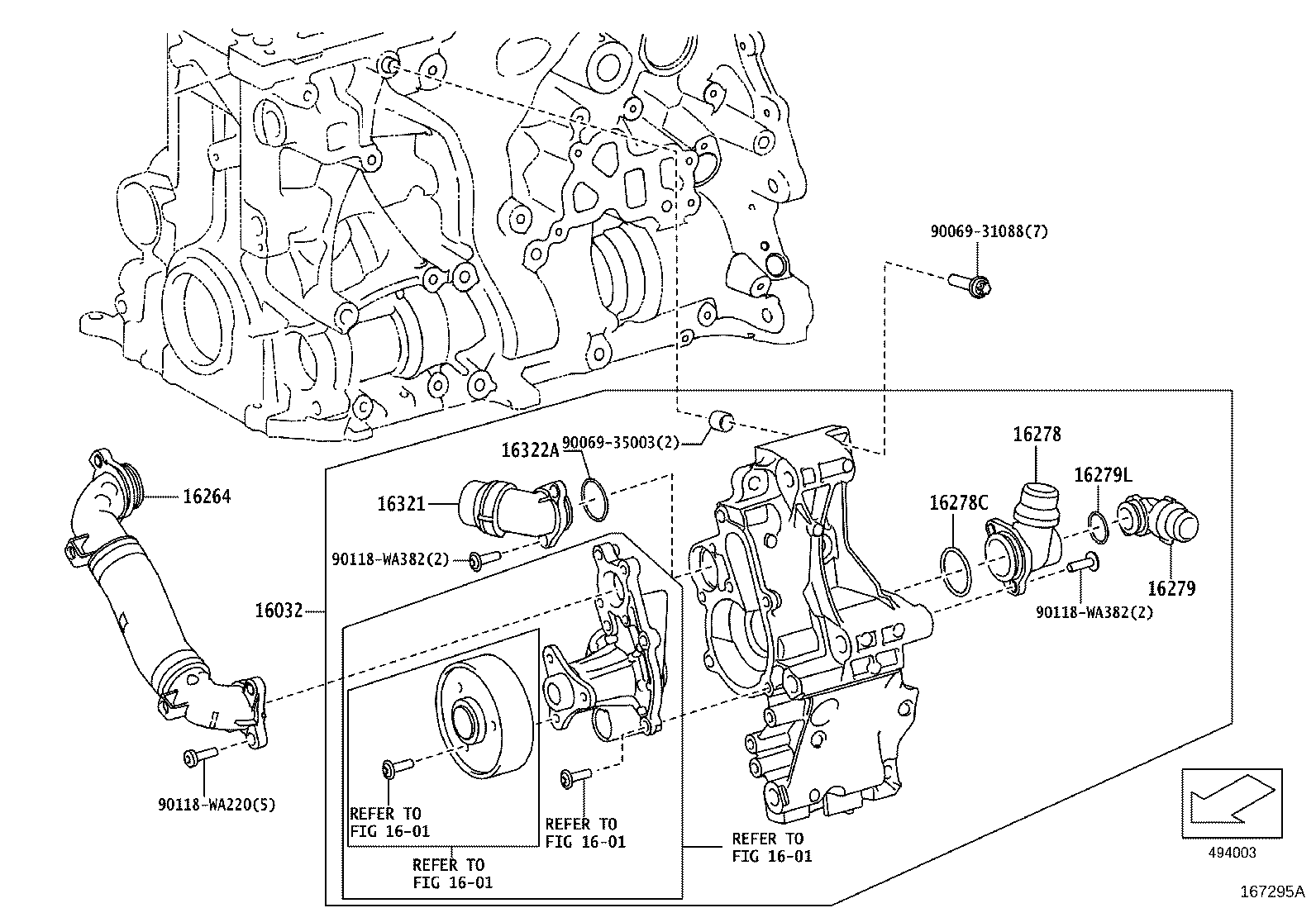

16032 - HOUSING SUB-ASSY, WATER INLET W/WATER PUMP
16032-WAA02

B48#..DB2#,81

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-WAA02

B48#..DB2#,81

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-WAA01

B48#..DB2#,81

 1
16278C - RING, O(FOR WATER BY-PASS PIPE NO.2)
90118-WA533

B48#..DB2#,81

 1
16279 - PIPE, WATER BY-PASS, NO.3
16279-WAA01

B48#..DB2#,81

 1
16279L - RING, O(FOR WATER BY-PASS PIPE NO.3)
90118-WA534

B48#..DB2#,81

 1
16321 - INLET, WATER
16268-WAA01

B48#..DB2#,81

 1
16322A - RING, O(FOR WATER INLET)
90118-WA466

B48#..DB2#,81

 1
Common parts
90069-31088
90069-35003
90118-WA220
90118-WA382
Linked diagrams
1601

ILLUST NO. 3 OF 4(1903- )B48#

Click highlighted areas on diagram

ENGINE SIDE

diagram 16027 16027B 16027B 16028 16028B 90118WA341 90118WA341
Part # Description Qty Price

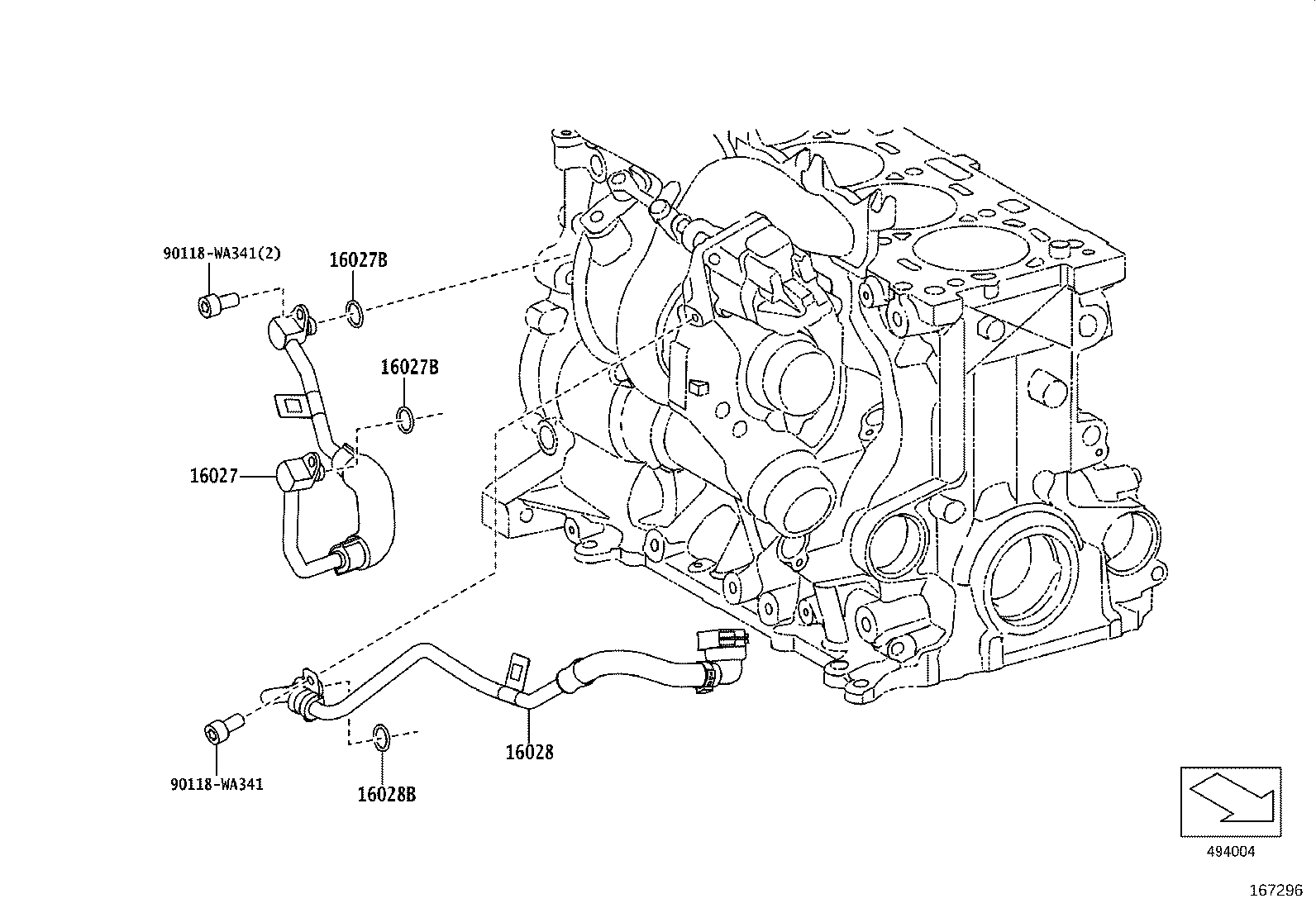

16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-WAA01

B48#..DB2#,81

 1
16027B - GASKET(FOR TURBO WATER PIPE)
90118-WA527

B48#..DB2#,81

 2
16027B - GASKET(FOR TURBO WATER PIPE)
90118-WA527

B48#..DB2#,81

 2
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16028-WAA02

B48#..DB2#,81

 1
16028B - GASKET(FOR TURBO WATER PIPE NO.2)
90118-WA527

B48#..DB2#,81

 1
Common parts
90118-WA341

ILLUST NO. 4 OF 4(1903- )B48#

Click highlighted areas on diagram

ENGINE SIDE

diagram 16267K 16282F 16671 90118WA574 90118WA575
Part # Description Qty Price

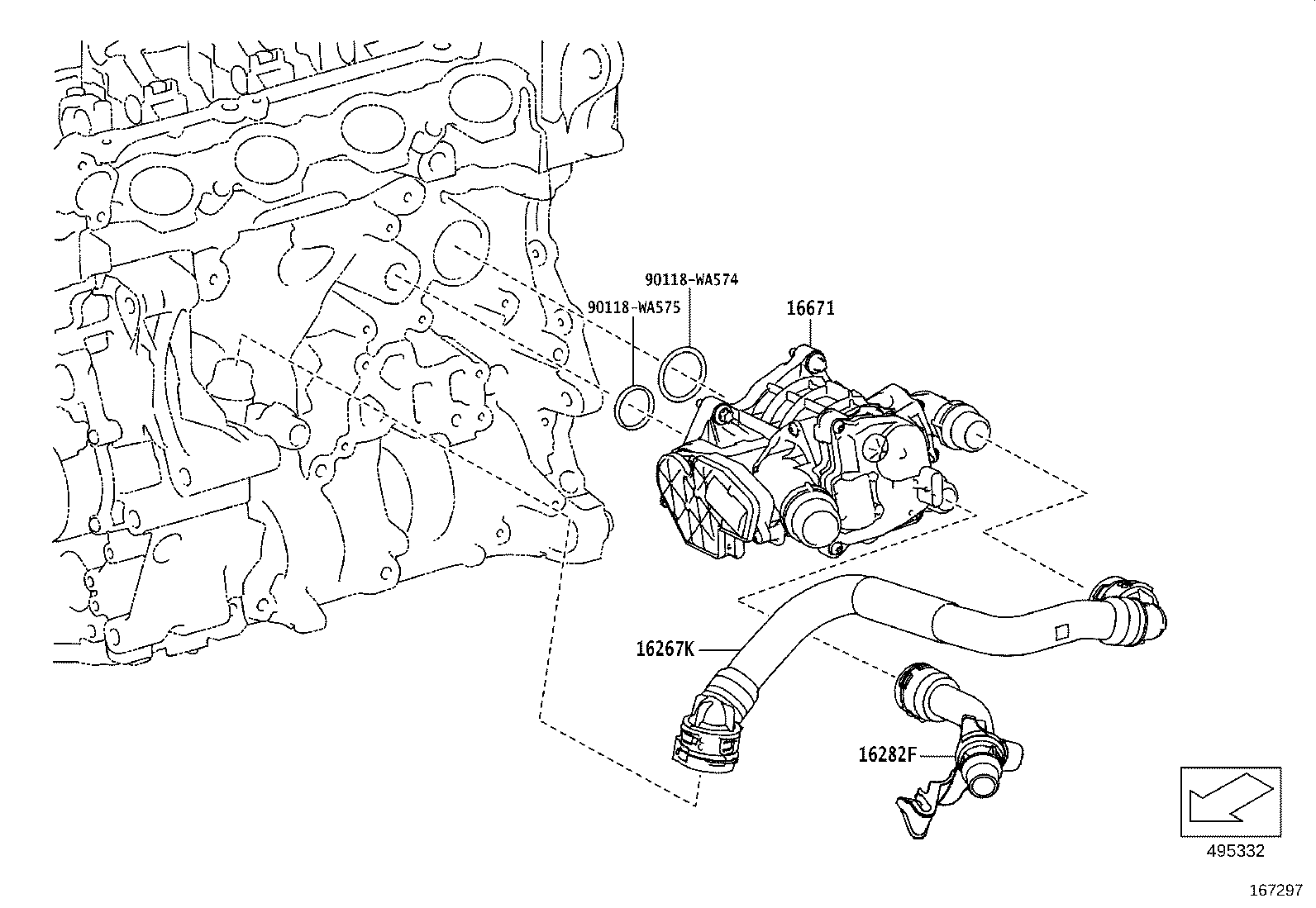

16267K - HOSE, WATER BY-PASS, NO.3
16267-WAA01

B48#..DB2#,81

 1
16282F - HOSE, WATER BY-PASS, NO.5
16282-WAA01

B48#..DB2#,81

 1
16671 - VALVE, WATER
16670-WAA02

B48#..DB2#,81

 1
Common parts
90118-WA574
90118-WA575
