DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )B48#

Click highlighted areas on diagram

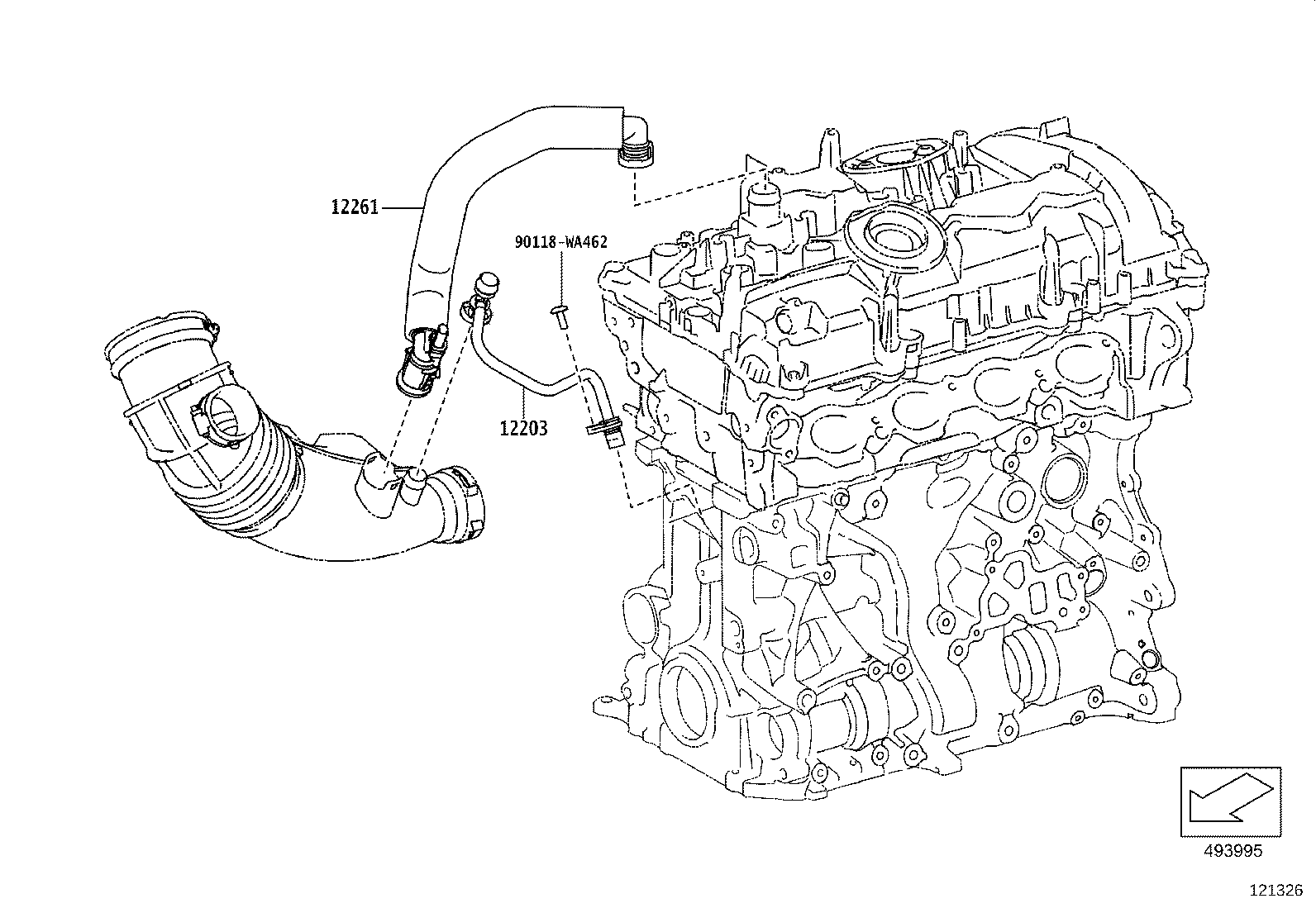

diagram 12203 12261 90118WA462
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12262-WAA02

B48#..DB2#,81

 1
12261 - HOSE, VENTILATION
12261-WAA02

B48#..DB2#,81

 1
12261-WAA01

B48#..DB2#,81

HOT AIR INTAKE-WITH

 1
12261-WAA04

B48L..DB81

CHINA SPEC

 1
Common parts
90118-WA462
