DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

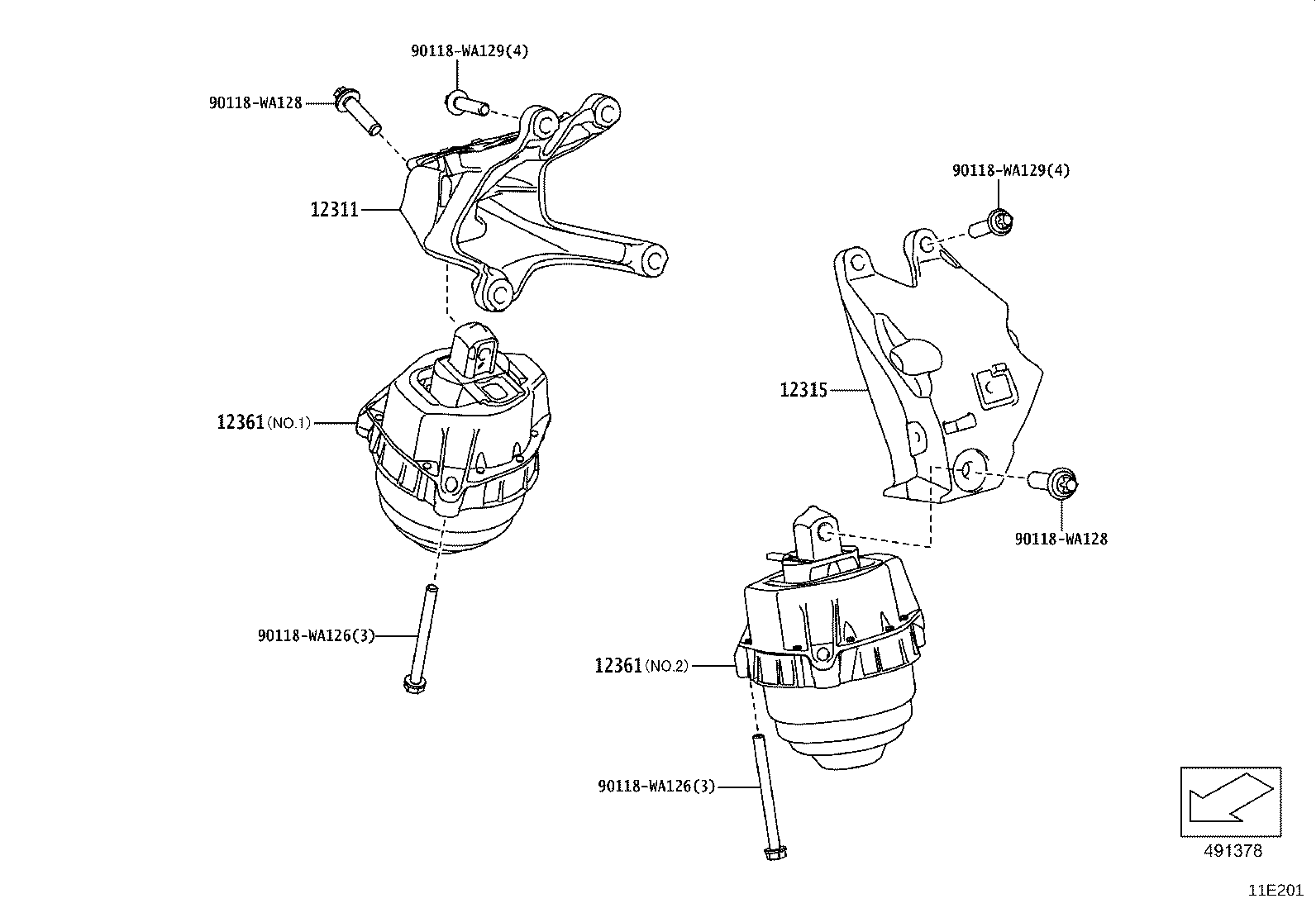

ILLUST NO. 1 OF 3(1903- )

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 90118WA126 90118WA126 90118WA128 90118WA128 90118WA129 90118WA129
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-WAA02

B48#..DB2#,81

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-WAA02

B48L..DB8#

 1
12315-WAA02

B48L..DB81

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-WAA02

B48#..DB2#,8#

NO.1:REFER ILLUST.

 1
12362-WAA02

B48#..DB2#,8#

NO.2:REFER ILLUST.

 1
12361-WAA03

B48#..DB2#,81

NO.1:REFER ILLUST.

 1
12362-WAA03

B48#..DB2#,81

NO.2:REFER ILLUST.

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-WAA02

B48#..DB2#,8#

NO.1:REFER ILLUST.

 1
12362-WAA02

B48#..DB2#,8#

NO.2:REFER ILLUST.

 1
12361-WAA03

B48#..DB2#,81

NO.1:REFER ILLUST.

 1
12362-WAA03

B48#..DB2#,81

NO.2:REFER ILLUST.

 1
Common parts
90118-WA126
90118-WA128
90118-WA129

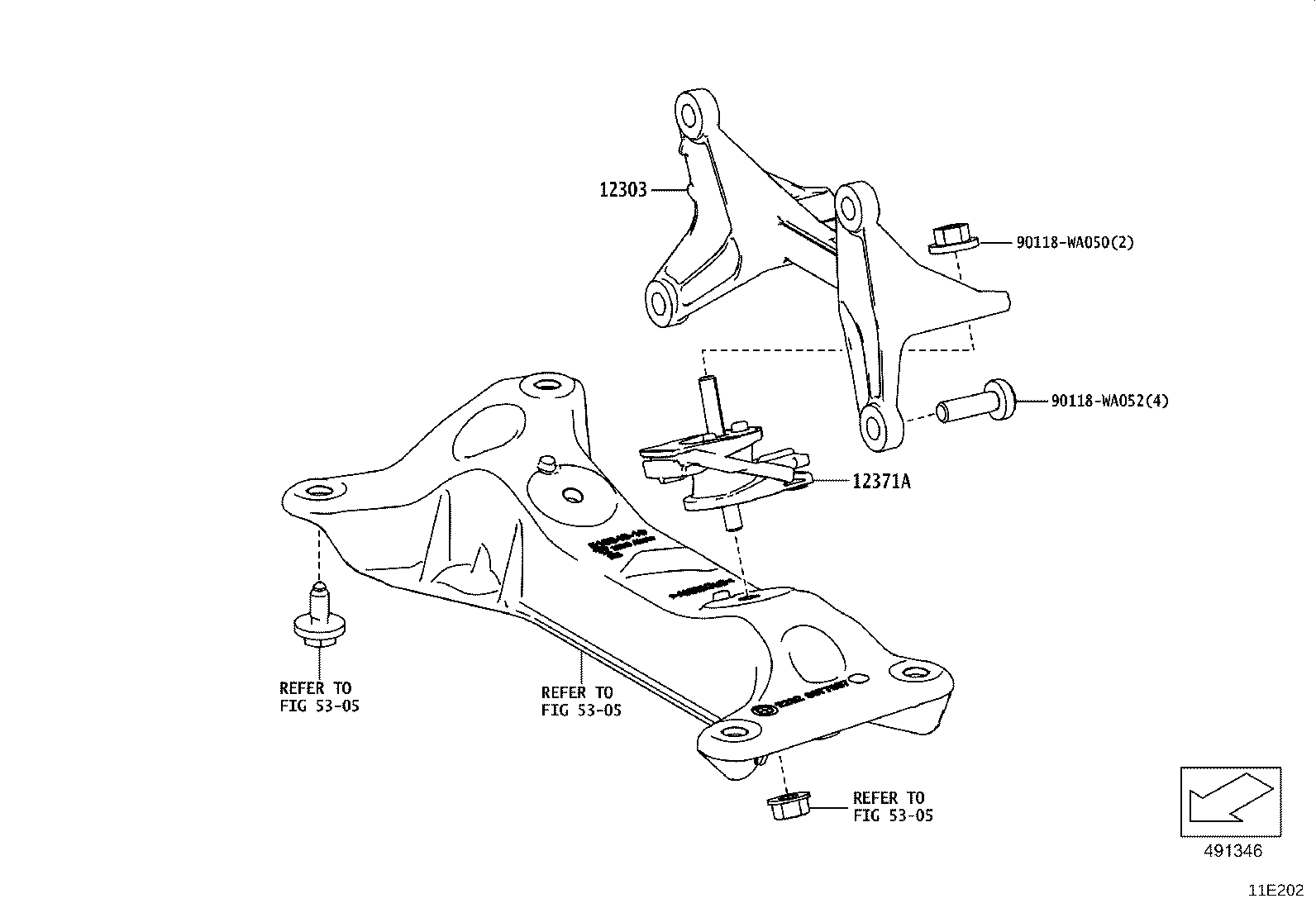

ILLUST NO. 2 OF 3(1903- )

Click highlighted areas on diagram

diagram 12303 12371A 5305 5305 5305 90118WA050 90118WA052
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
35154-WAA01

B48#,B58..DB2#,4#,81

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-WAA02

B48#,B58..DB2#,4#,81

 2
Common parts
90118-WA050
90118-WA052
Linked diagrams
5305

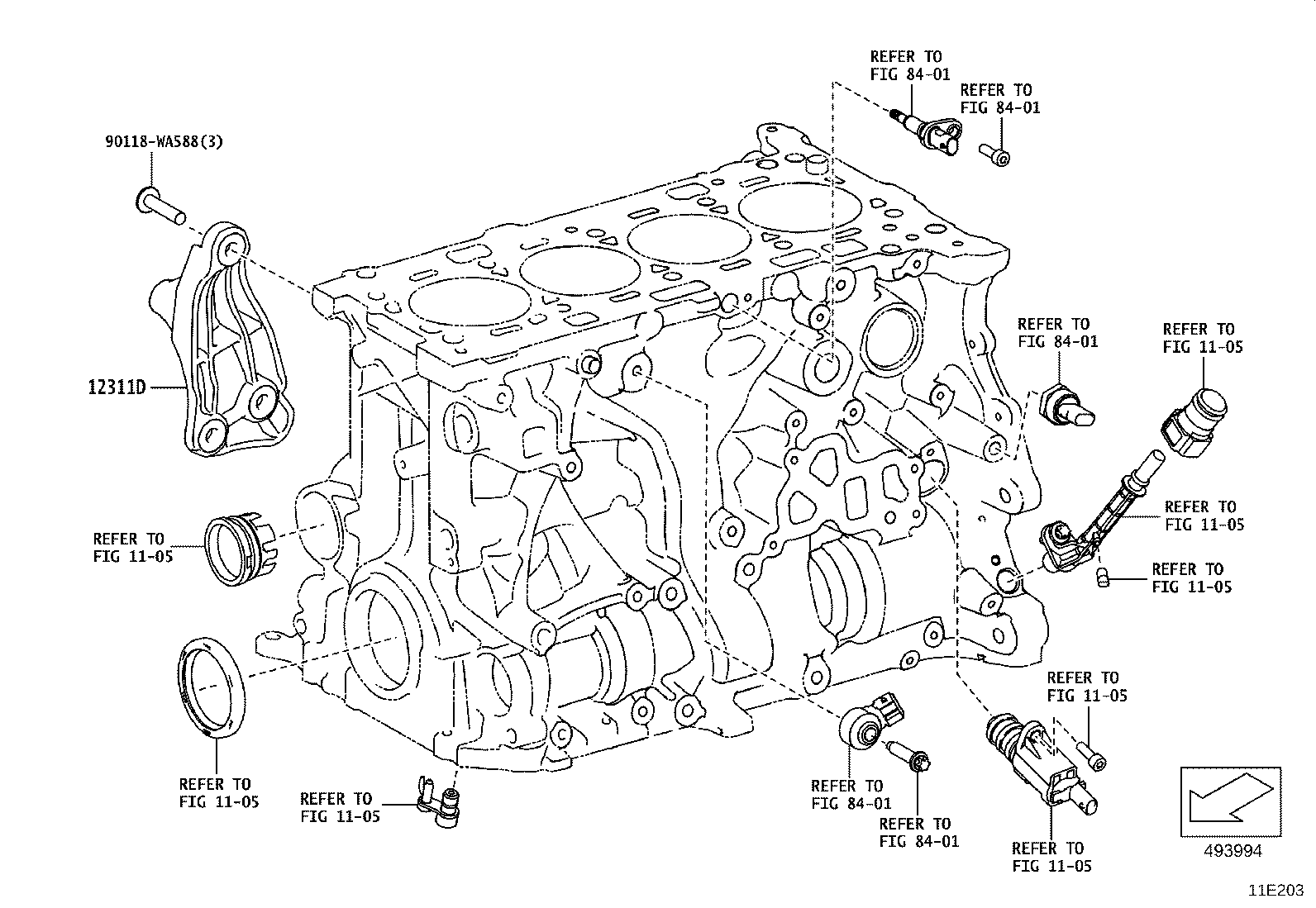

ILLUST NO. 3 OF 3(1903- )B48#

Click highlighted areas on diagram

diagram 1105 1105 1105 1105 1105 1105 1105 1105 12311D 8401 8401 8401 8401 8401 90118WA588
Part # Description Qty Price
12311D - BRACKET, ENGINE MOUNTING
12311-WAA03

B48#..DB2#,81

 1
Common parts
90118-WA588
Linked diagrams
1105
8401
