DB41L-ZRLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B58
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

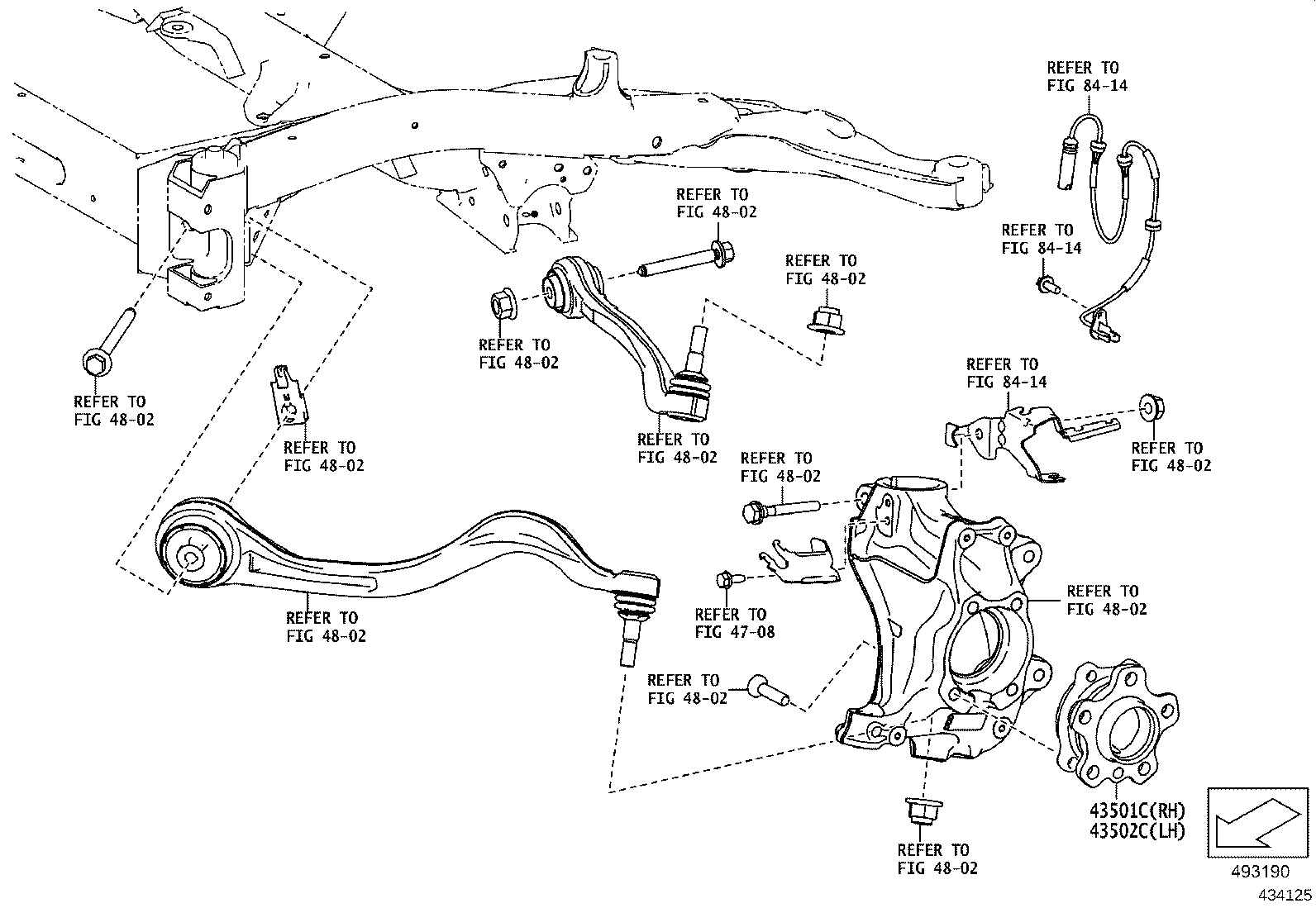

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

diagram 43501C 43502C 4708 4802 4802 4802 4802 4802 4802 4802 4802 4802 4802 4802 4802 8414 8414 8414
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-WAA01

DB2#,4#,81

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43550-WAA01

DB2#,4#,81

 1
Linked diagrams
4708
4802
8414

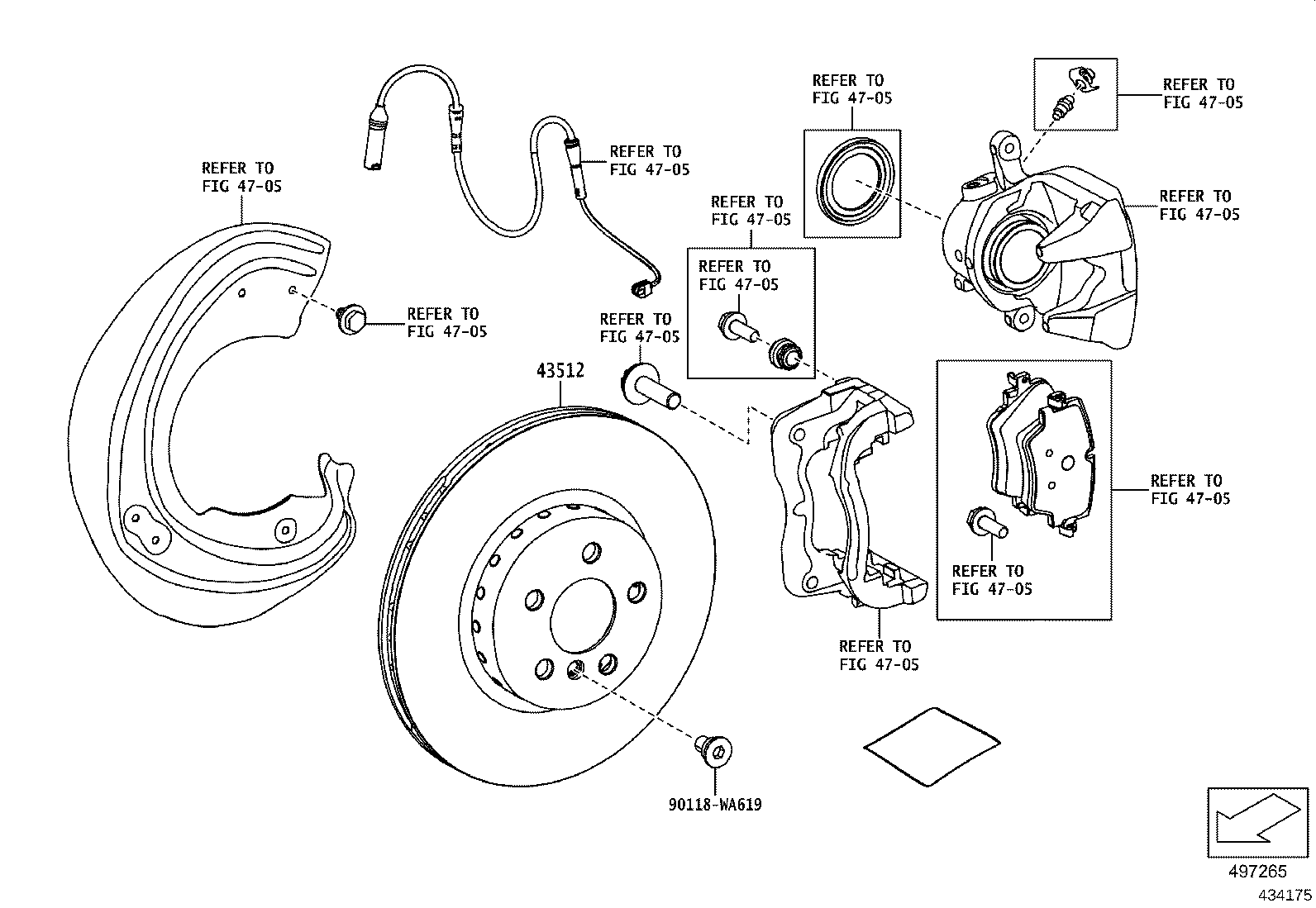

ILLUST NO. 2 OF 2(1903- )DB2#,8#

Click highlighted areas on diagram

diagram 43512 4705 4705 4705 4705 4705 4705 4705 4705 4705 4705 4705 4705 90118WA619
Part # Description Qty Price
Common parts
90118-WA619
Linked diagrams
4705

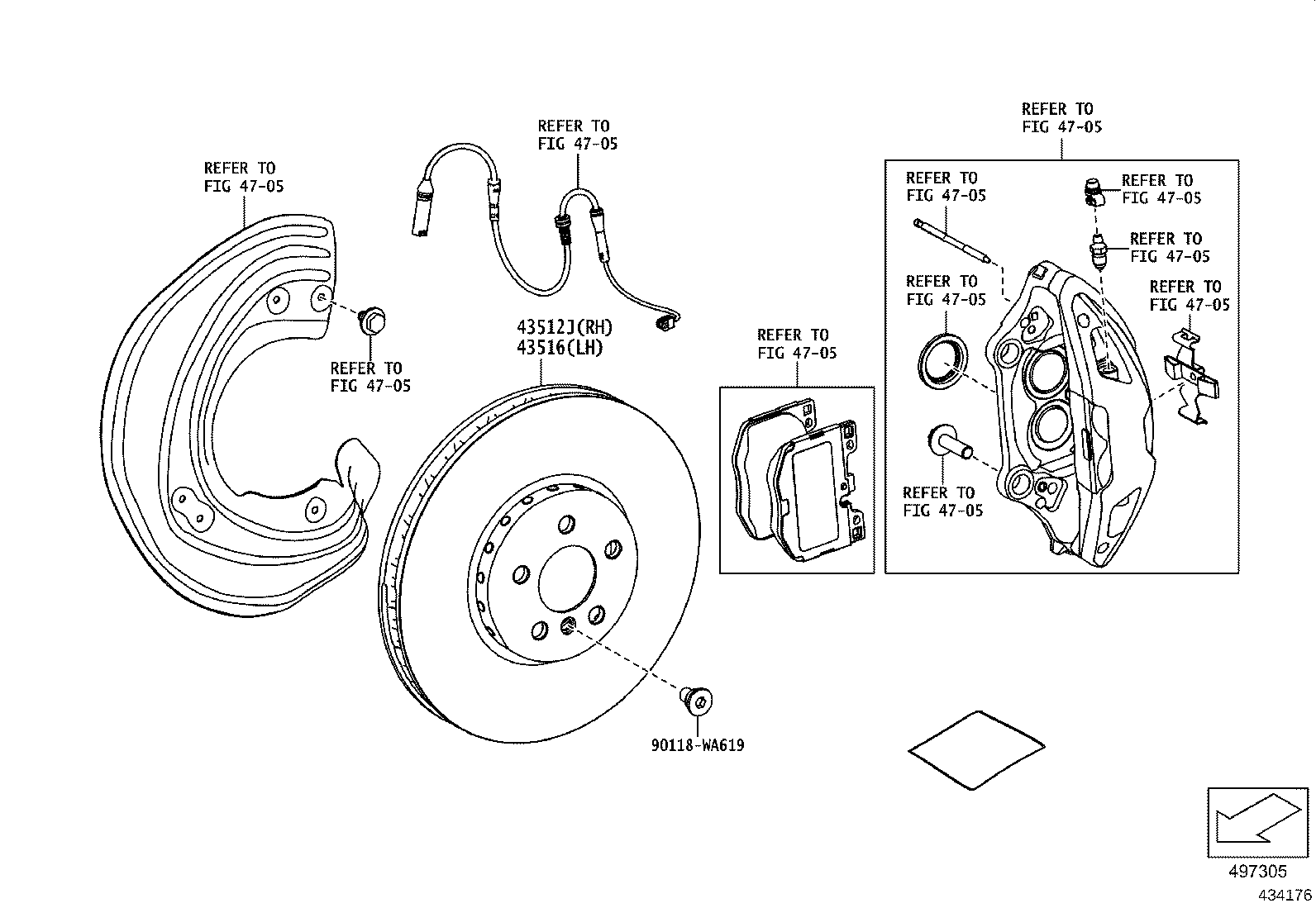

ILLUST NO. 2 OF 2(1903- )DB0#,2#,4#

Click highlighted areas on diagram

diagram 43512J 43516 4705 4705 4705 4705 4705 4705 4705 4705 4705 4705 4705 90118WA619
Part # Description Qty Price
43512J - DISC, FRONT RH
43512-WAA02

DB4#

 1
43516 - DISC, FRONT LH
43516-WAA01

DB4#

 1
Common parts
90118-WA619
Linked diagrams
4705
