DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

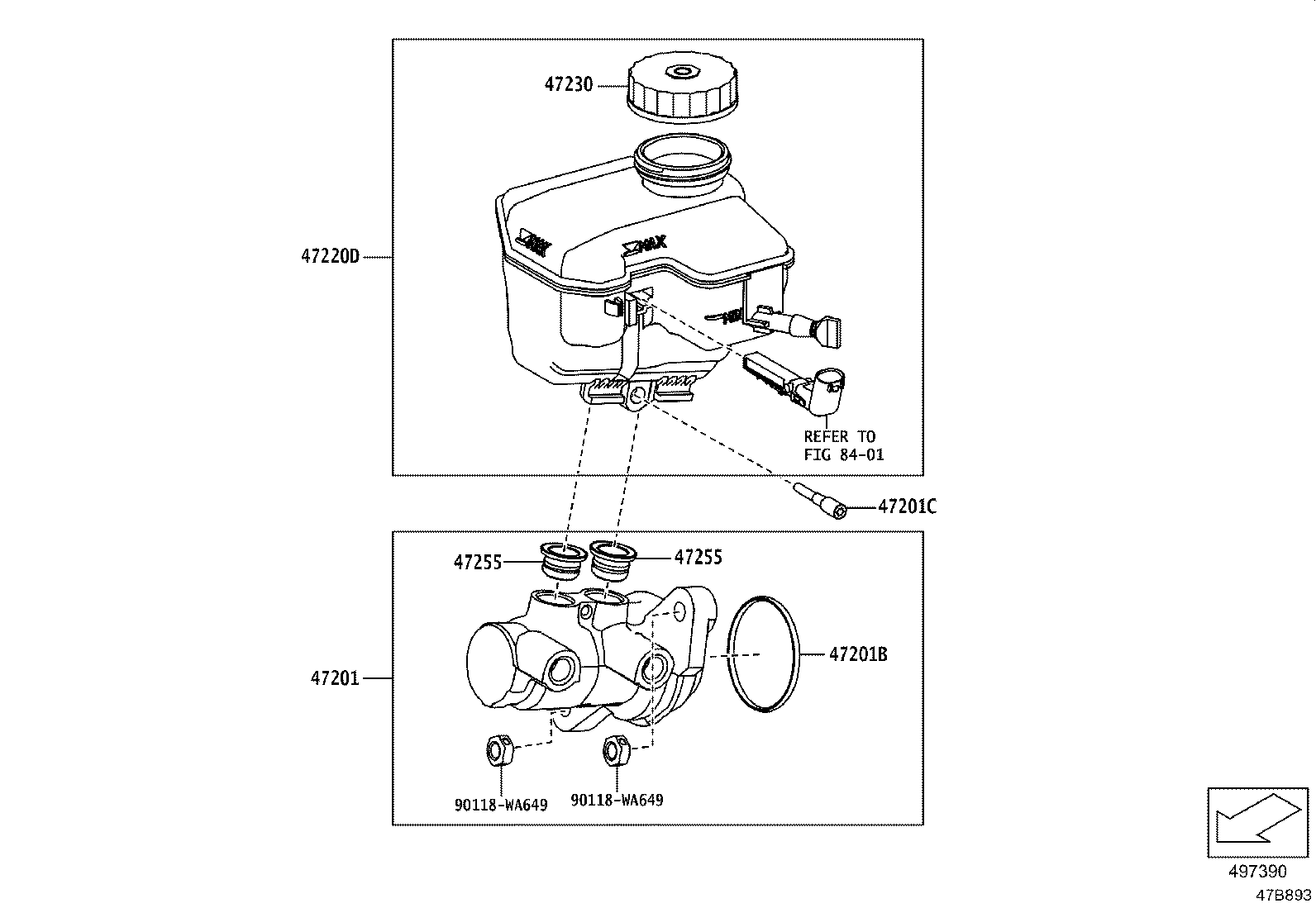

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

diagram 47201 47201B 47201C 47220D 47230 47255 47255 8401 90118WA649 90118WA649
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-WAA01

DB2#,4#,81

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90118-WA625

DB2#,4#,81

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90118-WA631

DB2#,4#,81

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-WAA01

DB2#,4#,81

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-WAA01

DB2#,4#,81

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90118-WA624

DB2#,4#,81

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90118-WA624

DB2#,4#,81

 2
Common parts
90118-WA649
Linked diagrams
8401

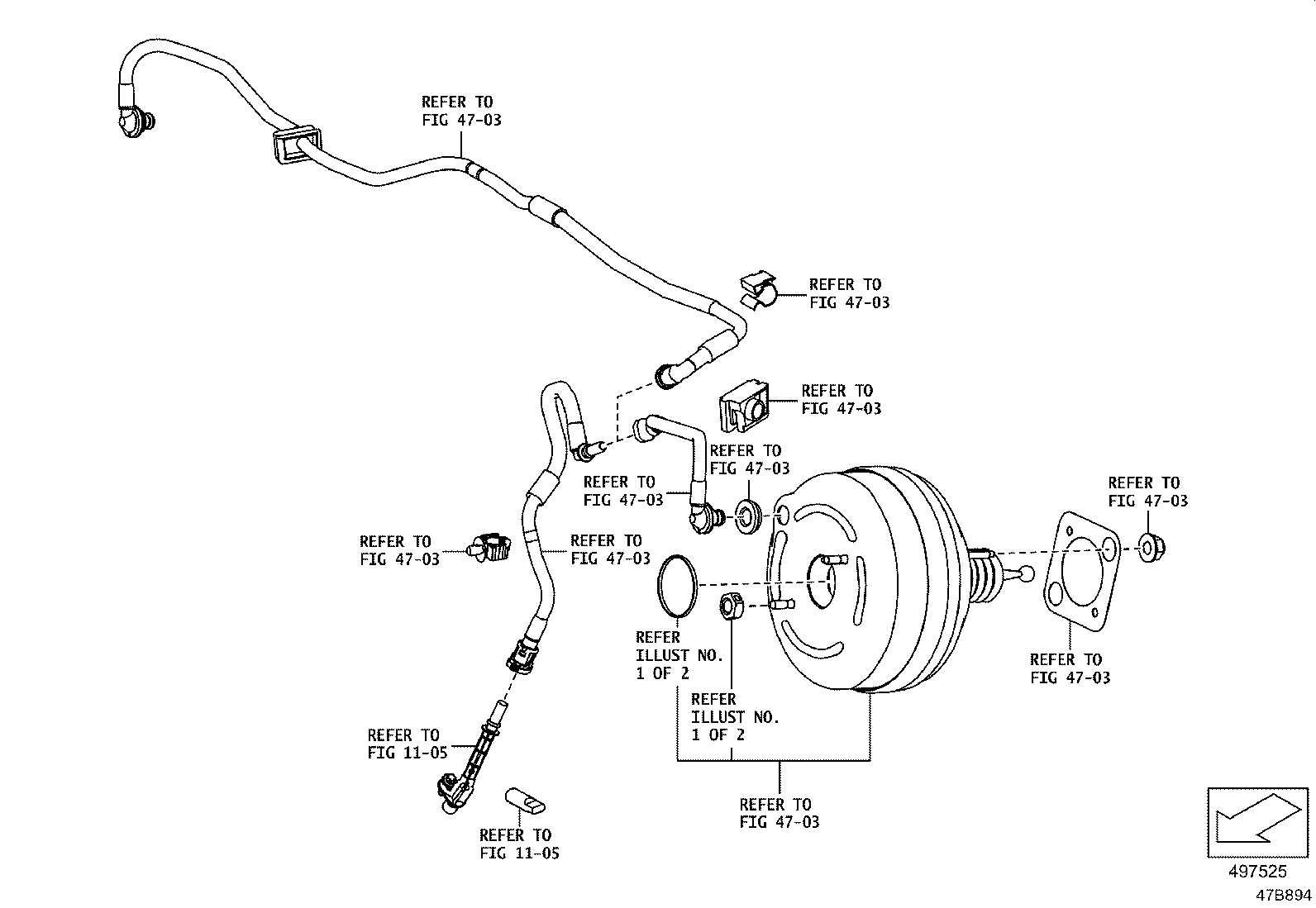

ILLUST NO. 2 OF 2(1903- )

Click highlighted areas on diagram

diagram 1105 1105 4703 4703 4703 4703 4703 4703 4703 4703 4703 4703
Part # Description Qty Price
Linked diagrams
1105
4703
