DB21L-ZTLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

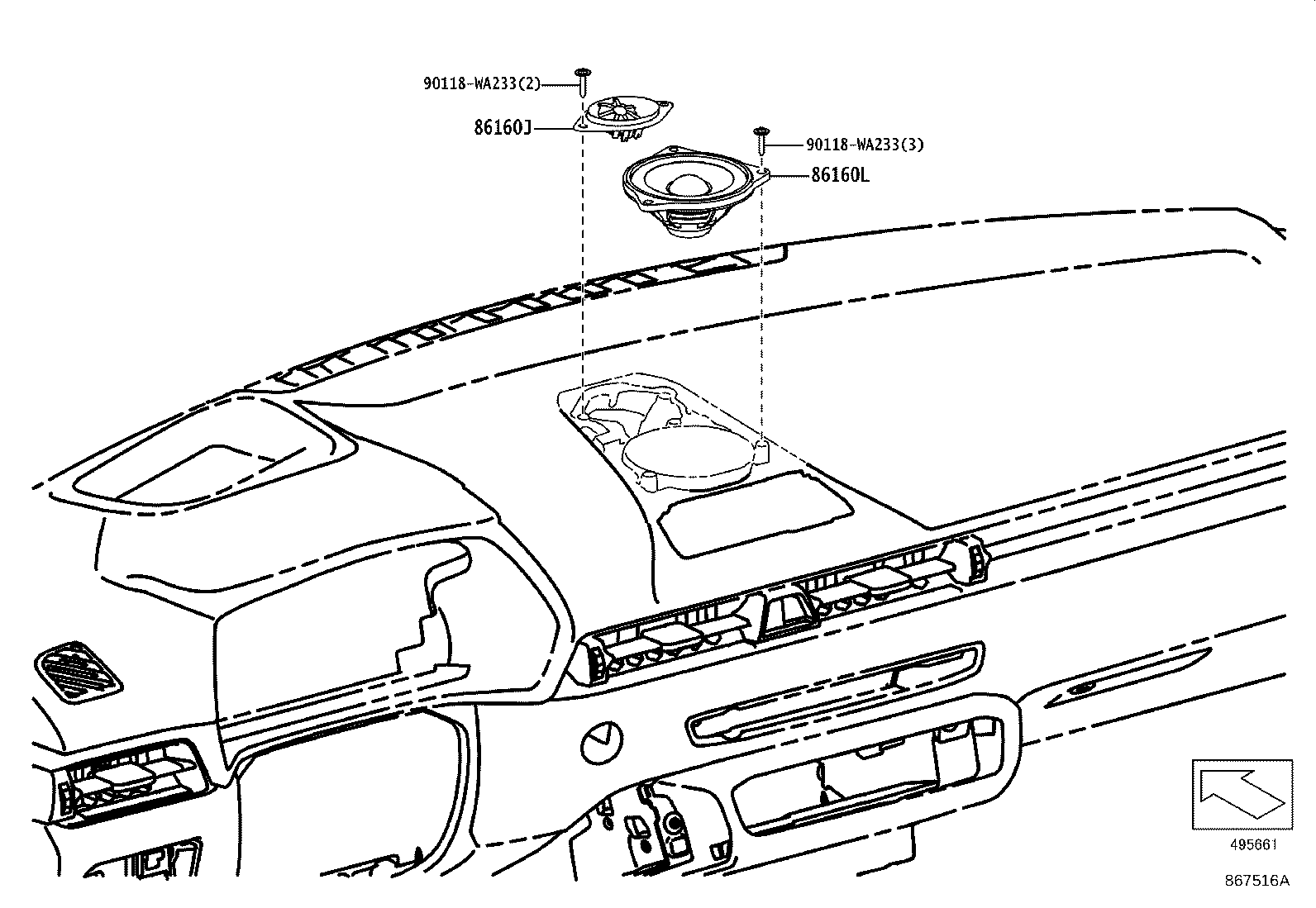

ILLUST NO. 2 OF 4(1903- )

Click highlighted areas on diagram

diagram 86160J 86160L 90118WA233 90118WA233
Part # Description Qty Price
86160J - SPEAKER ASSY, FRONT NO.3
86160-WAA10

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL

 1
86160-WAA11

DB2#,4#,81

AUDIO-AM/FM & 10SPEAKER

 1
86160L - SPEAKER ASSY, FRONT NO.4
86160-WAA04

DB2#,4#,81

AUDIO-AM/FM & 10SPEAKER

 1
86160-WAA01

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL

 1
Common parts
90118-WA233

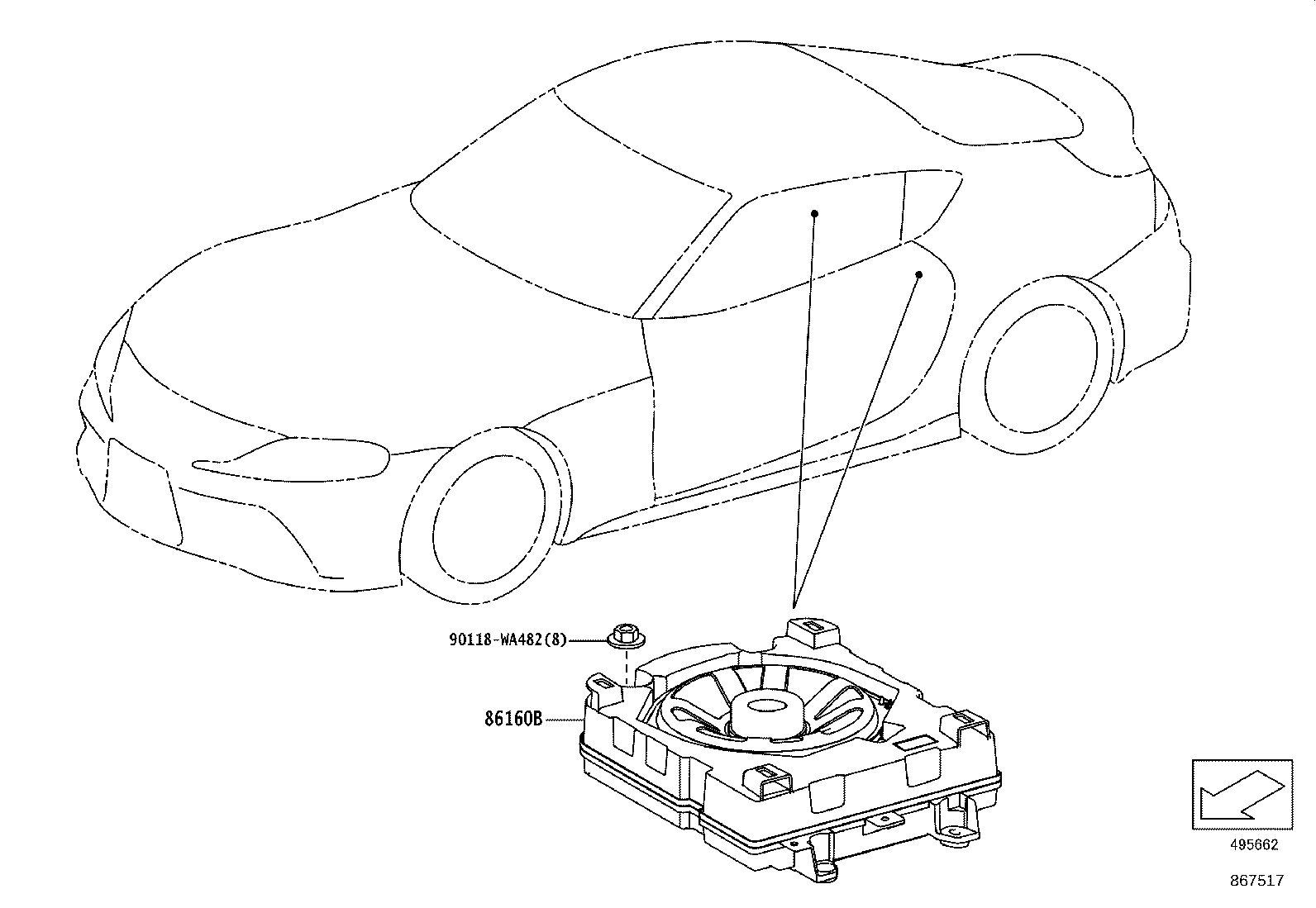

ILLUST NO. 4 OF 4(1903- )

Click highlighted areas on diagram

diagram 86160B 90118WA482
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86160-WAA08

DB2#,4#,81

AUDIO-AM/FM & 4SPEAKER

 2
86160-WAA07

DB2#,4#,81

AUDIO-AM/FM & 10SPEAKER

 2
86160-WAA03

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL

 2
Common parts
90118-WA482

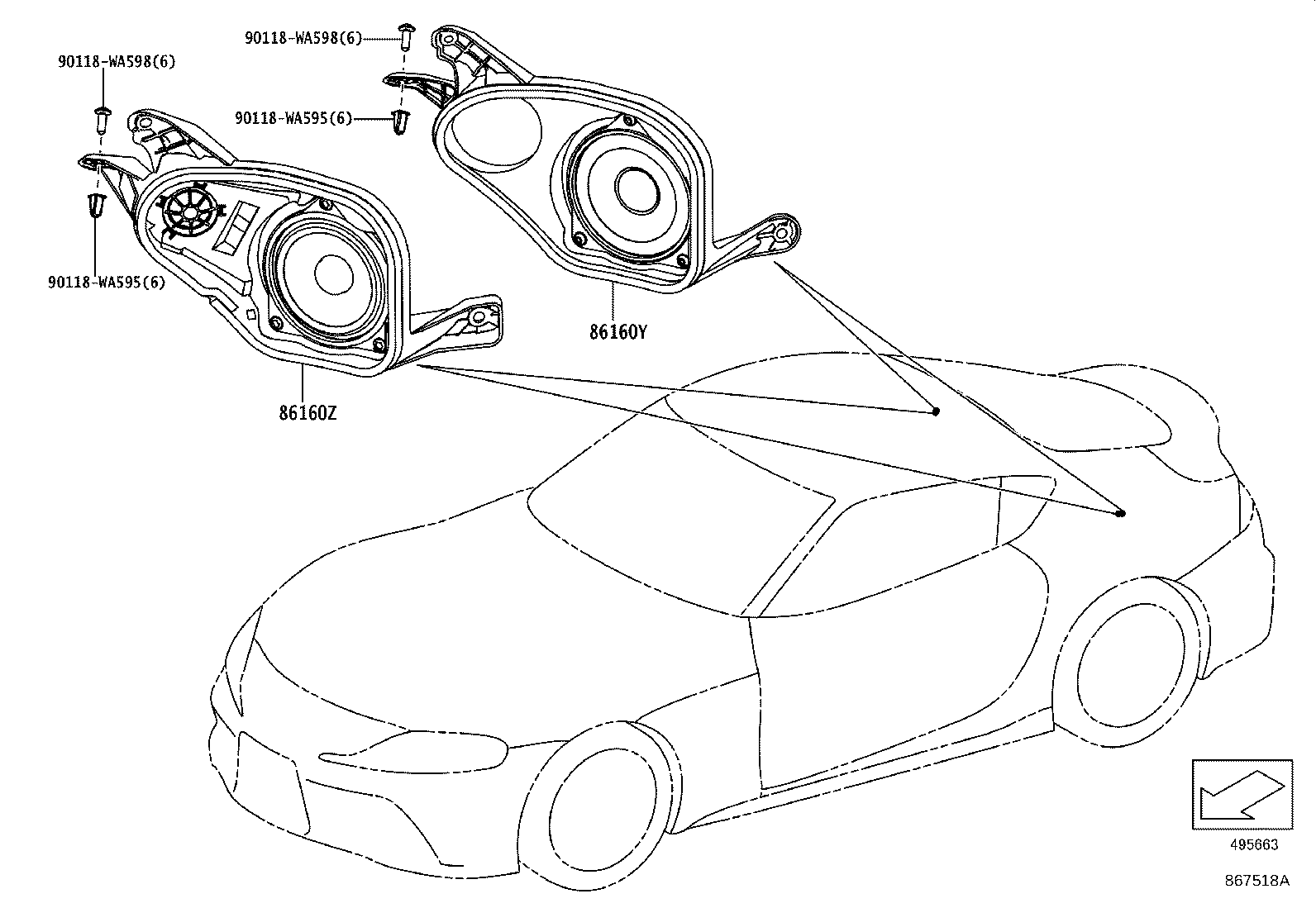

ILLUST NO. 3 OF 4(1903- )

Click highlighted areas on diagram

diagram 86160Y 86160Z 90118WA595 90118WA595 90118WA598 90118WA598
Part # Description Qty Price
86160Y - SPEAKER ASSY, REAR NO.2
86150-WAA01

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL

 1
86150-WAA03

DB2#,4#,81

AUDIO-AM/FM & 10SPEAKER

 1
86160Z - SPEAKER ASSY, REAR NO.3
86150-WAA02

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL

 1
86150-WAA04

DB2#,4#,81

AUDIO-AM/FM & 10SPEAKER

 1
Common parts
90118-WA595
90118-WA598

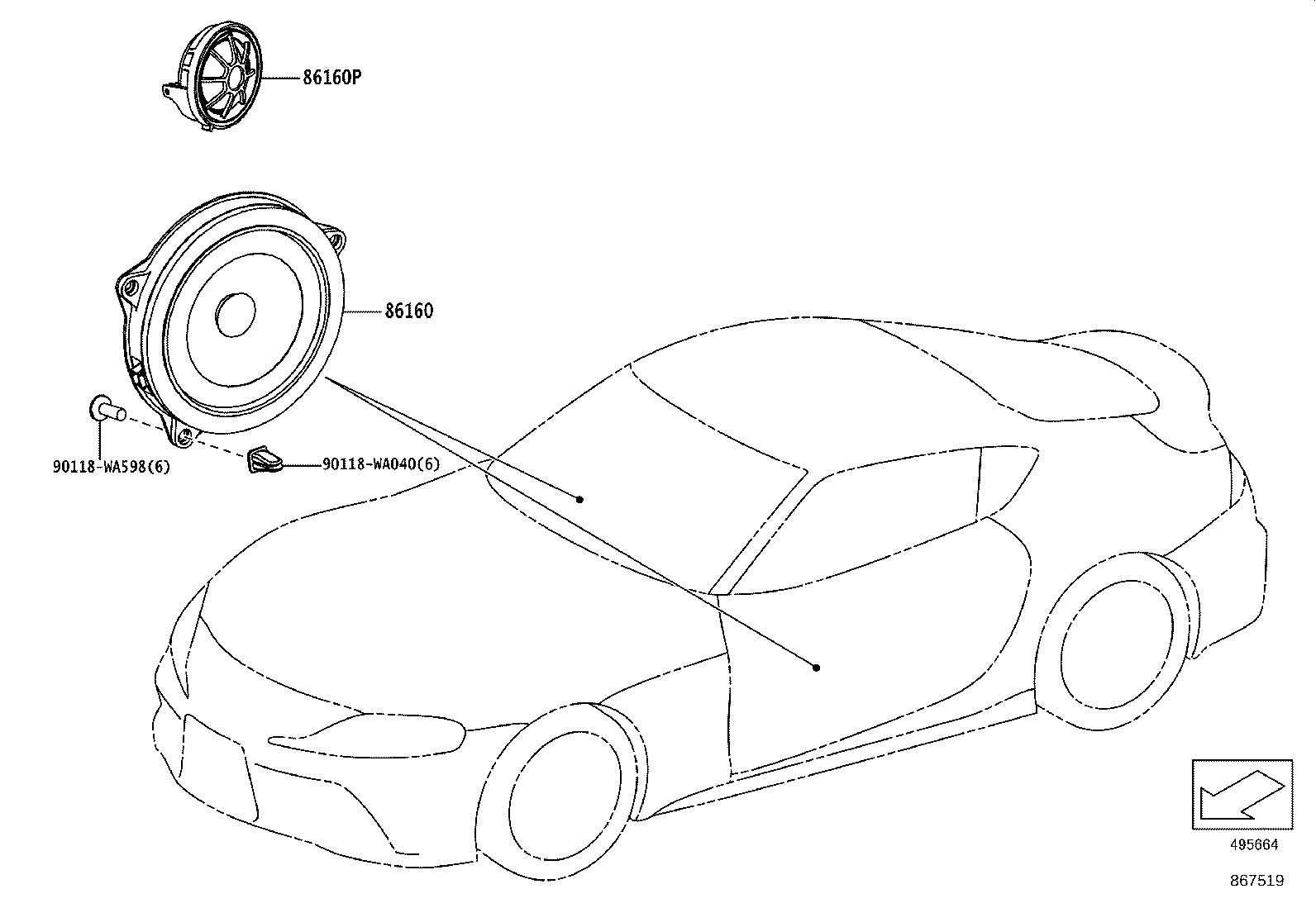

ILLUST NO. 1 OF 4(1903- )

Click highlighted areas on diagram

diagram 86160 86160P 90118WA040 90118WA598
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-WAA05

DB2#,4#,81

AUDIO-AM/FM & 10SPEAKER

 2
86160-WAA06

DB2#,4#,81

AUDIO-AM/FM & 4SPEAKER

 2
86160-WAA02

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-WAA09

DB2#,4#,81

AUDIO-AM/FM & 10SPEAKER

 2
86160-WAA12

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL

 2
Common parts
90118-WA040
90118-WA598
