DB21L-ZTLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

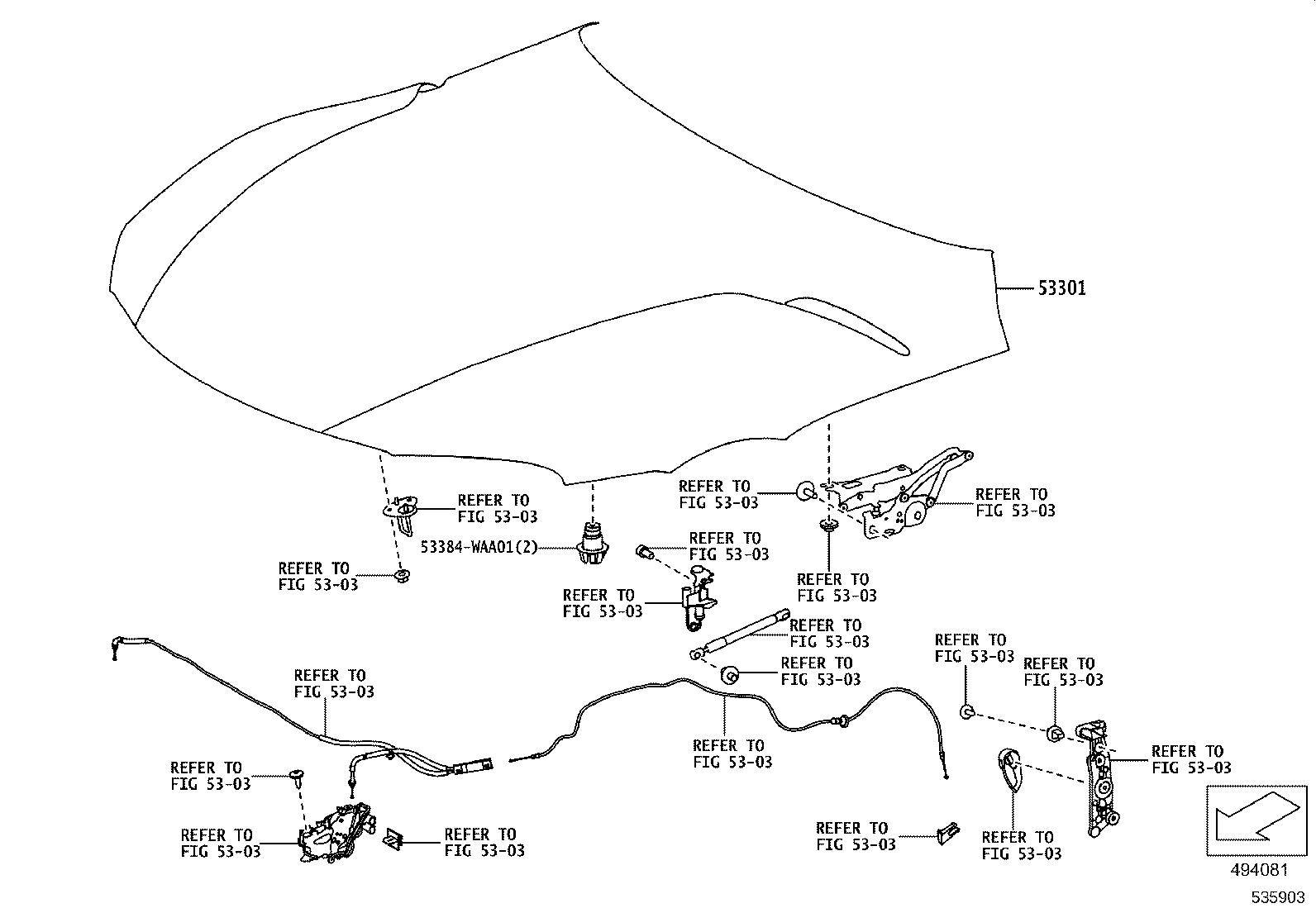

ILLUST NO. 1 OF 5(1903- )

Click highlighted areas on diagram

diagram 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 5303 53301 53384WAA01
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-WAA01

DB2#,4#,81

 1
Common parts
53384-WAA01
Linked diagrams
5303

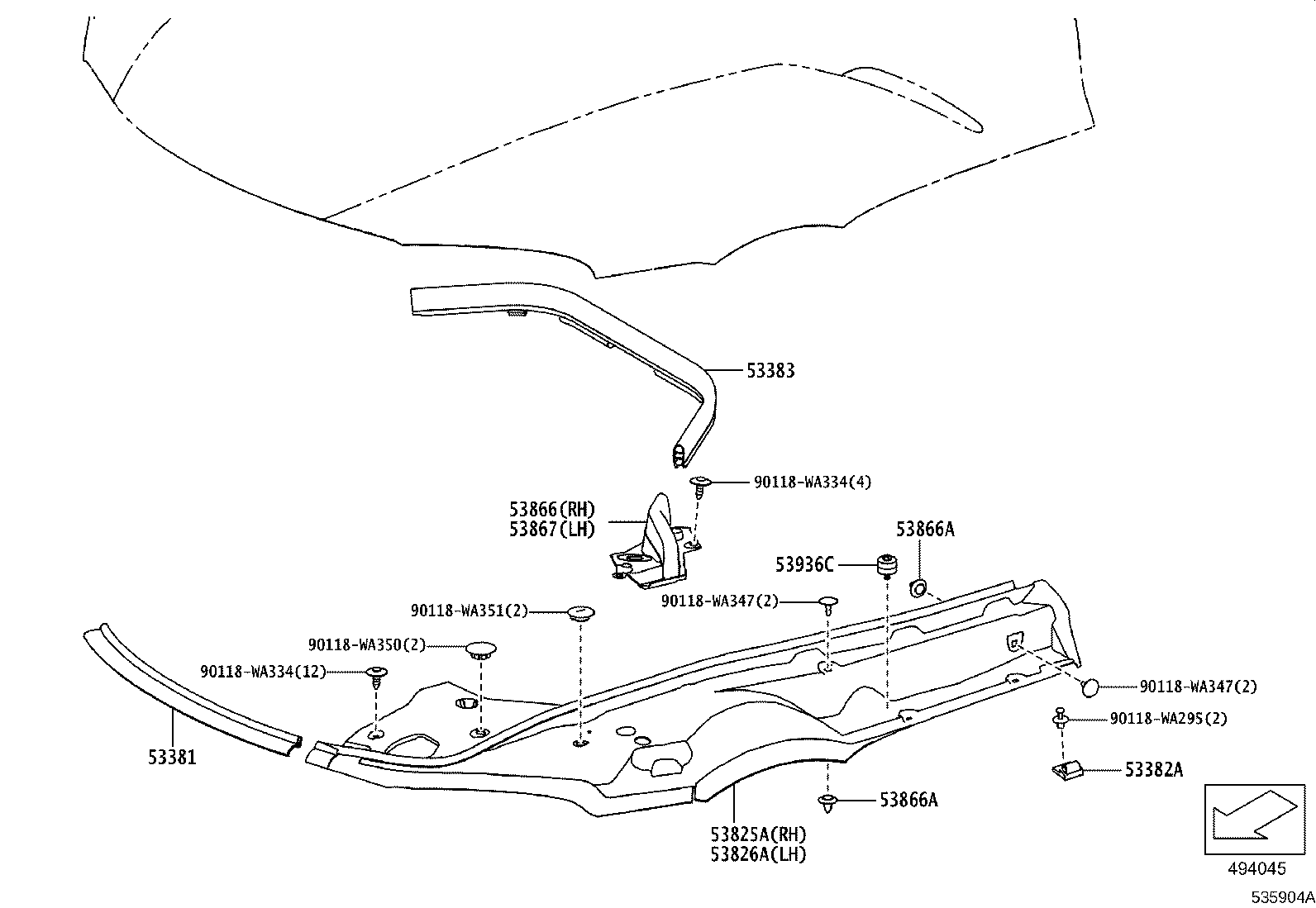

ILLUST NO. 2 OF 5(1903- )

Click highlighted areas on diagram

diagram 53381 53382A 53383 53825A 53826A 53866 53866A 53866A 53867 53936C 90118WA295 90118WA334 90118WA334 90118WA347 90118WA347 90118WA350 90118WA351
Part # Description Qty Price
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-WAA01

DB2#,4#,81

 1
53382A - BUMPER, HOOD, REAR
90118-WA338

DB2#,4#,81

 2
53383 - SEAL, HOOD TO COWL TOP
53383-WAA01

DB2#,4#,81

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-WAA02

DB2#,4#,81

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-WAA02

DB2#,4#,81

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53388-WAA01

DB2#,4#,81

 1
53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
90118-WA348

DB2#,4#,81

 4
53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
90118-WA348

DB2#,4#,81

 4
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53389-WAA01

DB2#,4#,81

 1
53936C - CUSHION
90118-WA349

DB2#,4#,81

 10
Common parts
90118-WA295
90118-WA334
90118-WA347
90118-WA350
90118-WA351

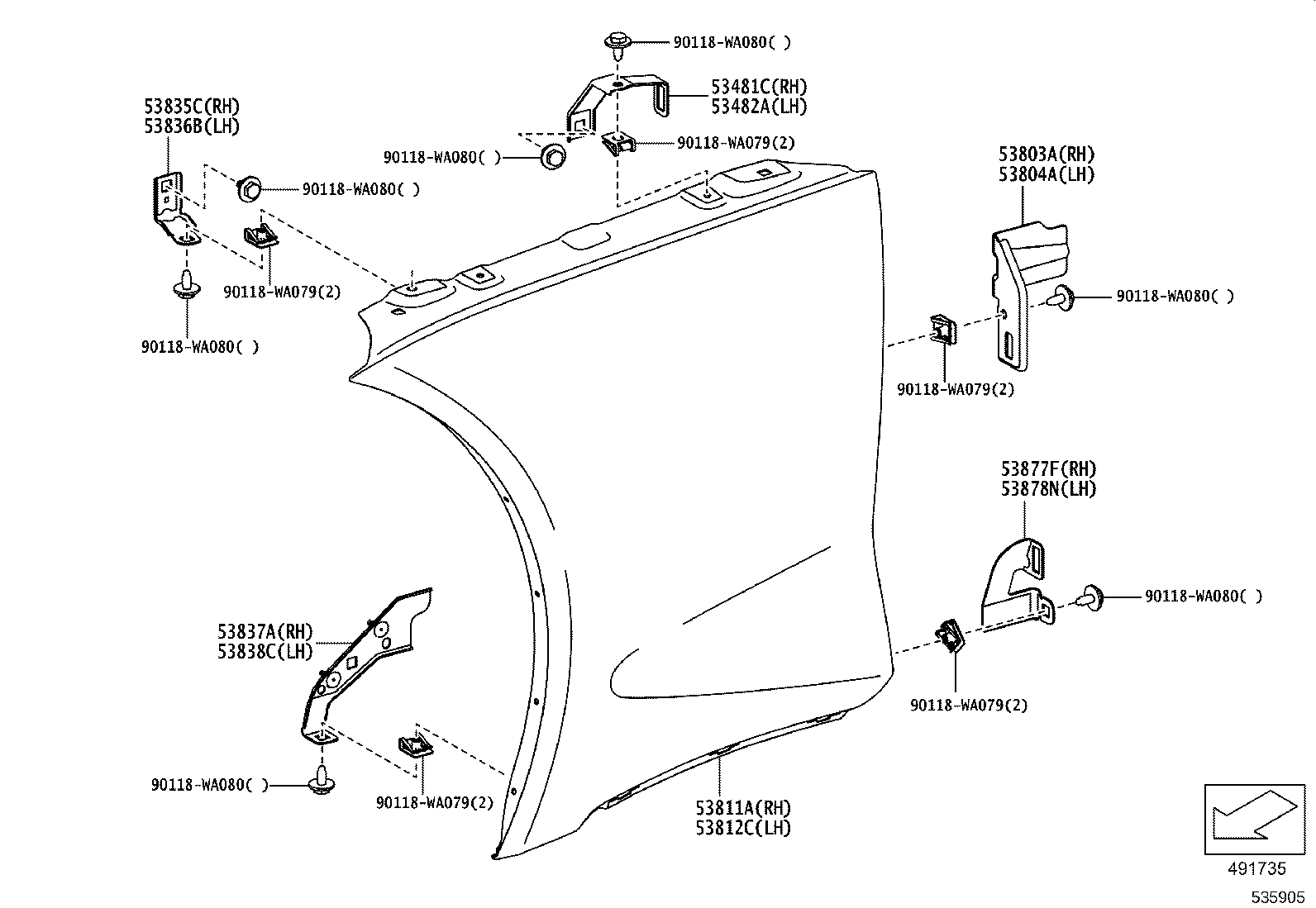

ILLUST NO. 3 OF 5(1903- )

Click highlighted areas on diagram

diagram 53481C 53482A 53803A 53804A 53811A 53812C 53835C 53836B 53837A 53838C 53877F 53878N 90118WA079 90118WA079 90118WA079 90118WA079 90118WA079 90118WA080 90118WA080 90118WA080 90118WA080 90118WA080 90118WA080 90118WA080
Part # Description Qty Price
53481C - BRACKET, HOOD SUPPORT, RH, NO.1
53715-WAA01

DB2#,4#,81

 1
53482A - BRACKET, HOOD SUPPORT, LH, NO.1
53716-WAA01

DB2#,4#,81

 1
53803A - BRACKET SUB-ASSY, FRONT SIDE PANEL, RH
61145-WAA01

DB2#,4#,81

 1
53804A - BRACKET SUB-ASSY, FRONT SIDE PANEL, LH
61146-WAA01

DB2#,4#,81

 1
53811A - PANEL, FRONT FENDER, RH
53811-WAA01

DB2#,4#,81

 1
53812C - PANEL, FRONT FENDER, LH
53812-WAA01

DB2#,4#,81

 1
53835C - BRACKET, FRONT SIDE PANEL, RH
53703-WAA01

DB2#,4#,81

 1
53836B - BRACKET, FRONT SIDE PANEL, LH
53704-WAA01

DB2#,4#,81

 1
53837A - BRACKET, FRONT SIDE PANEL, NO.2
53879-WAA02

DB2#,4#,81

 1
53838C - BRACKET, FRONT SIDE PANEL, NO.2 LH
53879-WAA01

DB2#,4#,81

 1
53877F - BRACKET, FRONT FENDER LINER, RH
53821-WAA01

DB2#,4#,81

 1
53878N - BRACKET, FRONT FENDER LINER, LH
53822-WAA01

DB2#,4#,81

 1
Common parts
90118-WA079
90118-WA080

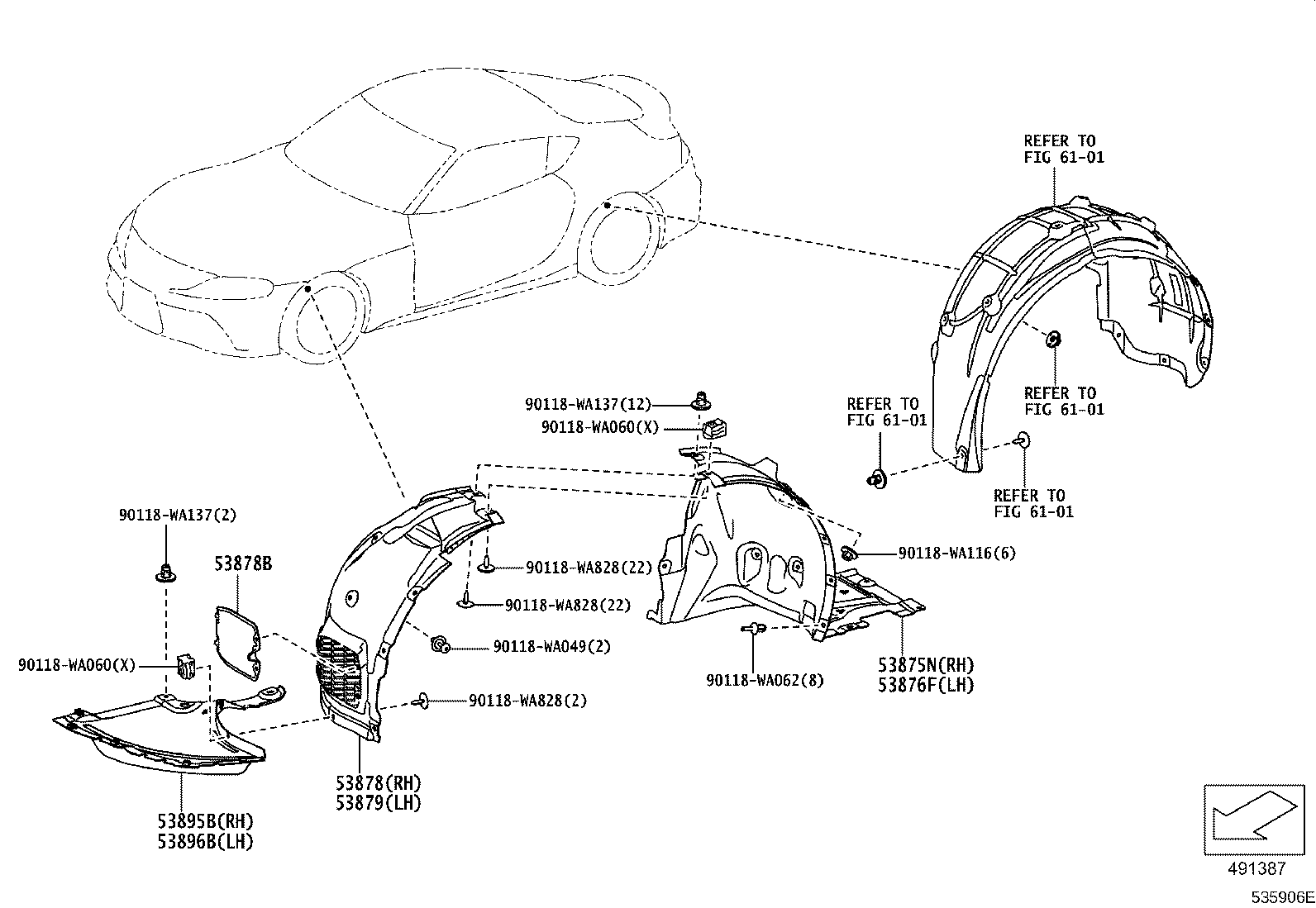

ILLUST NO. 4 OF 5(1903- )

Click highlighted areas on diagram

diagram 53875N 53876F 53878 53878B 53879 53895B 53896B 6101 6101 6101 6101 90118WA049 90118WA060 90118WA060 90118WA062 90118WA116 90118WA137 90118WA137 90118WA828 90118WA828 90118WA828
Part # Description Qty Price
53875N - LINER, FRONT FENDER, RH NO.2
53891-WAA01

DB2#,4#,81

 1
53876F - LINER, FRONT FENDER, LH NO.2
53892-WAA01

DB2#,4#,81

 1
53878 - LINER, FRONT FENDER, RH
53895-WAA01

DB2#,4#,81

 1
53878B - PROTECTOR, FRONT FENDER LINER
53891-WAA02

DB2#,81

 2
53879 - LINER, FRONT FENDER, LH
53896-WAA01

DB2#,4#,81

 1
53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH
53807-WAA01

DB2#,4#,81

 1
53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH
53808-WAA01

DB2#,4#,81

 1
Common parts
90118-WA049
90118-WA060
90118-WA062
90118-WA116
90118-WA137
90118-WA828
Linked diagrams
6101

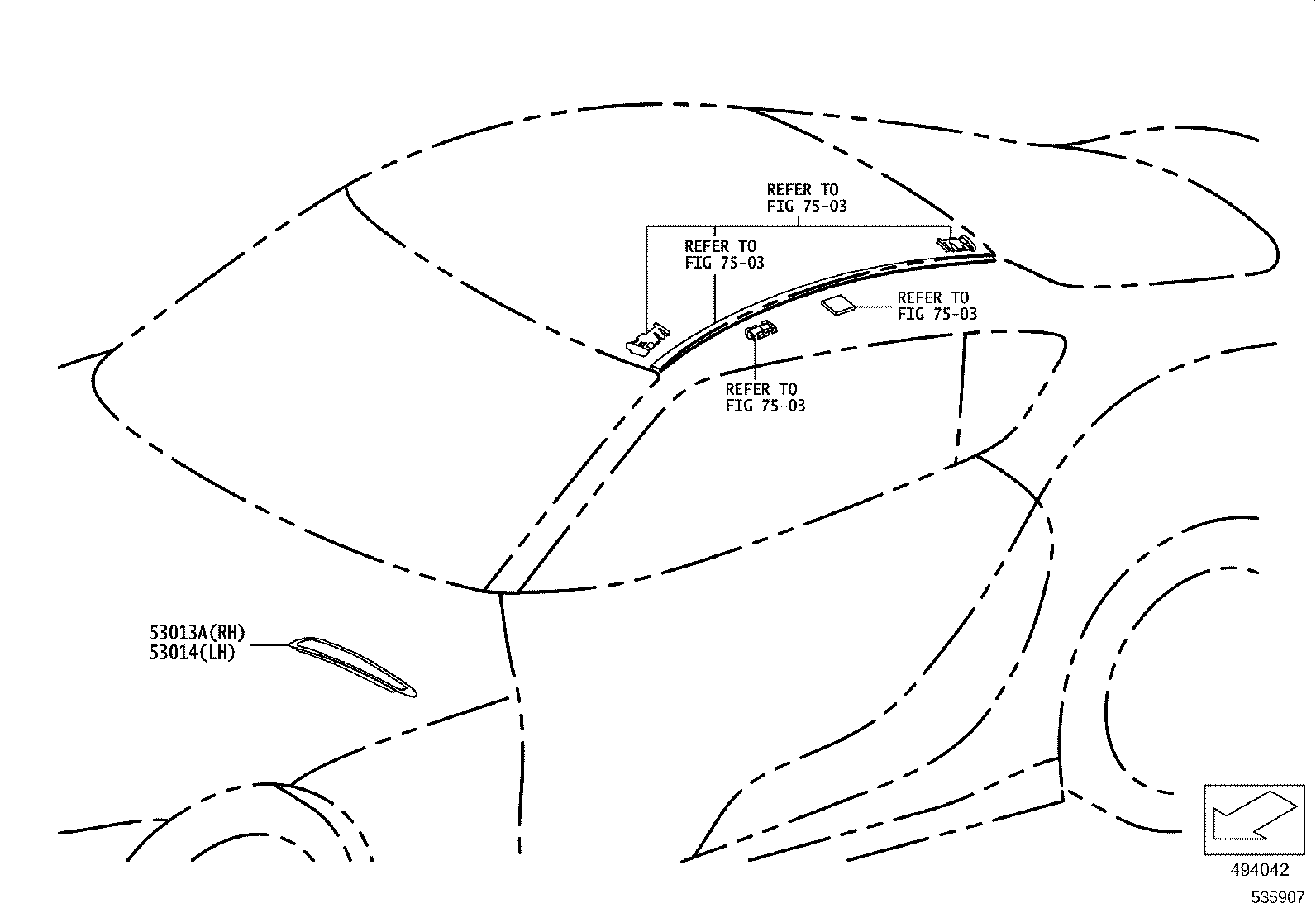

ILLUST NO. 5 OF 5(1903- )

Click highlighted areas on diagram

diagram 53013A 53014 7503 7503 7503 7503
Part # Description Qty Price
53013A - GUIDE SUB-ASSY, FRONT SIDE AIR, RH
53142-WAA02

DB2#,4#,81

 1
53014 - GUIDE SUB-ASSY, FRONT SIDE AIR, LH
53142-WAA01

DB2#,4#,81

 1
Linked diagrams
7503
