DB21L-ZTLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

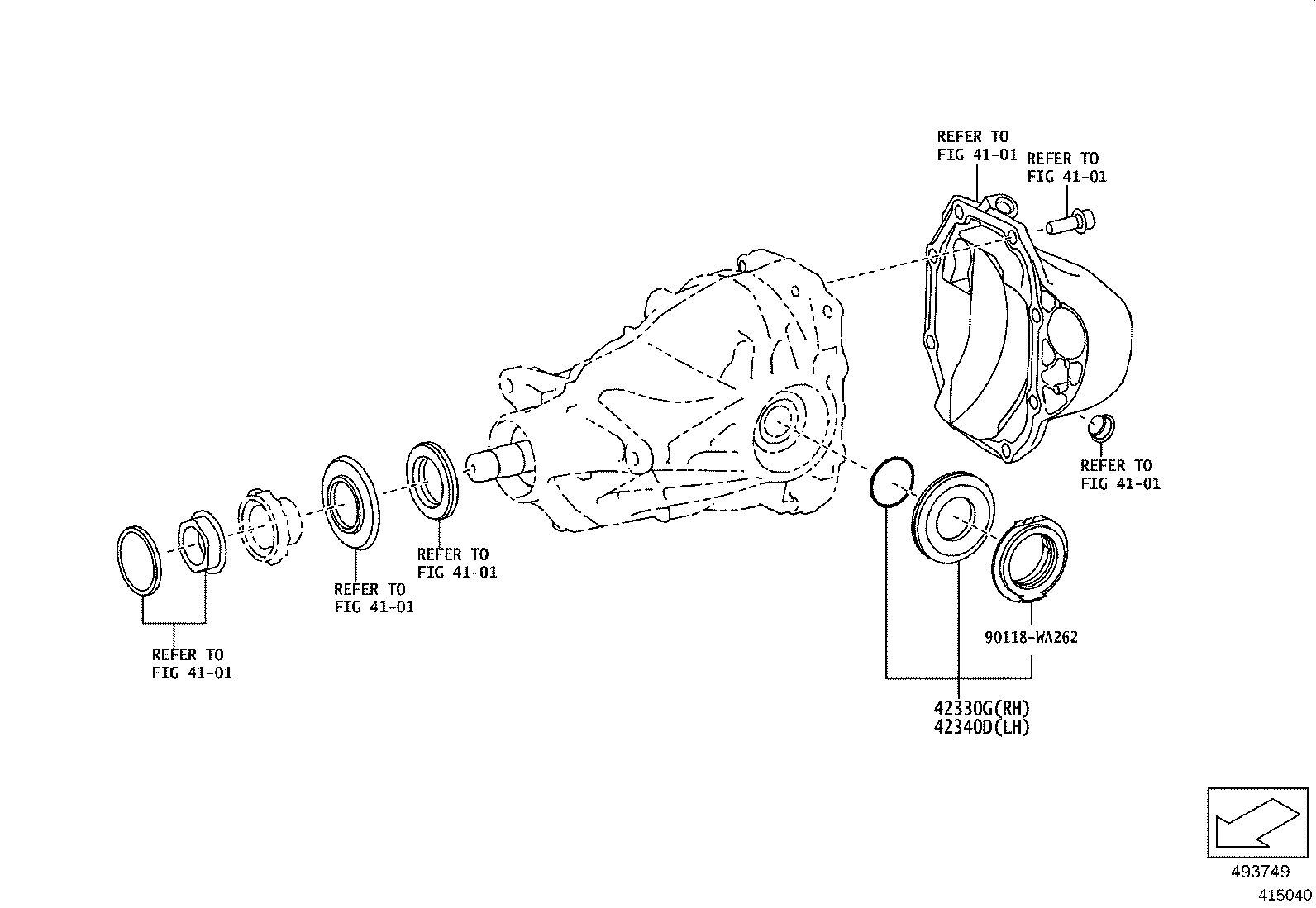

ILLUST NO. 1 OF 4(1903- )

Click highlighted areas on diagram

diagram 4101 4101 4101 4101 4101 4101 42330G 42340D 90118WA262
Part # Description Qty Price
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90118-WA520

DB2#,81

 1
90118-WA521

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90118-WA521

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
90118-WA520

DB2#,81

 1
Common parts
90118-WA262
Linked diagrams
4101

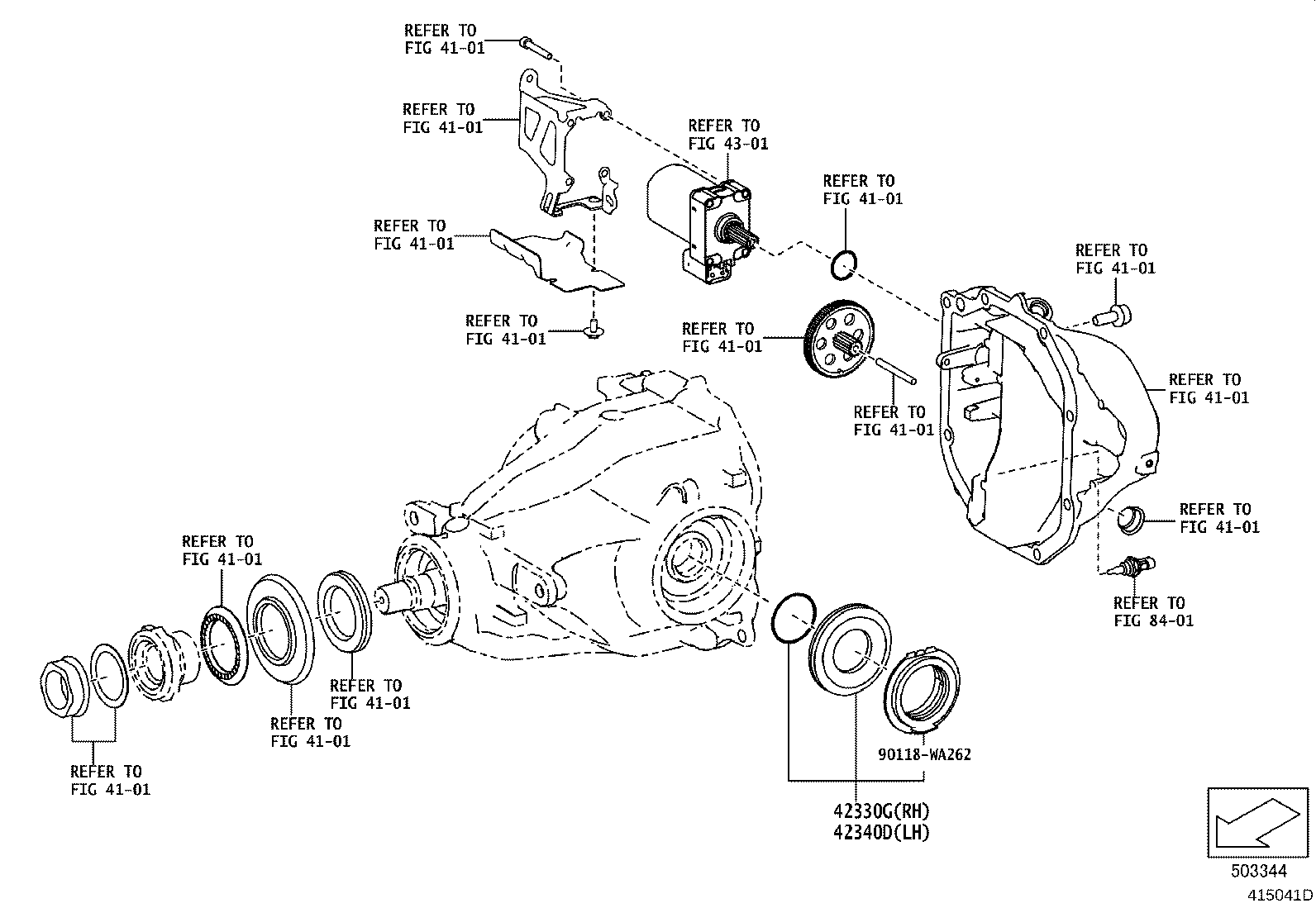

ILLUST NO. 1 OF 4(1903- )DB0#,2#,4#

Click highlighted areas on diagram

W(LSD)

diagram 4101 4101 4101 4101 4101 4101 4101 4101 4101 4101 4101 4101 4101 4101 42330G 42340D 4301 8401 90118WA262
Part # Description Qty Price
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90118-WA520

DB2#,81

 1
90118-WA521

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90118-WA521

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
90118-WA520

DB2#,81

 1
Common parts
90118-WA262
Linked diagrams
4101
4301
8401

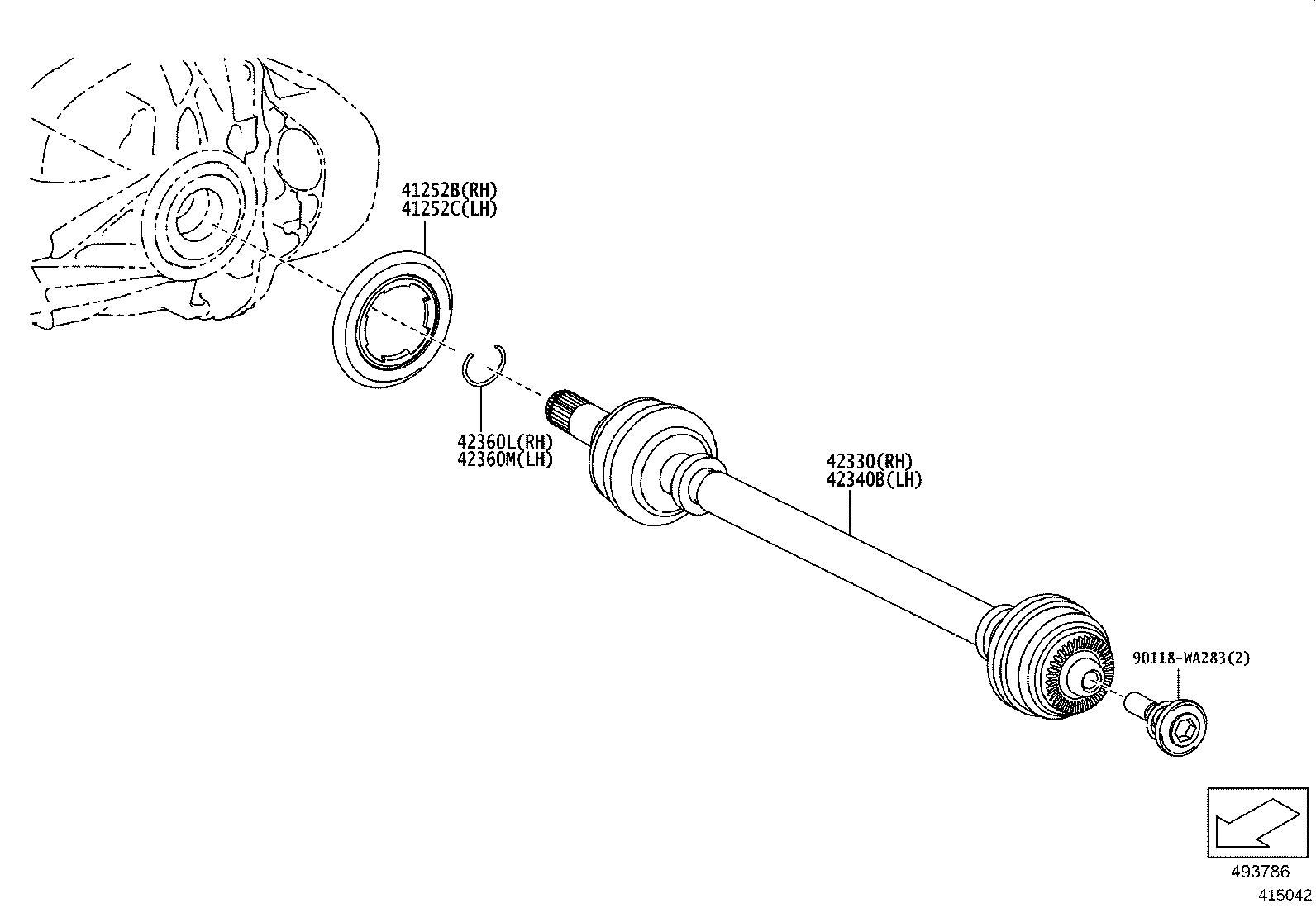

ILLUST NO. 2 OF 4(1903- )

Click highlighted areas on diagram

diagram 41252B 41252C 42330 42340B 42360L 42360M 90118WA283
Part # Description Qty Price
41252B - DEFLECTOR, DUST, RH
41336-WAA02

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
41336-WAA03

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
41336-WAA01

DB2#,81

 1
41252C - DEFLECTOR, DUST, LH
41336-WAA01

DB2#,81

 1
41336-WAA02

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
41336-WAA03

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-WAA05

DB2#,81

 1
42330-WAA04

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-WAA04

DB2#,4#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
42340-WAA01

DB2#,81

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90118-WA275

DB2#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
90118-WA276

DB2#,81

 1
90118-WA411

DB2#,8#

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90118-WA411

DB2#,8#

 1
90118-WA275

DB2#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
90118-WA276

DB2#,81

 1
Common parts
90118-WA283

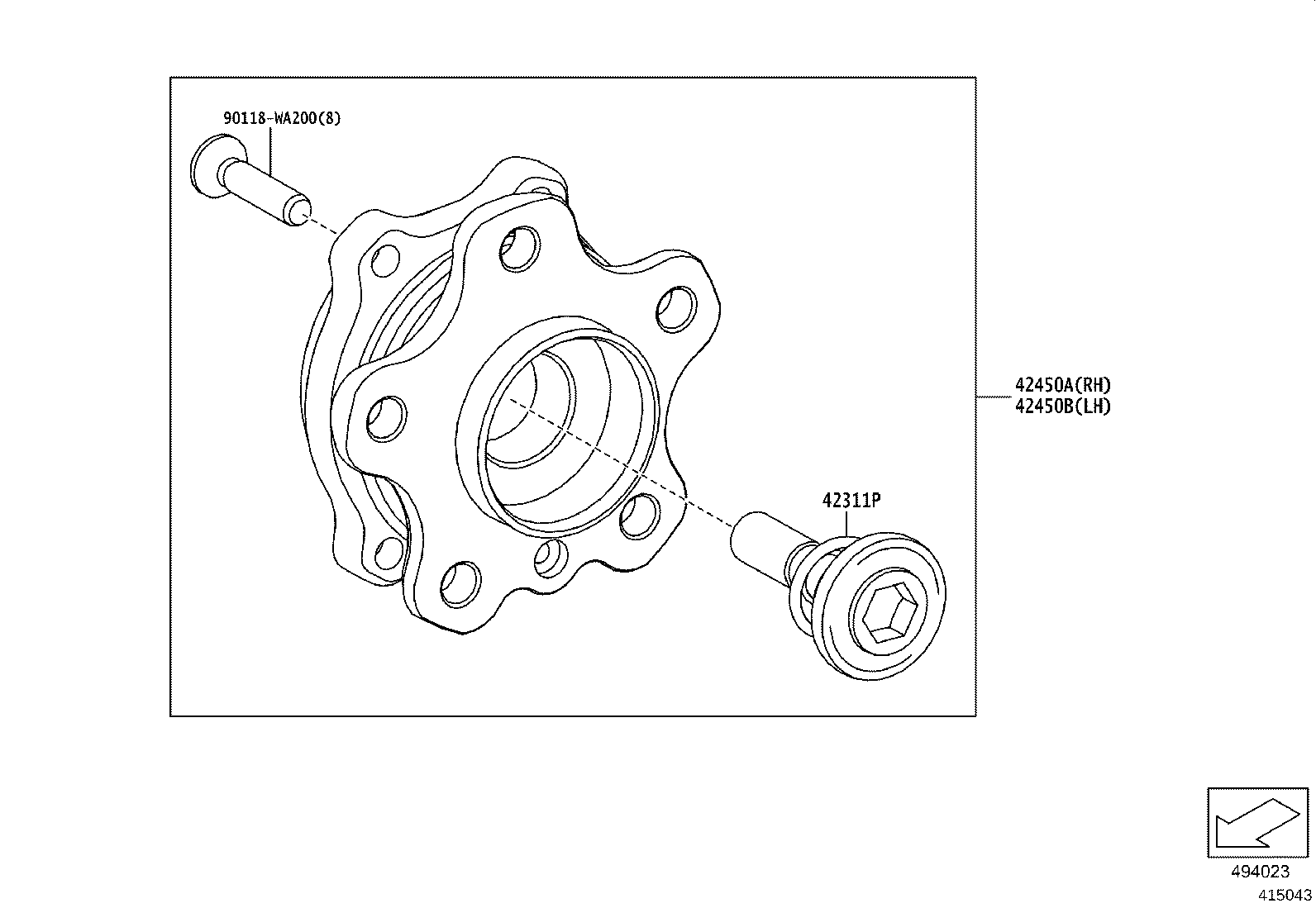

ILLUST NO. 3 OF 4(1903- )

Click highlighted areas on diagram

diagram 42311P 42450A 42450B 90118WA200
Part # Description Qty Price
42311P - BOLT (FOR REAR AXLE SHAFT)
90118-WA283

DB2#,4#,81

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42410-WAA01

DB2#,4#,81

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42410-WAA01

DB2#,4#,81

 1
Common parts
90118-WA200

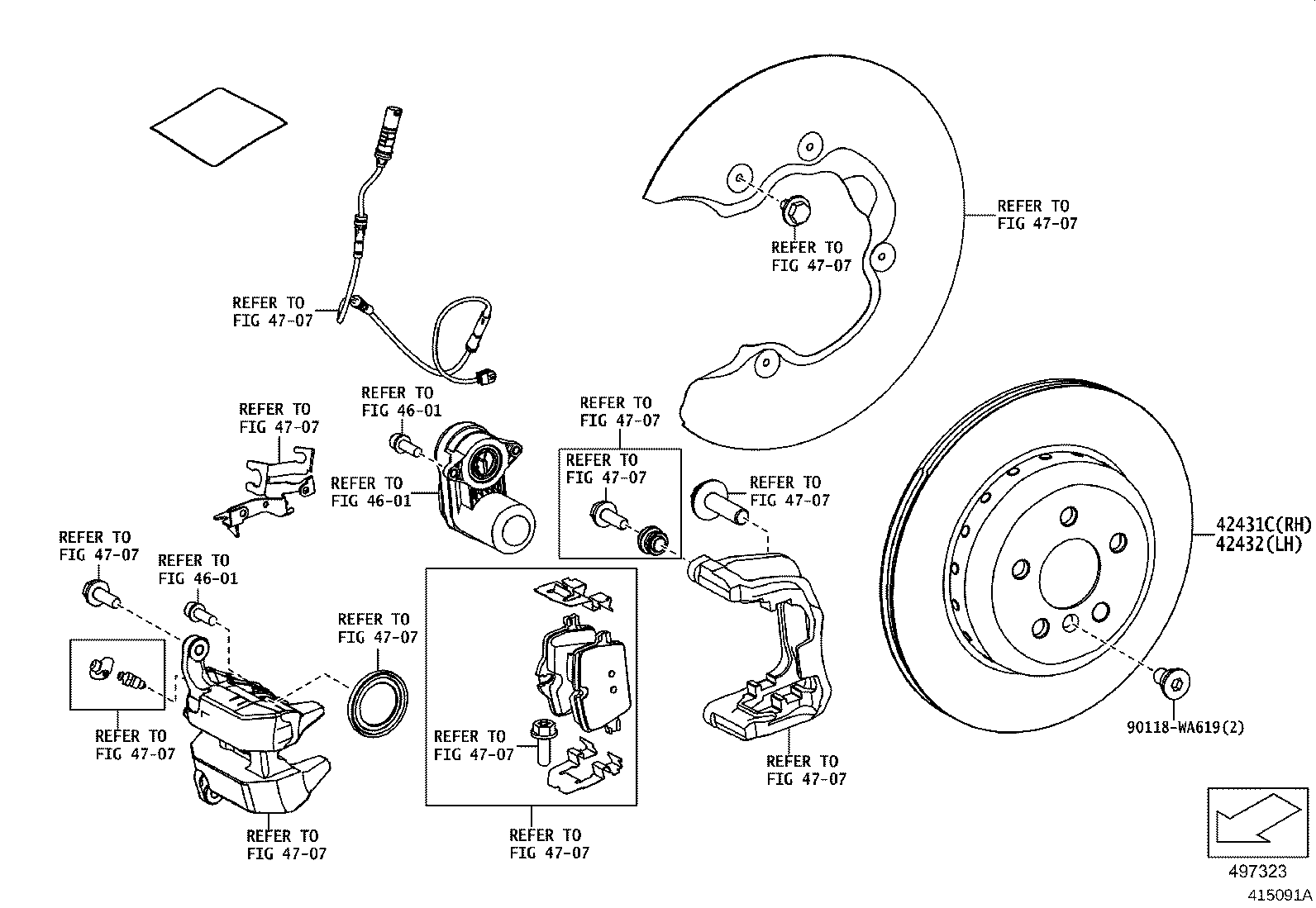

ILLUST NO. 4 OF 4(1903- )

Click highlighted areas on diagram

diagram 42431C 42432 4601 4601 4601 4707 4707 4707 4707 4707 4707 4707 4707 4707 4707 4707 4707 4707 4707 90118WA619
Part # Description Qty Price
42431C - DISC, REAR RH
42431-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
42431-WAA01

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
42431-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
42431-WAA03

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
42432 - DISC, REAR LH
42431-WAA01

DB2#,4#

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
42431-WAA02

DB2#,4#

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
42431-WAA02

DB2#,4#

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
42431-WAA01

DB2#,4#

FRONT WHEEL BRAKE-RED PAINTED

 1
Common parts
90118-WA619
Linked diagrams
4601
4707
