DB01L-ZULW (2020)

Toyota Supra

Production Mar 2020 - Sep 9999
Engine B58H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

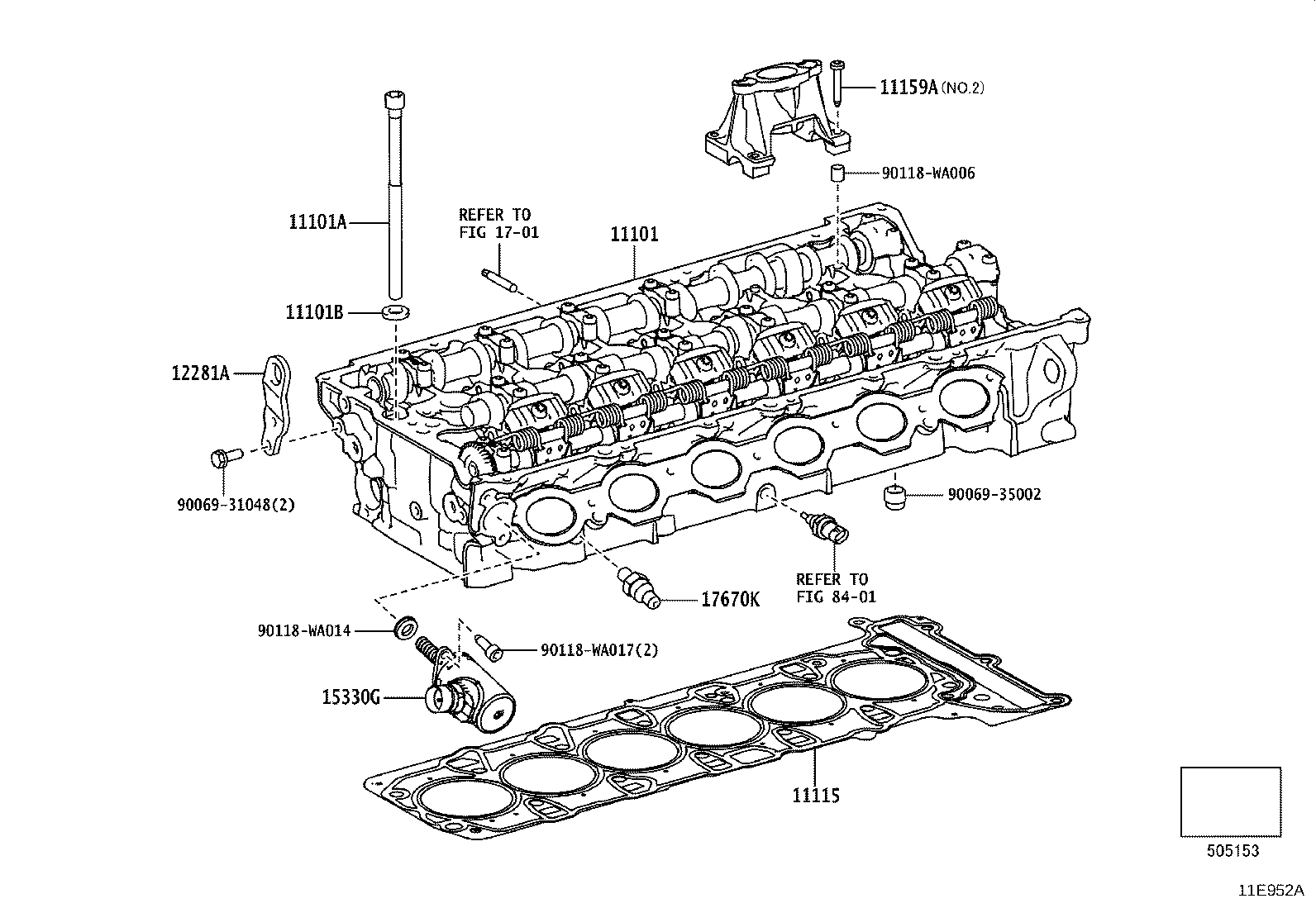

ILLUST NO. 1 OF 6(2003- )B58H

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11159A 12281A 15330G 1701 17670K 8401 9006931048 9006935002 90118WA006 90118WA014 90118WA017
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11107-WAA03

B58H..DB0#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90118-WA011

B58H..DB0#

 14
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90118-WA005

B58H..DB0#

 14
11115 - GASKET, CYLINDER HEAD
11115-WAA03

B58H..DB0#

T=0.81

 1
11115-WAA04

B58H..DB0#

T=1.11

 1
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90118-WA766

B58H..DB0#

#,NO.2

 24
90118-WA212

B58H..DB0#

##,NO.2

 30
90118-WA765

B58H..DB0#

##,NO.1

 23
90118-WA213

B58H..DB0#

#,NO.1

 13
12281A - HANGER, ENGINE, NO.1
12281-WAA01

B58H..DB0#

 1
15330G - MOTOR, SERVO
15330-WAA02

B58H..DB0#

 1
17670K - VALVE ASSY, AIR BY-PASS
17670-WAA01

B58H..DB0#

 1
Common parts
90069-31048
90069-35002
90118-WA006
90118-WA014
90118-WA017
Linked diagrams
1701
8401
