YK110R-JR (1988)
Toyota Stout
(7903-9308)TW ; (7903-9308)15T

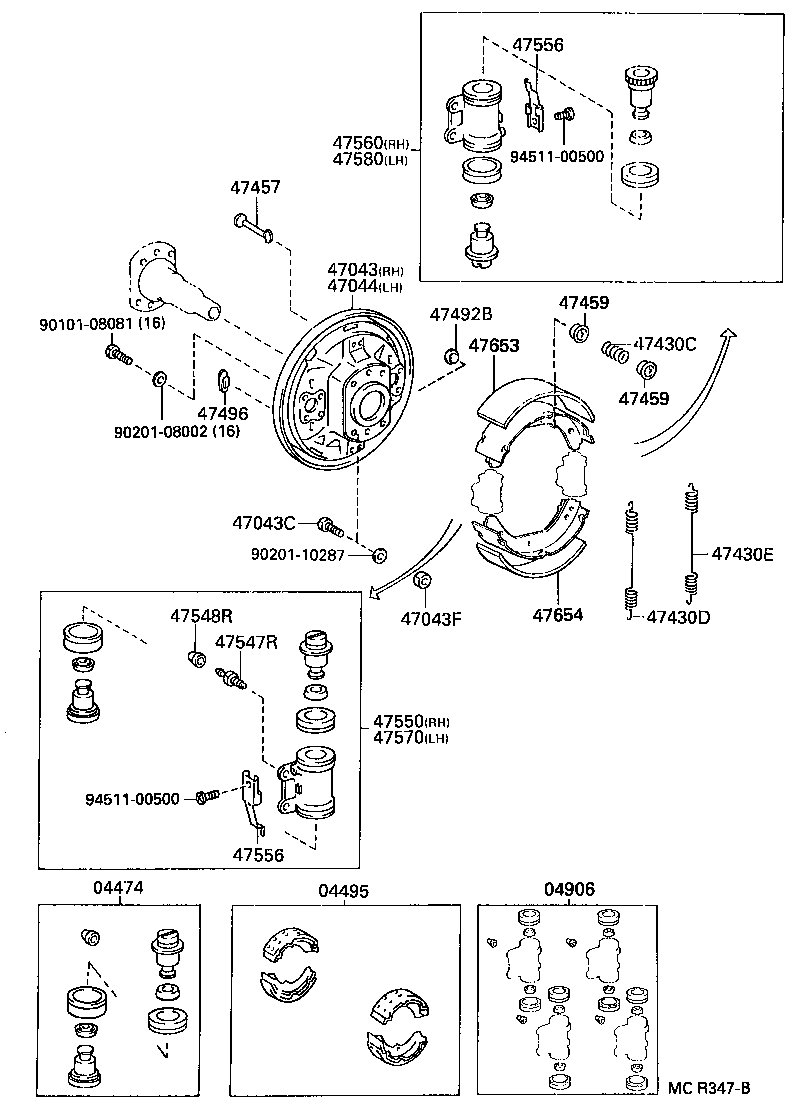

CYLINDER CUP:PLATE TYPE,W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-25020 |
YK110..TW;YK110..15T |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36040 |
YK110..GEN |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-25100 |
YK110..TW;YK110..15T |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-35011 |
YK110..TW;YK110..15T *10-1.25PX23-13 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94110-71000 |
YK110..TW;YK110..15T |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-25070 |
YK110..TW;YK110..15T |
1 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36061 |
YK110..GEN W(LSPV) |
2 | ||
| 47551-36071 |
YK110..GEN |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36061 |
YK110..GEN W(LSPV) |
2 | ||
| 47551-36071 |
YK110..GEN |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36071 |
YK110..GEN |
2 | ||
| 47552-36061 |
YK110..GEN W(LSPV) |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36071 |
YK110..GEN |
2 | ||
| 47552-36061 |
YK110..GEN W(LSPV) |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-35090 |
YK110..15T..GEN |
4 | ||
| 47531-60010 |
YK110..15T..GEN W(LSPV) |
4 | ||
| 47531-60010 |
YK110..TW;YK110..15T |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-35090 |
YK110..15T..GEN |
4 | ||
| 47531-60010 |
YK110..15T..GEN W(LSPV) |
4 | ||
| 47531-60010 |
YK110..TW;YK110..15T |
4 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
YK110..GEN |
8 | ||
| 47533-25010 |
YK110..GEN W(LSPV) |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
YK110..GEN |
8 | ||
| 47533-25010 |
YK110..GEN W(LSPV) |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
YK110..GEN |
8 | ||
| 47533-25010 |
YK110..GEN W(LSPV) |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
YK110..GEN |
8 | ||
| 47533-25010 |
YK110..GEN W(LSPV) |
8 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-25031 |
YK110..15T..GEN W(LSPV) |
1 | ||
| 47550-25012 |
YK110..15T..GEN |
1 | ||
| 47550-25011 |
YK110..15T..GEN |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
YK110..GEN |
4 | ||
| 90501-10759 |
YK110..GEN W(LSPV) |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
YK110..GEN |
4 | ||
| 90501-10759 |
YK110..GEN W(LSPV) |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-25011 |
YK110..15T..GEN |
1 | ||
| 47560-25012 |
YK110..15T..GEN |
1 | ||
| 47560-25031 |
YK110..15T..GEN W(LSPV) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-25011 |
YK110..15T..GEN |
1 | ||
| 47570-25031 |
YK110..15T..GEN W(LSPV) |
1 | ||
| 47570-25012 |
YK110..15T..GEN |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-25031 |
YK110..15T..GEN W(LSPV) |
1 | ||
| 47580-25012 |
YK110..15T..GEN |
1 | ||
| 47580-25011 |
YK110..15T..GEN |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-25011 |
YK110..TW;YK110..15T |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-25011 |
YK110..TW;YK110..15T |
2 | ||
| Common parts | ||||
| 90101-08081 | ||||
| 90149-50001 | ||||
| 90201-08002 | ||||
| 90201-10287 | ||||
| 94511-00500 | ||||
(9305- )
CYLINDER CUP:RING TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-25030 |
YK110..15T..GEN RH |
2 | ||
| 04474-25040 |
YK110..15T..GEN LH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-25020 |
YK110..TW;YK110..15T |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36040 |
YK110..GEN |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-25100 |
YK110..TW;YK110..15T |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-35011 |
YK110..TW;YK110..15T *10-1.25PX23-13 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94110-71000 |
YK110..TW;YK110..15T |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-25070 |
YK110..TW;YK110..15T |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-25031 |
YK110..15T..GEN W(LSPV) |
1 | ||
| 47550-25012 |
YK110..15T..GEN |
1 | ||
| 47550-25011 |
YK110..15T..GEN |
1 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-25011 |
YK110..15T..GEN |
1 | ||
| 47560-25012 |
YK110..15T..GEN |
1 | ||
| 47560-25031 |
YK110..15T..GEN W(LSPV) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-25011 |
YK110..15T..GEN |
1 | ||
| 47570-25031 |
YK110..15T..GEN W(LSPV) |
1 | ||
| 47570-25012 |
YK110..15T..GEN |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-25031 |
YK110..15T..GEN W(LSPV) |
1 | ||
| 47580-25012 |
YK110..15T..GEN |
1 | ||
| 47580-25011 |
YK110..15T..GEN |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-25011 |
YK110..TW;YK110..15T |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-25011 |
YK110..TW;YK110..15T |
2 | ||
| Common parts | ||||
| 90101-08081 | ||||
| 90201-08002 | ||||
| 90201-10287 | ||||
| 94511-00500 | ||||
