RK110R-KRP3 (1979)

Toyota Stout

Production Mar 1979 - Sep 1986
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )TW

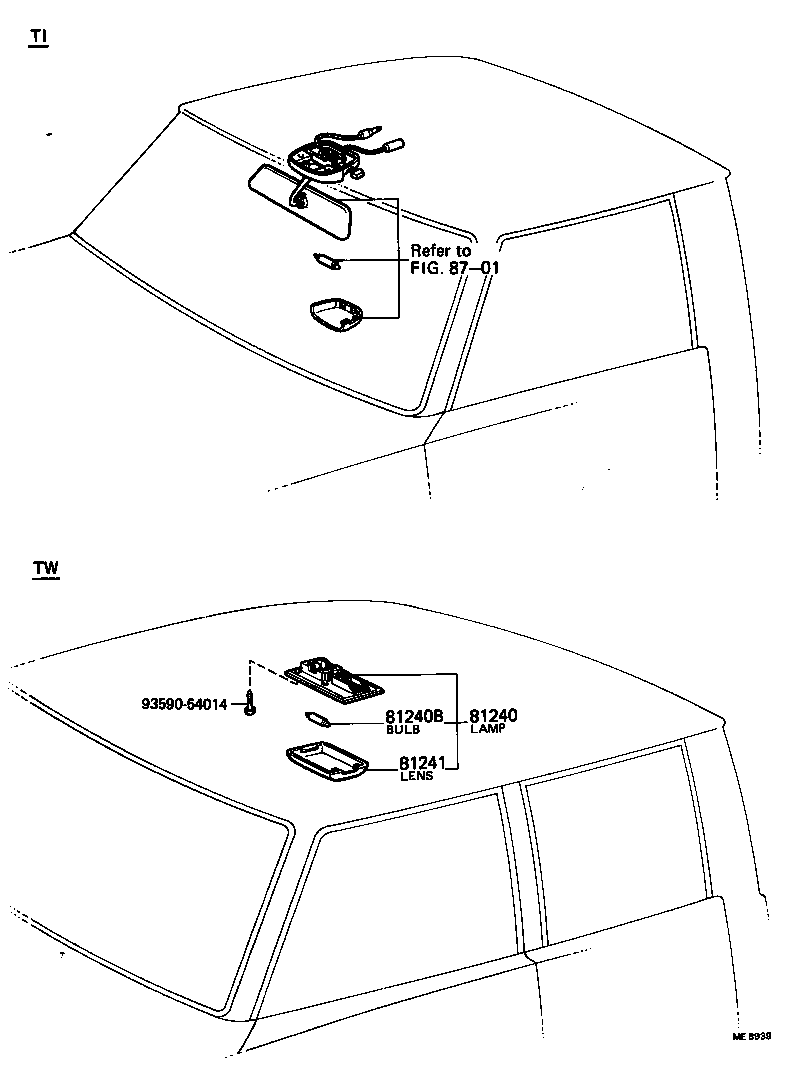

Click highlighted areas on diagram

diagram 81240 81240B 81241 8701 9359054014
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2006003

RK110..TW

GRAY,GRAY

 1
81240-2006005

RK110..TW

BEIGE,BEIGE

 1
81240-2006004

RK110..TW

BLUE,BLUE

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

RK110..TW

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

RK110..TW

 1
Common parts
93590-54014
Linked diagrams
8701
