RK110R-KRP3 (1979)

Toyota Stout

Production Mar 1979 - Sep 1986
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

Click highlighted areas on diagram

diagram 71071B 71073B 71410B 71430B 7158789103 7158789103 71812 71812 71945 72110B 72120B 72301 9010910035 9010910035 9011908080 9011908085 9011908267 9356015025
Part # Description Qty Price
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71071-9513205

RK110..TW

F-VL,T=1.5,BEIGE,BEIGE

 1
71071-9513201

RK110..TW

F-VL,T=1.5,BLACK,BLACK

 1
71071-9513204

RK110..TW

F-VL,T=1.5,BLUE,BLUE

 1
71071-9513605

RK110..TW

VL,T=0.4,BEIGE,BEIGE

 1
71071-9513604

RK110..TW

VL,T=0.4,BLUE,BLUE

 1
71071-9515803

RK110..TW

F-VL,T=1.5,GRAY,GRAY

 1
71071-9515701

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71071-9513601

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71073-9513805

RK110..TW

F-VL,T=1.5,W/*HR,BEIGE,BEIGE

 1
71073-9513705

RK110..TW

F-VL,T=1.5,W/O *HR,BEIGE,BEIGE

 1
71073-9513901

RK110..TW

VL,T=0.4,W/*HR,BLACK,BLACK

 1
71073-9513704

RK110..TW

F-VL,T=1.5,W/O *HR,BLUE,BLUE

 1
71073-9513804

RK110..TW

F-VL,T=1.5,W/*HR,BLUE,BLUE

 1
71073-9513701

RK110..TW

F-VL,T=1.5,W/O *HR,BLACK,BLACK

 1
71073-9513905

RK110..TW

VL,T=0.4,W/*HR,BEIGE,BEIGE

 1
71073-9514004

RK110..TW

VL,T=0.4,W/O *HR,BLUE,BLUE

 1
71073-9513801

RK110..TW

F-VL,T=1.5,W/*HR,BLACK,BLACK

 1
71073-9515801

RK110..TW

VL,T=0.4,W/O *HR,BLACK,BLACK

 1
71073-9516103

RK110..TW

F-VL,T=1.5,W/*HR,GRAY,GRAY

 1
71073-9513904

RK110..TW

VL,T=0.4,W/*HR,BLUE,BLUE

 1
71073-9514005

RK110..TW

VL,T=0.4,W/O *HR,BEIGE,BEIGE

 1
71073-9515901

RK110..TW

VL,T=0.4,W/*HR,BLACK,BLACK

 1
71073-9514001

RK110..TW

VL,T=0.4,W/O *HR,BLACK,BLACK

 1
71073-9516003

RK110..TW

F-VL,T=1.5,W/O *HR,GRAY,GRAY

 1
71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71410-9513101

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71410-9513104

RK110..TW

VL,T=0.4,BLUE,BLUE

 1
71410-9513204

RK110..TW

F-VL,T=1.5,BLUE,BLUE

 1
71410-9514903

RK110..TW

F-VL,T=1.5,GRAY,GRAY

 1
71410-9513201

RK110..TW

F-VL,T=1.5,BLACK,BLACK

 1
71410-9513105

RK110..TW

VL,T=0.4,BEIGE,BEIGE

 1
71410-9514801

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71410-9513205

RK110..TW

F-VL,T=1.5,BEIGE,BEIGE

 1
71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71430-9513501

RK110..TW

F-VL,T=1.5,W/*HR,BLACK,BLACK

 1
71430-9513405

RK110..TW

F-VL,T=1.5,W/O *HR,BEIGE,BEIGE

 1
71430-9513504

RK110..TW

F-VL,T=1.5,W/*HR,BLUE,BLUE

 1
71430-9513505

RK110..TW

F-VL,T=1.5,W/*HR,BEIGE,BEIGE

 1
71430-9513601

RK110..TW

VL,T=0.4,W/*HR,BLACK,BLACK

 1
71430-9513401

RK110..TW

F-VL,T=1.5,W/O *HR,BLACK,BLACK

 1
71430-9513701

RK110..TW

VL,T=0.4,W/O *HR,BLACK,BLACK

 1
71430-9513605

RK110..TW

VL,T=0.4,W/*HR,BEIGE,BEIGE

 1
71430-9514701

RK110..TW

VL,T=0.4,W/O *HR,BLACK,BLACK

 1
71430-9513705

RK110..TW

VL,T=0.4,W/O *HR,BEIGE,BEIGE

 1
71430-9513404

RK110..TW

F-VL,T=1.5,W/O *HR,BLUE,BLUE

 1
71430-9514801

RK110..TW

VL,T=0.4,W/*HR,BLACK,BLACK

 1
71430-9513604

RK110..TW

VL,T=0.4,W/*HR,BLUE,BLUE

 1
71430-9513704

RK110..TW

VL,T=0.4,W/O *HR,BLUE,BLUE

 1
71430-9514903

RK110..TW

F-VL,T=1.5,W/O *HR,GRAY,GRAY

 1
71430-9515003

RK110..TW

F-VL,T=1.5,W/*HR,GRAY,GRAY

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

RK110

 33
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

RK110

 33
72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72110-95110

RK110..RHD

 1
72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
72120-95110

RK110..RHD

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-95111

RK110

 1
Common parts
71587-89103
90109-10035
90119-08080
90119-08085
90119-08267
93560-15025

(7903- )TW

Click highlighted areas on diagram

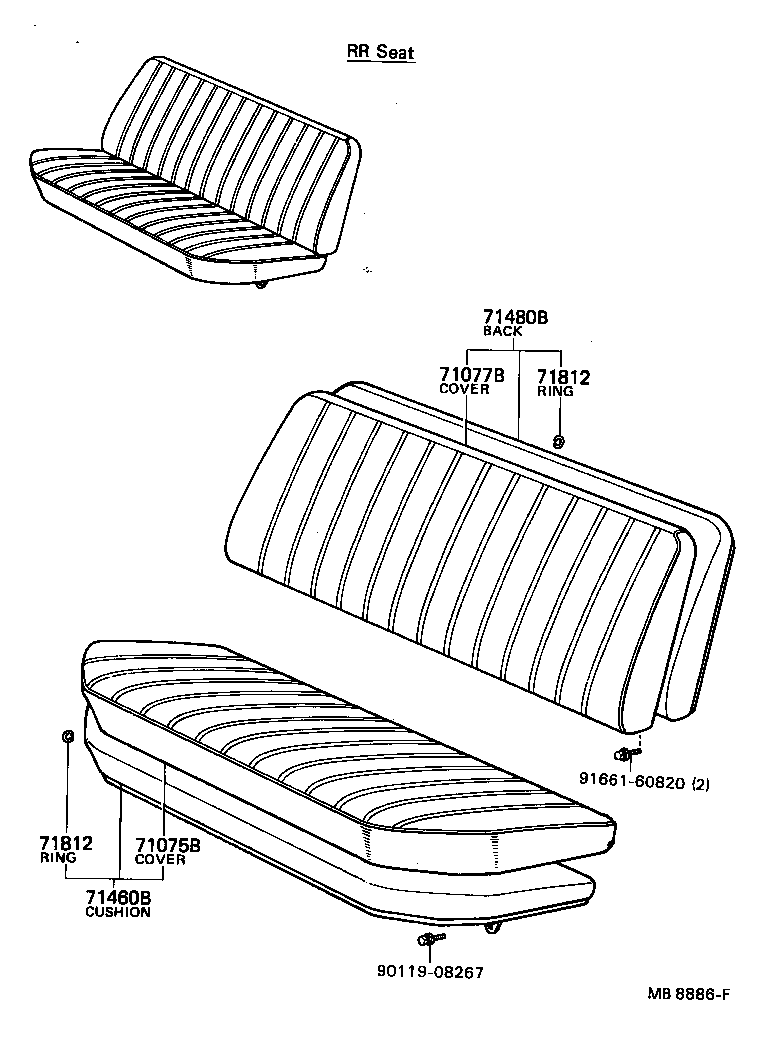

diagram 71075B 71077B 71460B 71480B 71812 71812 9011908267 9166160820
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9511001

RK110..TW

F-VL,T=1.5,BLACK,BLACK

 1
71075-9511004

RK110..TW

F-VL,T=1.5,BLUE,BLUE

 1
71075-9511005

RK110..TW

F-VL,T=1.5,BEIGE,BEIGE

 1
71075-9511101

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71075-9511503

RK110..TW

F-VL,T=1.5,GRAY,GRAY

 1
71075-9511104

RK110..TW

VL,T=0.4,BLUE,BLUE

 1
71075-9511105

RK110..TW

VL,T=0.4,BEIGE,BEIGE

 1
71075-9511401

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-9511005

RK110..TW

F-VL,T=1.5,BEIGE,BEIGE

 1
71077-9511104

RK110..TW

VL,T=0.4,BLUE,BLUE

 1
71077-9511101

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71077-9511401

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71077-9511004

RK110..TW

F-VL,T=1.5,BLUE,BLUE

 1
71077-9511503

RK110..TW

F-VL,T=1.5,GRAY,GRAY

 1
71077-9511001

RK110..TW

F-VL,T=1.5,BLACK,BLACK

 1
71077-9511105

RK110..TW

VL,T=0.4,BEIGE,BEIGE

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9511005

RK110..TW

F-VL,T=1.5,BEIGE,BEIGE

 1
71460-9511004

RK110..TW

F-VL,T=1.5,BLUE,BLUE

 1
71460-9511503

RK110..TW

F-VL,T=1.5,GRAY,GRAY

 1
71460-9511401

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71460-9511001

RK110..TW

F-VL,T=1.5,BLACK,BLACK

 1
71460-9511104

RK110..TW

VL,T=0.4,BLUE,BLUE

 1
71460-9511101

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71460-9511105

RK110..TW

VL,T=0.4,BEIGE,BEIGE

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-9511001

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71480-9511005

RK110..TW

VL,T=0.4,BEIGE,BEIGE

 1
71480-9511004

RK110..TW

VL,T=0.4,BLUE,BLUE

 1
71480-9511401

RK110..TW

VL,T=0.4,BLACK,BLACK

 1
71480-9511104

RK110..TW

F-VL,T=1.5,BLUE,BLUE

 1
71480-9511101

RK110..TW

F-VL,T=1.5,BLACK,BLACK

 1
71480-9511105

RK110..TW

F-VL,T=1.5,BEIGE,BEIGE

 1
71480-9511503

RK110..TW

F-VL,T=1.5,GRAY,GRAY

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

RK110

 33
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

RK110

 33
Common parts
90119-08267
91661-60820
