RK110R-KRP3 (1979)

Toyota Stout

Production Mar 1979 - Sep 1986
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )TW

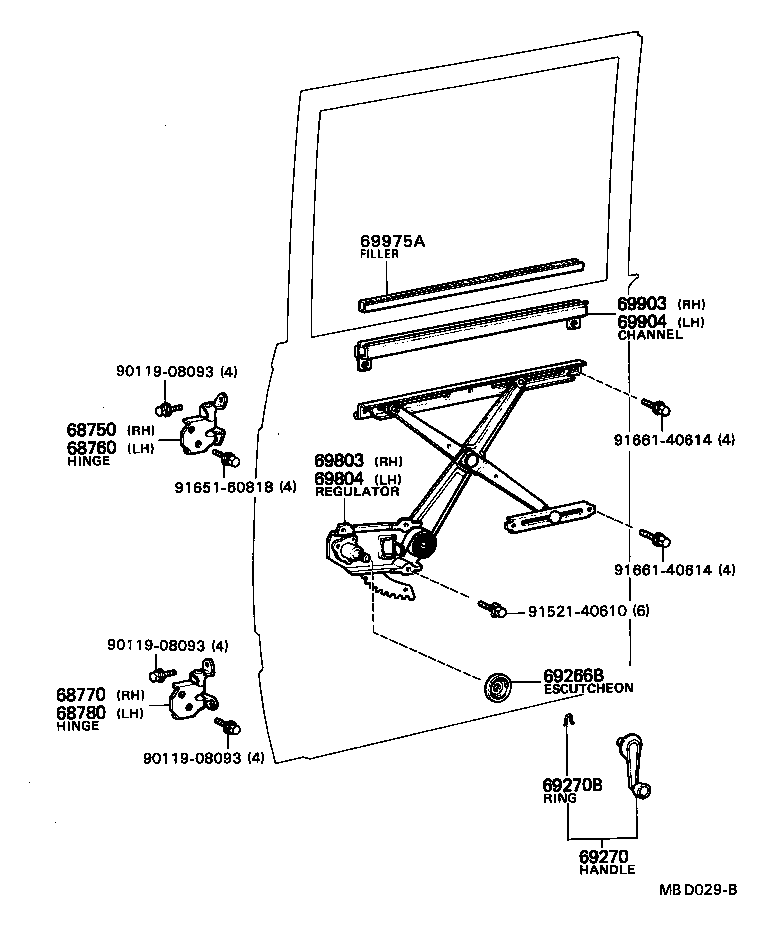

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69266B 69270 69270B 69803 69804 69903 69904 69975A 9011908093 9011908093 9011908093 9152140610 9165160818 9166140614 9166140614
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-89101

RK110..TW

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-89101

RK110..TW

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68760-89101

RK110..TW

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68750-89101

RK110..TW

 1
69266B - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)
69266-22010

RK110..TW

 2
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1004005

RK110..TW

BEIGE,BEIGE

 2
69260-1004004

RK110..TW

BLUE,BLUE

 2
69260-1004001

RK110..TW

BLACK,BLACK

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

RK110..TW

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-89101

RK110..TW

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-89101

RK110..TW

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906-89102

RK110..TW

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-89102

RK110..TW

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-95110

RK110..TW

 2
Common parts
90119-08093
91521-40610
91651-60818
91661-40614
