RK110R-KRP3 (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )TW

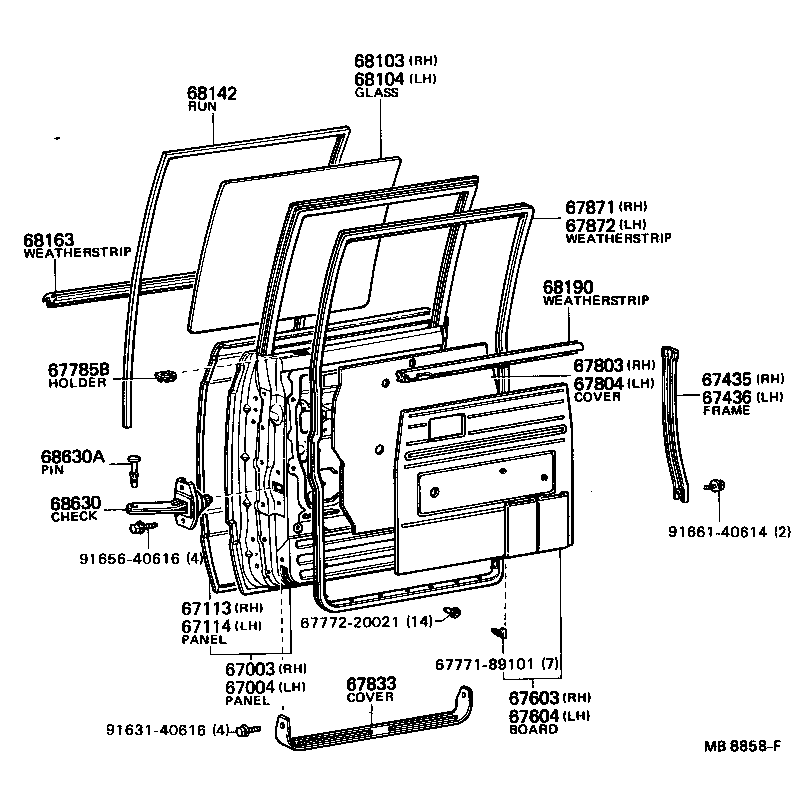

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-89101 |
RK110..TW |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-89101 |
RK110..TW |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-89101 |
RK110..TW |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-89101 |
RK110..TW |
1 | ||
| 67435 - FRAME, REAR DOOR WINDOW LOWER, RH | ||||
| 67447-89101 |
RK110..TW |
1 | ||
| 67436 - FRAME, REAR DOOR WINDOW, LOWER LH | ||||
| 67448-89102 |
RK110..TW |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-8910101 |
RK110..TW BLACK,BLACK |
1 | ||
| 67630-8910104 |
RK110..TW BLUE,BLUE |
1 | ||
| 67630-8910301 |
RK110..TW BLACK,BLACK |
1 | ||
| 67630-8910105 |
RK110..TW BEIGE,BEIGE |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-8910104 |
RK110..TW BLUE,BLUE |
1 | ||
| 67640-8910105 |
RK110..TW BEIGE,BEIGE |
1 | ||
| 67640-8910101 |
RK110..TW BLACK,BLACK |
1 | ||
| 67640-8910301 |
RK110..TW BLACK,BLACK |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-2003001 |
RK110..TW BLACK,BLACK |
2 | ||
| 69751-2003004 |
RK110..TW BLUE,BLUE |
2 | ||
| 69751-2003005 |
RK110..TW BEIGE,BEIGE |
2 | ||
| 69751-2003101 |
RK110..TW BLACK,BLACK |
2 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67831-89105 |
RK110..TW |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67831-89105 |
RK110..TW |
1 | ||
| 67833 - COVER, REAR DOOR SERVICE HOLE | ||||
| 67842-89101 |
RK110..TW |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-89101 |
RK110..TW |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-89101 |
RK110..TW |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-89101 |
RK110..TW *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68113-89102 |
RK110..TW *TT,T=4.0,*TT,T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68113-89102 |
RK110..TW *TT,T=4.0,*TT,T=4.0 |
1 | ||
| 68113-89101 |
RK110..TW *TEM,T=4.0,*TEM,T=4.0 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-89101 |
RK110..TW |
2 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68160-89106 |
RK110..TW |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-89101 |
RK110..TW RH |
1 | ||
| 68240-89101 |
RK110..TW LH |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-89101 |
RK110..TW |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-22010 |
RK110..TW |
2 | ||
| Common parts | ||||
| 67771-89101 | ||||
| 67772-20021 | ||||
| 91631-40616 | ||||
| 91656-40616 | ||||
| 91661-40614 | ||||
