RK110R-KRP3 (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )TW

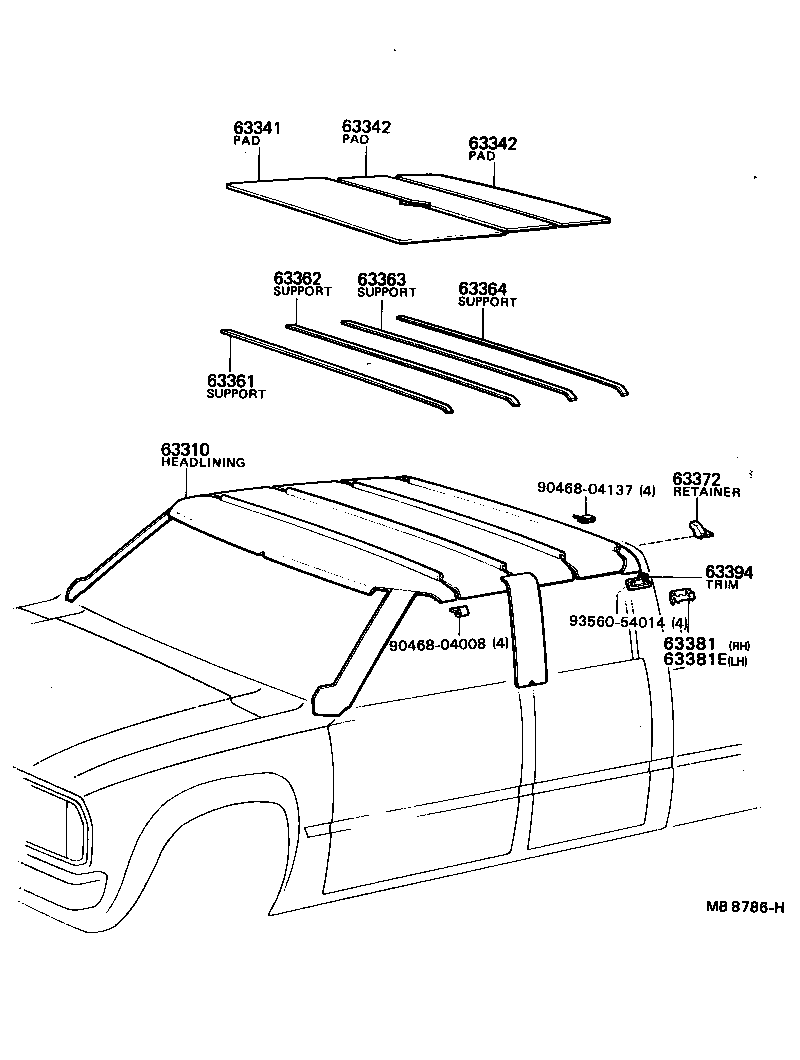

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63311-8910303 |
RK110..TW GRAY,GRAY |
1 | ||
| 63311-8910305 |
RK110..TW LIGHT BEIGE,BEIGE |
1 | ||
| 63311-8910304 |
RK110..TW LIGHT BLUE,BLUE |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-89108 |
RK110 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-89109 |
RK110..TW |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-89109 |
RK110..TW |
2 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-89105 |
RK110..TW |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63361-89106 |
RK110..TW |
1 | ||
| 63363 - SUPPORT, ROOF HEADLINING, NO.3 | ||||
| 63361-89101 |
RK110..TW |
1 | ||
| 63364 - SUPPORT, ROOF HEADLINING, NO.4 | ||||
| 63361-89104 |
RK110..TW |
1 | ||
| 63372 - RETAINER, HEADLINING SUPPORT | ||||
| 63374-89101 |
RK110..TW LH |
1 | ||
| 63371-89101 |
RK110..TW RH |
1 | ||
| 63381 - RETAINER, HEADLINING, FRONT | ||||
| 63381-95110 |
RK110..TW |
2 | ||
| 63394 - TRIM, ROOF HEADLINING | ||||
| 63393-8910104 |
RK110..TW RH,LIGHT BLUE,BLUE |
1 | ||
| 63394-8910103 |
RK110..TW LH,GRAY,GRAY |
1 | ||
| 63393-8910105 |
RK110..TW RH,LIGHT BEIGE,BEIGE |
1 | ||
| 63393-8910103 |
RK110..TW RH,GRAY,GRAY |
1 | ||
| 63394-8910105 |
RK110..TW LH,LIGHT BEIGE,BEIGE |
1 | ||
| 63394-8910104 |
RK110..TW LH,LIGHT BLUE,BLUE |
1 | ||
| Common parts | ||||
| 90468-04008 | ||||
| 90468-04137 | ||||
| 93560-54014 | ||||
